RockJock Johnny Joint Rod End 2in Narrow Weld-On Weld-On 2in X .500in Ball Ext. Greased
Sale

RockJock Johnny Joint Rod End 2in Narrow Weld-On Weld-On 2in X .500in Ball Ext. Greased

RockJock
SKU:
CE-9112NP-12
|
UPC:
810038151380
$57.00 $51.30
(No reviews yet)
Width:
4.00 (in)
Height:
4.00 (in)
Depth:
4.00 (in)
Current Stock:

Out of stock

Out of Stock
Description

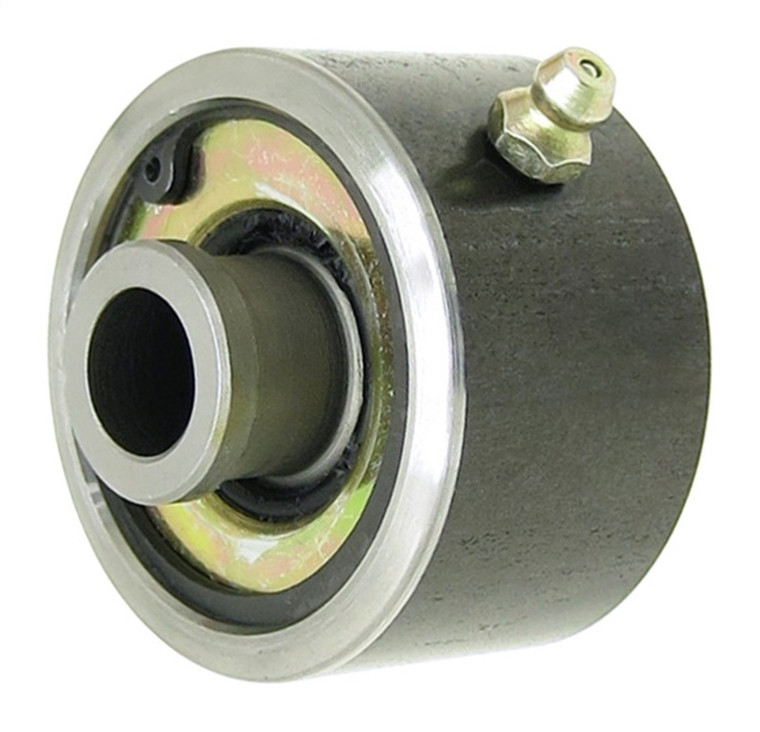

RockJocks narrow weld-on Johnny Joints(R) for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 in. o.d. narrow body and features a 2 in. mounting width and a .500 in. thru bolt hole. Narrow Johnny Joint? Rod End; 2 in.; Externally Greased-1/2 in. Thru Hole;
