RockJock Johnny Joint Rod End 2 1/2in Forged 2.365in X .562in Ball 1 1/4in-12 LH Thread Shank
Pickup available at DEO Web Site Inventory
Usually ready in 24 hours

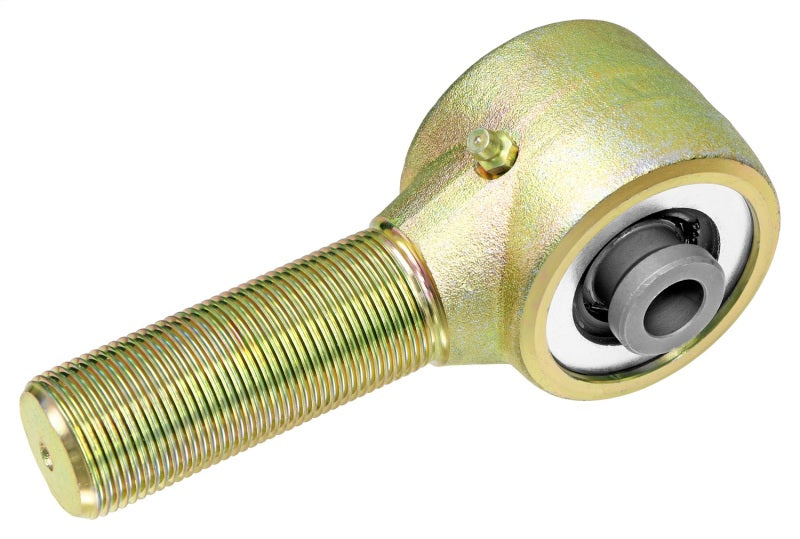

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 left hand threads on the shank, and a 2.365 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2.5 in.; 2.365 in. Mounting Width; 1.25 in-12 LH Threaded Shank; Externally Greased; w/o Bolt; 0.5625 in. Thru Bolt Hole; Each;
- Zerk Fitting For External Greasing - No Bolt Incl
