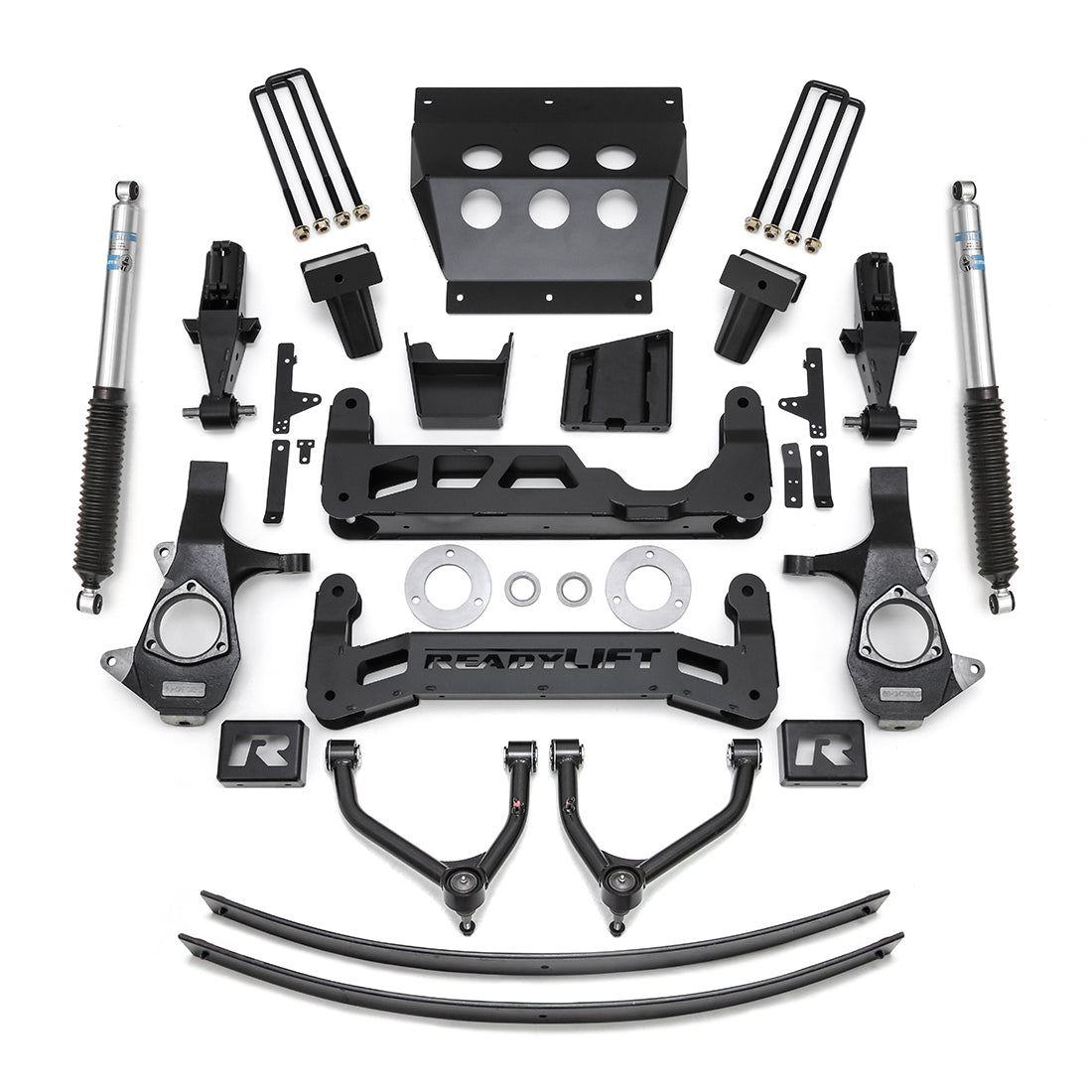

ReadyLift 9 Inch Lift Kit 2014-2018 Silverado/Sierra 1500 W/ Cast Steel Suspension ReadyLIFT

ReadyLIFT introduces a new 9-inch lift kit, the 44-3491, for 2014-2018 Chevy Silverado and GMC Sierra 1500 trucks, compatible with both standard and front MagneRide suspension systems. This kit, suitable for trucks with the factory Forged Steel front suspension, features new tubular upper control arms.

It preserves the factory turning radius, minimally increases track width by less than 0.5-Inch per side, and accommodates up to a 37-Inch tire on a 9-Inch wide wheel with -12 offset. The kit includes a clam-shell style lower strut extension that maintains the use of factory struts and avoids strut rotation.

These brackets use TCT lower bushings for a precise pivot point, ensuring the factory ride quality. The new tubular upper control arms with TCT pivot bushings provide enhanced strength compared to OE stamped steel arms.

The kit's front and rear cross members, as well as the full-width front skid plate, are made from robust 3/16-Inch plate steel. It also features a 1/4-inch boxed plate steel differential drop brackets with double gusset and boxed center rib to handle front differential torsional twisting.

The rear lift is achieved with a rear add-a-leaf spring and 3/16-inch thick plate steel rear lift blocks with built-in bump stop landings and an offset pin design to correctly center the axle. The lift blocks are angled to maintain proper pinion angle.

Included are premium extended length Bilstein rear shocks. Note: Suitable for 2WD or 4WD models only, not AWD.

It fits up to a 37-Inch tall off-road tire with specified wheel dimensions. Minor trimming may be required for some aggressive tires.

Not recommended for GMC Denali 1500 with Rear MagneRide or models with Rear MagneRide. Front MagneRide compatibility only.

Comes with ReadyLIFT ReadyGuard Powertrain Warranty.

Features and Benefits:

• Fits 2014-2016 GM 1500 trucks with OE Forged Steel front suspension
• Allows for up to a 37-Inch tall off road tire
• Requires at least a 9 inch wide wheel with 12 offset
• Retains factory turning radius, ride and handling
• Works with Front MagneRide
• Includes premium Bilstein shocks
• Includes new tubular steel upper control arms with TCT pivot bushings
• Before purchasing What Control Arms Does Your Truck Have?
• Note: Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.

Details:

• Fitment: Direct Fitment
• Front Lift Component: Spacer
• Front Lift Height: 9.0 Inch
• Front Shocks: None
• Front or Rear: Front and Rear
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Lift Height: 9.0 Inch
• Material: Steel
• Max Tire Size: 37 Inch
• Rear Lift Component: Block and U-bolt with add a leafs
• Rear Lift Height: 9.0 Inch
• Rear Shocks: Bilstein
• Shocks Included: Yes
