ReadyLift 6 Inch Big Lift Kit 2019-2024 Ram 3500 HD High Output Diesel 4WD ReadyLIFT

The new Ram HD trucks are more popular than ever and the ReadyLIFT 6-Inch lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners?

How about engineering a 6-Inch solution for the RAM 3500 HD trucks? That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle?

Well, that's exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission cross-member.

Why go to all that trouble to achieve 6-Inch Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.

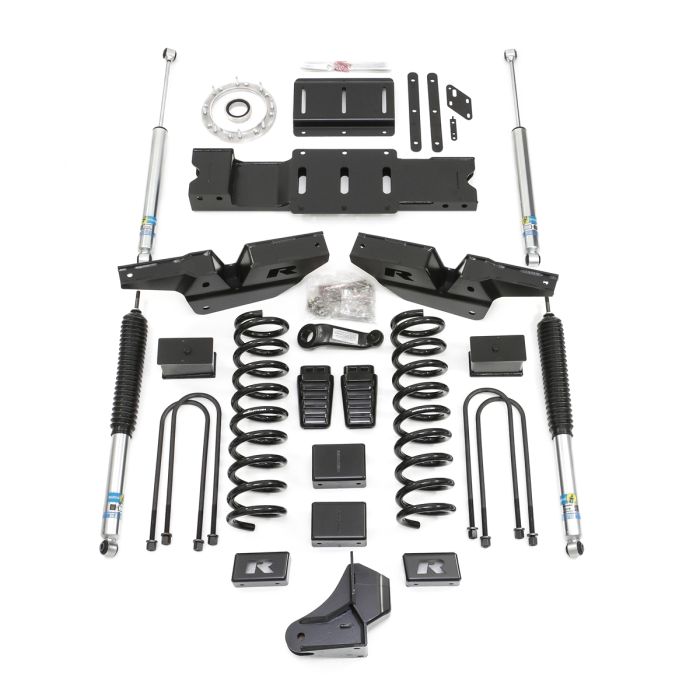

Our new 49-19620 6-Inch lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS a heavy-duty transfer case clocking [indexing] ring and new transmission cross-member-positioning the transmission and pinion position for a smooth driving experience on or off-road. Kit 49-19620 includes the new DIS re-positioning components, heavy-duty and great riding 6-Inch lift front springs, 5-Inch lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Bilstein 5100 series front/rear shocks. *Kit will not fit any models with the standard output 6.7L diesel motor, Hemi Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.

Features and Benefits:

• 2019-2023 Ram 3500 4WD HD 6-Inch lift kit
• Includes 6-Inch front lift springs and 5-Inch rear spacers
• Fabricated steel radius arm drop brackets
• Track bar drop bracket
• New pitman arm
• Sway bar drop brackets
• Longer bump stops
• (4) Bilstein 5100 series shocks
• All-new DIS transfer case clocking ring kit
• New transmission cross-member
• Does not work with Hemi Gasoline engine
• Not compatible with dually models
• Not compatible with Classic models
• Not compatible with automaticleveling rear air suspension models
• Only available for 3500 HD High Output Motor

Details:

• Fitment: Direct Fitment
• Front Lift Component: Coil Spring
• Front Lift Height: 6.0 Inch
• Front Shocks: Bilstein 5100
• Front or Rear: Front and Rear
• Fuel Type: Diesel
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Lift Height: 6.0 Inch
• Max Tire Size: 37 Inch
• Rear Lift Component: Block
• Rear Lift Height: 4.0 Inch
• Rear Shocks: Bilstein 5100
• Shocks Included: Yes
