MaxTrac 07-16 GM C1500 2WD w/Cast Steel Susp. 3in/1in Spindle Lift Kit w/MaxTrac Shocks
Pickup available at DEO Web Site Inventory
Usually ready in 24 hours
The Maxtrac Suspension 3-inch lift for the GM Full size platform is a cost-effective way to lift your 2WD wheel drive truck without breaking the budget. We do this by taking a factory height spindle and lowering the wheel hub position, which in turn raises the vehicle up while maintaining a factory-like ride and turning radius. By doing this, you eliminate the need to install expensive crossmembers that are labor intensive and require factory frame cuts. The spindles come with extended, DOT compliant, stainless steel braided brake lines. The rear lift comes with Maxtrac twin-tube shocks, lift blocks and U-bolts. The end result, you achieve a lifted truck with a leveled stance for a fraction of the cost of a standard 4WD kit.

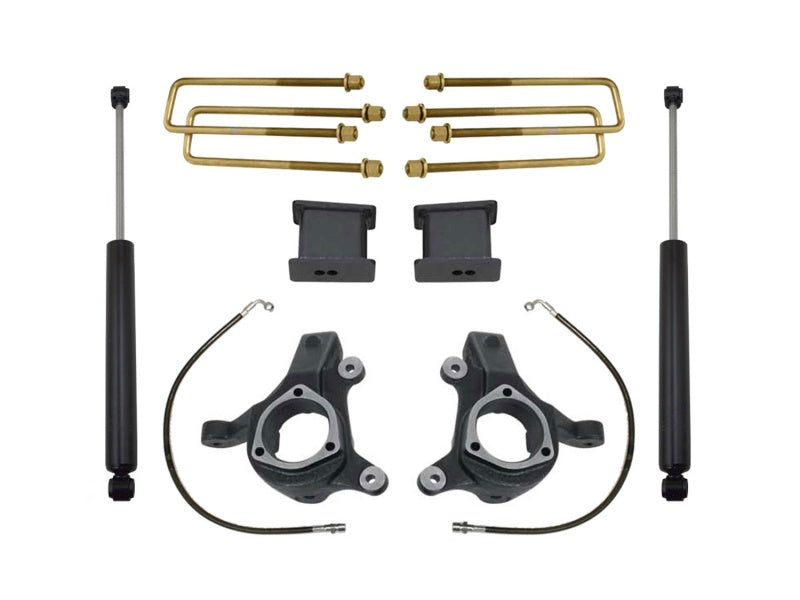

Suspension Lift Kit w/Shocks; 3 in. Front Lift; 2 in. Rear Lift; Incl. Front Spindles w/Brake Lines/Rear Blocks/Rear U-Bolts/Rear MaxTrac Shocks;
Complete 3in. front 2in. rear lift kit which includes our 3in. front lift spindles w/brake lines; rear kit includes 2in. rear lift blocks w/U-bolts and qty (2) rear Maxtrac shocks.
- Track Width Increases .5 in. Per Side
