SKU: 110612-02

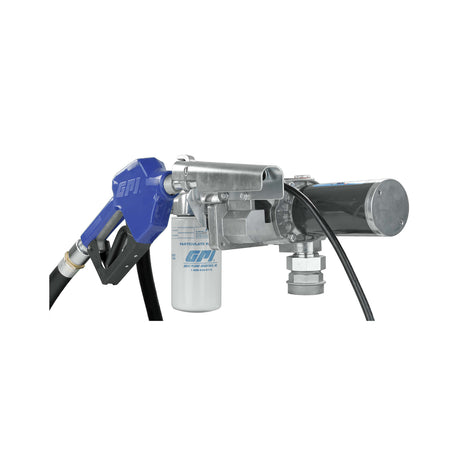

Great Plain Industries 18 GPM 12V Fuel Transfer Pump GPI® M-180 Series

$742.99
By Great Plain Industries GPI

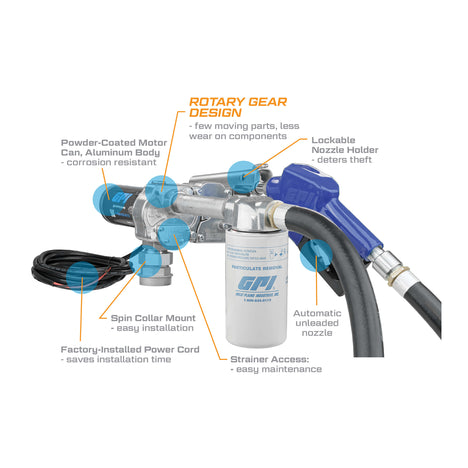

The GPI M-180 Series Fuel Transfer Pump provides longer run times and reliable performance year after year. Delivering flow rates up to 18 GPM (69 L/min), the M-180S is the pump of choice for agricultural, automotive, and construction applications dispensing gasoline, diesel fuel, and kerosene. Available in a wide selection of configurations with an automatic or manual nozzle, and filter kit combinations. The M-180 Series is durable, manufactured from high-quality die-cast aluminum, easy to use, and engineered to last featuring a self-priming rotary gear design.

  • Includes an 18 GPM 10 micron, 1-12 UNF particulate filter that removes debris from fuel that may damage your equipment.
  • Higher flow rate reduces time spent refueling.
  • Convenient spin collar for easy installation; Overload protected motor extends motor life.
  • Powder-coated motor can and light-weight aluminum body provides corrosion resistance and reduces tank stress.
  • Lockable nozzle holder protects your investment and deters theft.
  • Designed for permanent mounting on vented storage tanks.
  • Low profile design does not block line of vision.
  • UL Listed Motor
Max. Flow Rate 18 GPM (69 L/min)
Voltage Input 12V (DC)
Horsepower 0.25
Technology Rotary Gear
Amps Rated 20 amps
Duty Cycle 30 min on/30 min off
Power Cord 18 ft. (5.5m), 12/2 AWG, Factory Installed
Max. Discharge Pressure UP TO 15 PSI (1.03 Bar)
Operating Temperature -20° F to 125° F (-29° C to 52° C)
Suction Lift Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
Discharge Lift Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
Pump Housing Material Corrosion-Resistant Diecast Aluminum
Wetted Materials Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
Mounting Type/Thread Spin Collar, 2in. MNPT
Suction Pipe Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
Inlet 1 in. FNPT
Outlet 1-inch FNPT
Dispensing Hose 12 ft. (3.7m) x 1 in. MNPT
Nozzle 3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded
Nozzle Holder Type Lockable

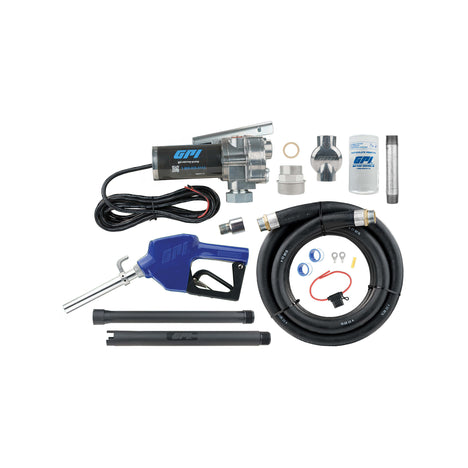

What's in the Box M-180S-AU w/Filter Fuel transfer pump, Automatic shut-off, Unleaded nozzle, Dispensing hose, Factory-installed power cord, ,Telescoping suction pipe, Tank adapter, Fuse assembly, Particulate filter, Adapter and installation kit, Owners manual
Warranty Limited Lifetime Warranty
UPC 031401000290
Approvals cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
