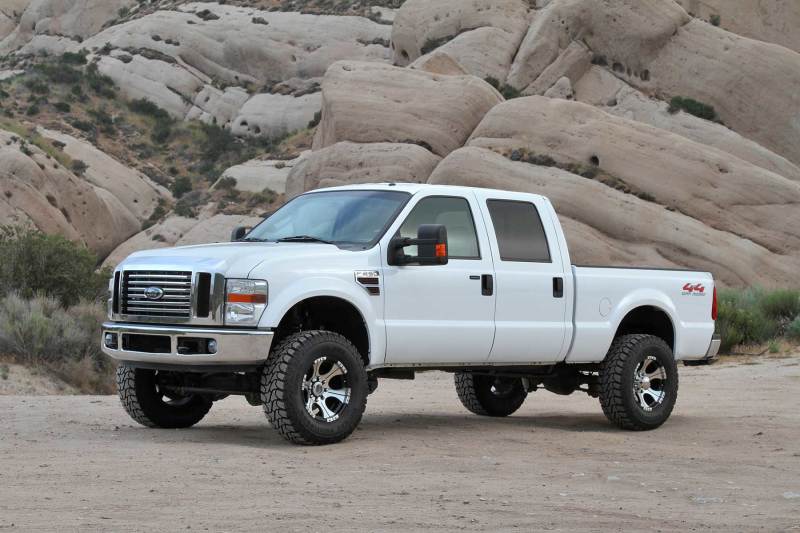

Fabtech 08-16 Ford F250/350/450 4WD 8 Lug 4in Budget Sys w/Perf Shks

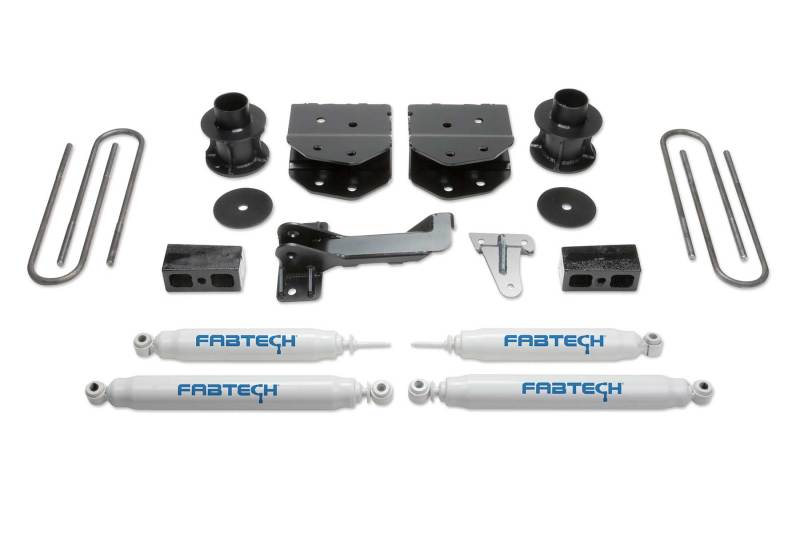

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4 Budget System. The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35 tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.
Budget Lift System w/Shock; w/Performance Shocks; 4 in. Lift;

• Drop Brackets For Proper Caster w/Increased Height


• Retains Factory Front Coil Springs For Stock Ride


• Trac Bar Works w/Factory Pitman Arm


• Includes Driveshaft Carrier Bearing


• Trac Bar Relocated To Center Axle


• Ample Clearance For 33 in. Tires
