Fabtech 05-07 Ford F250 4WD w/Factory Overload 6in Rad Arm Sys w/Dlss 4.0 C/O& Rr Dlss
Pickup currently unavailable at DEO Web Site Inventory

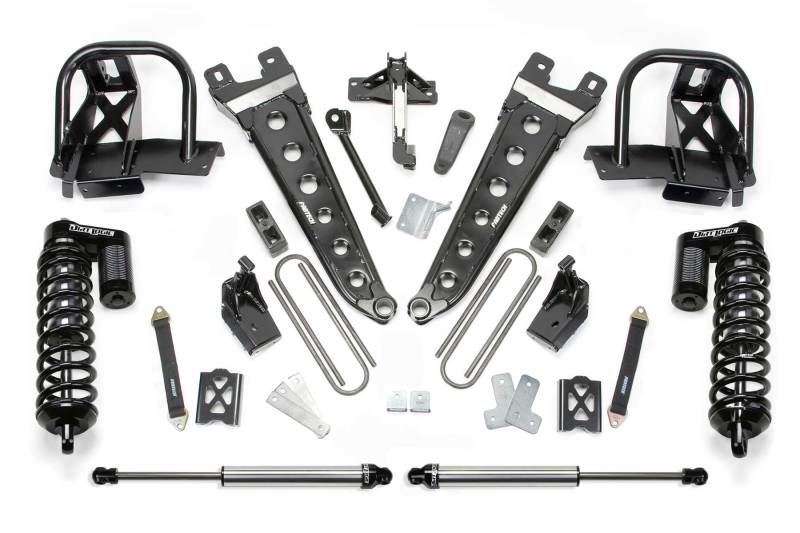

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift comes from our Dirt Logic 4.0 Stainless Steel Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.
Radius Arm Lift System; w/DLSS Shocks; 6 in. Lift; w/Factory Overload; 4.0 Coilovers;
TIRE SIZE - 315/70R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; WILL NOT WORK ON MODELS WITH DIGITAL CLIMATE CONTROL.
- Adjustable Alignment Cam Allows Caster Adjustment
- Unsurpassed Strength And Performance
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
