SKU: BDS2307

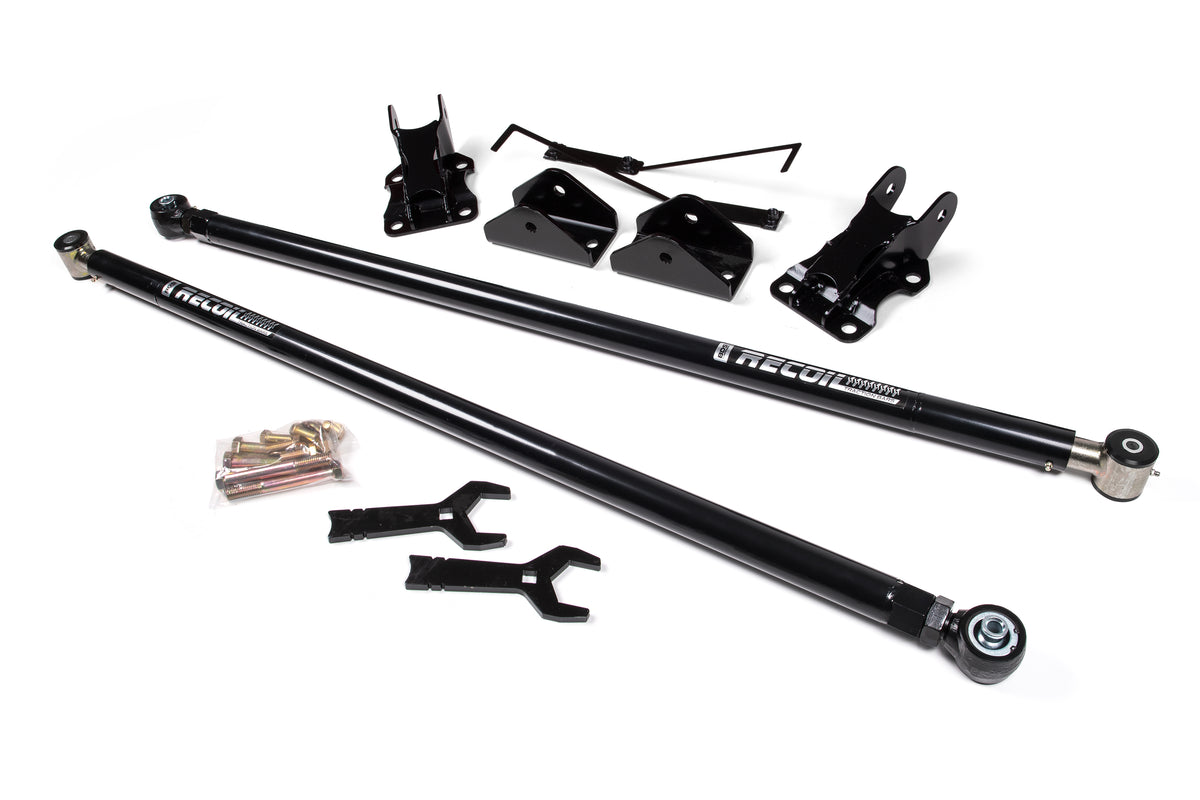

BDS Suspension Recoil Traction Bar Kit Ford F150 21-24 (BDS2307)

Name: BDS Suspension Recoil Traction Bar Kit Ford F150 21-24 (BDS2307)
Brand: BDS Suspension
SKU: BDS2307
Price: 917.90 USD
Availability: OutOfStock

$917.90

By BDS Suspension

Improve traction on your 2021-2024 Ford F150 4WD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap.

Full float design for bind-free performance and can be installed with a range of lift heights.

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut.

Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction.

At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

Fits 0-6 inch of rear lift
Will NOT work with Standard Cab / Short Box
Will work with Ford Raptor
Adjustable axle wrap control using dual-stage resistance springs
Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
Spring preload can be adjusted on the vehicle without disassembling the traction bar
Traction bar ends are greaseable and rebuildable
Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Install Time:

3-4 hrs Moderately Easy

Kit Components

Includes one BDS123409, Recoil Traction Bar Box Kit, UPC Code 711745604230
Includes one BDS123427, 2021-2024 Ford F150 Recoil Mounting Kit, UPC Code 711745604322

Specifications

Brand	BDS Suspension
Part Number	BDS2307
UPC	840416415506
Sold As	Kit
Country of Origin	USA
Warranty	Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes	2
Package Size (L x W x H)	66 x 7.5 x 3.5 in 21 x 8 x 5 in
Package Weight	74.65 lb
