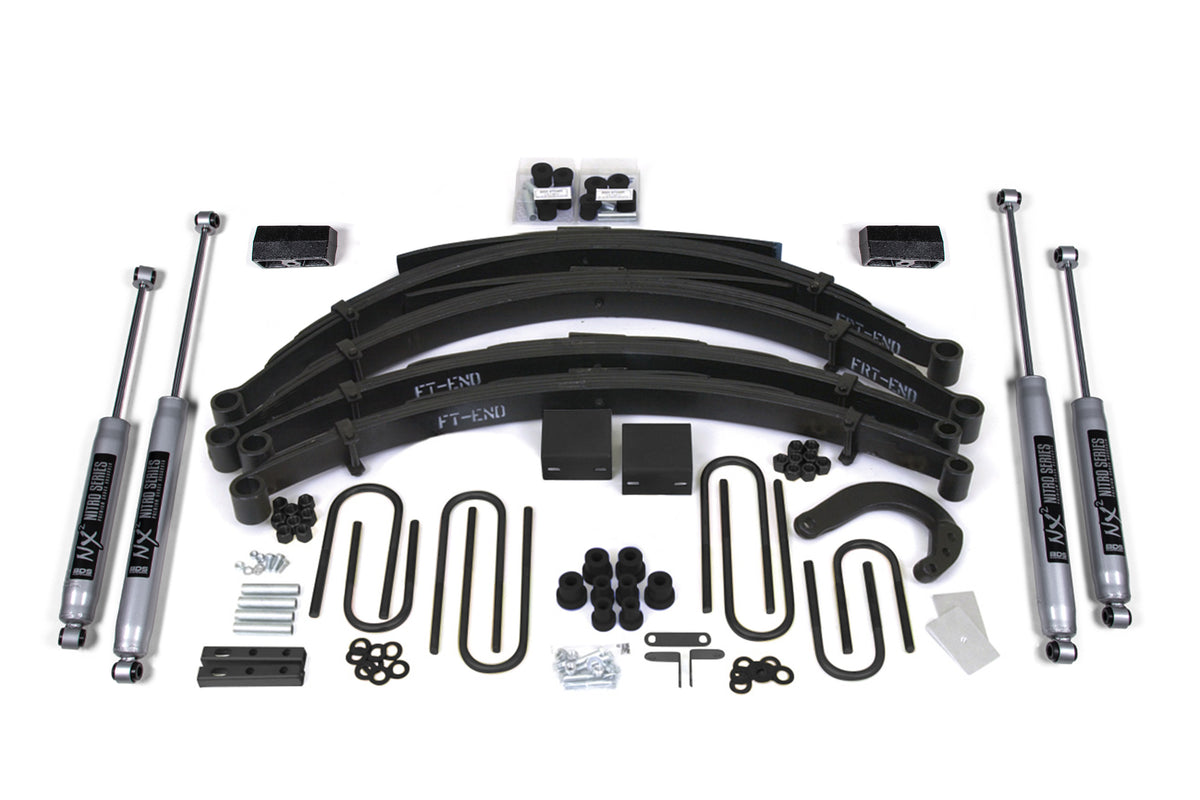

BDS Suspension 8 Inch Lift Kit Chevy/GMC 3/4 Ton Truck/Suburban 77-87 4WD Fox 2.0 Performance Shocks (BDS134FS)

Go big with your 1977-1987 Chevy and GMC 3/4 ton truck or SUV to raise the bar to new heights with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm and 3 inch steering block for steering correction, brake line brackets, sway bar drop brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a set of Glide-Ride leaf springs for the ultimate performance on and off road, new u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Springs
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

1. Both driveshafts may need to be lengthened.
2. Aftermarket extended brake lines are required for installation.
3. Exhaust modification may be required to clear the front driveshaft.
4. Emergency brake cable extension kit may be required.
5. 001608 come with OE style rubber bushings installed.
6. The 3/4 ton commonly came with a factory 56 inch eye to eye rear leaf spring. However, some were produced with a 52 inch rear spring. This kit will not work with 52 inch rear springs. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
7. If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
8. Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes two BDS001608, GM 3/4 ton 6 Inch Rear Spring-52 eye-to-eye, UPC Code 658848611232
• Includes two BDS001801, 73-91 GM 8in Front Spring, UPC Code 658848611256
• Includes one BDS011001, 77-87 GM Front Box Kit (3.00 dia. front), UPC Code 658848611621
• Includes one BDS011208, GM 3/4 ton 2 Inch Rear Box Kit, UPC Code 658848611683
• Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
• Includes one BDS082501, 3in Steering Block w/Studs& Nuts- Dana44, UPC Code 658848618187
• Includes one BDS121000, 73-87 GM Transfer Case Lowering Kit, UPC Code 658848618804
• Includes one BDS121632, 73-87 Chevy 6-8in Frt Sway Bar Links, UPC Code 658848619177
• Includes two FOX98224639, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
• Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Specifications

Watch the BDS Suspension Video

Fitment

• 1977-1986 Chevrolet K20
• 1977-1981 Chevrolet K20 Cheyenne
• 1977 Chevrolet K20 Suburban Silverado
• 1977-1983 Chevrolet K20 Silverado
• 1977-1980 Chevrolet K20 Suburban Scottsdale
• 1977-1986 Chevrolet K20 Scottsdale
• 1977-1986 Chevrolet K20 Suburban
• 1977-1980 Chevrolet K20 Custom Deluxe
• 1977-1980 Chevrolet K20 Suburban Custom Deluxe
• 1977 GMC Jimmy
• 1977-1986 Chevrolet K5 Blazer
• 1977-1978 GMC K25
• 1977-1978 GMC K25 Suburban
• 1978-1982 GMC Jimmy Sierra Grande
• 1978-1982 GMC Jimmy
• 1978-1982 GMC Jimmy Sierra Classic
• 1978-1982 GMC Jimmy High Sierra
• 1979-1986 GMC K2500 Suburban High Sierra
• 1979-1982 GMC K2500 Sierra Grande
• 1979-1986 GMC K2500 Suburban Sierra Classic
• 1979-1986 GMC K2500 Sierra Classic
• 1979-1986 GMC K2500 High Sierra
• 1979-1982 GMC K2500 Suburban Sierra Grande
• 1979-1986 GMC K2500 Suburban
• 1979-1986 GMC K2500
• 1979-1980 Chevrolet K20 Suburban Silverado
• 1981 Chevrolet K20 Deluxe
• 1981-1986 Chevrolet K20 Suburban Custom
• 1981-1986 Chevrolet K20 Custom
• 1981 Chevrolet K20 Suburban Deluxe
• 1982 Chevrolet K20 Suburban Scottsdale
• 1982-1983 Chevrolet K20 Suburban Silverado
• 1983-1987 GMC Jimmy
• 1984-1986 Chevrolet K20 Suburban Scottsdale
• 1985-1986 Chevrolet K20 Silverado
• 1985-1986 Chevrolet K20 Suburban Silverado
• 1987 Chevrolet V20
• 1987 GMC V2500 Suburban
• 1987 GMC V2500
• 1987 Chevrolet V20 Suburban
• 1987 Chevrolet Blazer
