BDS Suspension 6 Inch Lift Kit Silverado/Sierra 1500 19-24 4WD Gas Strut Spacer NX2 Nitro Shocks (BDS1801H)
SKU: BDS1801H

BDS Suspension 6 Inch Lift Kit Silverado/Sierra 1500 19-24 4WD Gas Strut Spacer NX2 Nitro Shocks (BDS1801H)

$2,255.25
By BDS Suspension

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

  • (Trimming may be required)
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
  • 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

Front Shock Option
Strut Spacer

  • Made from heavy-duty steel that guarantees its durability
  • Maintains factory like ride quality
  • Fast and Easy to install

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

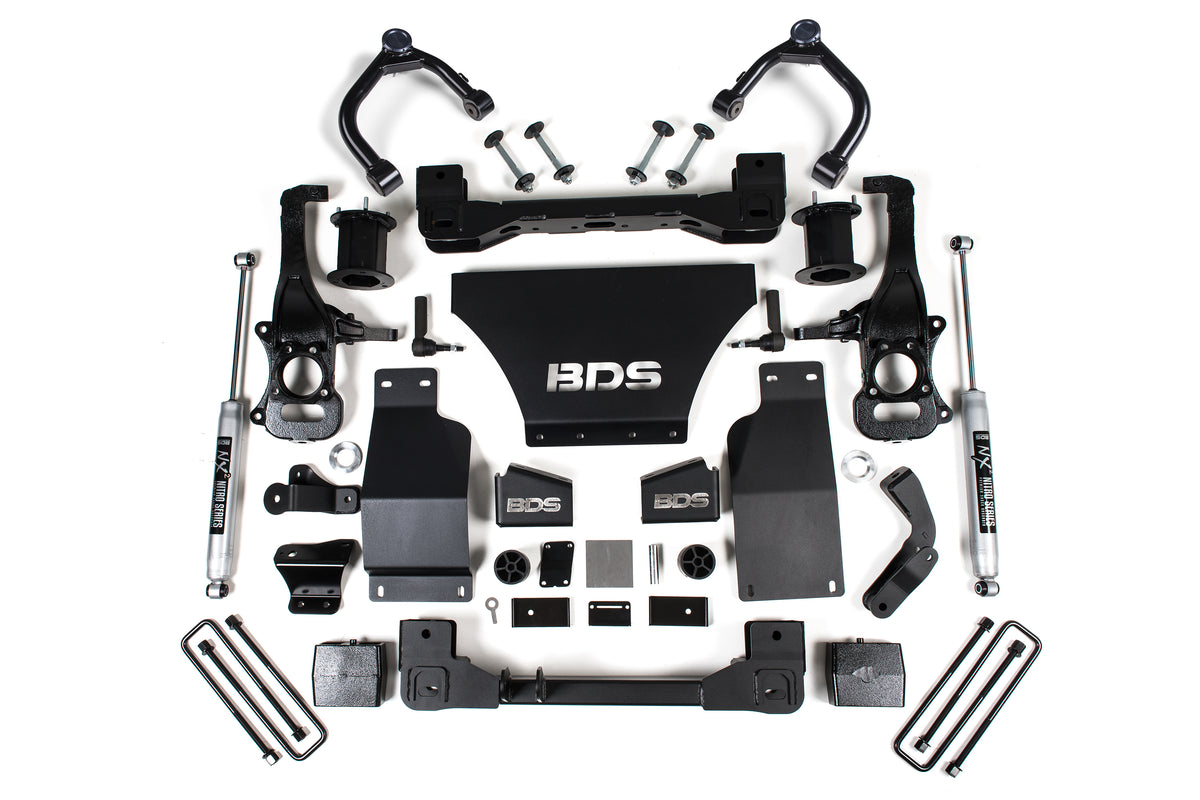

Kit Components:

  • Includes one BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit, UPC Code 658848611935
  • Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056
  • Includes one BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible, UPC Code 658848615063
  • Includes one BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2, UPC Code 658848615131
  • Includes one BDS021683, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2, UPC Code 658848615148
  • Includes one BDS021684, 2019-2024 Chevy/GMC 1500 6 inch Front Strut Spacer Kit, UPC Code 658848615155
  • Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Specifications

Brand BDS Suspension
Part Number BDS1801H
UPC 840416413830
Lift Height 6.0 Inch
Front Lift Height 6.0 Inch
Rear Lift Height 4.0 Inch
Drive 4WD
Fuel Type Gas
Tire Size 35 Inch
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 7
Package Size (L x W x H) 14.5 x 6.5 x 6 in
28 x 15 x 8 in
28 x 15 x 8 in
33 x 14 x 9 in
27 x 25.5 x 4.5 in
14.5 x 6.5 x 6 in
23.5 x 3 x 3 in
Package Weight 295.35 lb

Watch the BDS Suspension Video

Fitment

  • 2014-2025 GMC Sierra 1500 SLE
  • 2014-2021 GMC Sierra 1500
  • 2014-2024 GMC Sierra 1500 Denali
  • 2014-2025 Chevrolet Silverado 1500 WT
  • 2014-2024 Chevrolet Silverado 1500 High Country
  • 2014-2025 Chevrolet Silverado 1500 LT
  • 2014-2025 Chevrolet Silverado 1500 LTZ
  • 2014-2025 GMC Sierra 1500 SLT
  • 2015-2018 Chevrolet Silverado 1500 LS
  • 2015-2021 Chevrolet Silverado 1500 SSV
  • 2016-2024 Chevrolet Silverado 1500 Custom
  • 2019-2024 GMC Sierra 1500 AT4
  • 2019-2020 Chevrolet Silverado 1500 WT Doble Cabina
  • 2019-2020 Chevrolet Silverado 1500 WT Cab Regular
  • 2019-2024 Chevrolet Silverado 1500 LT Trail Boss
  • 2019-2025 Chevrolet Silverado 1500 RST
  • 2019-2025 GMC Sierra 1500 Elevation
  • 2019-2024 Chevrolet Silverado 1500 Custom Trail Boss
  • 2022-2025 GMC Sierra 1500 Pro
  • 2022-2024 GMC Sierra 1500 AT4X
  • 2022-2024 GMC Sierra 1500 Denali Ultimate
  • 2022-2024 Chevrolet Silverado 1500 ZR2
  • 2023-2024 Chevrolet Silverado 1500 PPV
