BDS Suspension 6 Inch Lift Kit Jeep Wrangler YJ 87-95 NX2 Nitro Shocks (BDS1432H)
Pickup currently unavailable at DEO In House Inventory
BDS steps up the performance and capability of the 1987-1995 Jeep Wrangler YJ with a 6-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
This 6-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, power steering pitman arm, bump stop extensions, a transfer case drop kit to ease the drive line angles and 1 inchextended shackles to let your springs really flex. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
- Front Lift Method: Leaf Spring
- Rear Lift Method: Leaf Spring
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 6 inch
- May require a larger diameter driveshaft if equipped with a 41-1/2 inch front driveshaft.
- A slip yoke eliminator and dual cardan style rear driveshaft is required.
- Extended shackles are recommended to clear the military wraps on the springs.
- Pitman arms will NOT fit YJ models equipped with manual steering.
- Glideride leaf springs to provide full lift height and increased capacity
- Front and rear track bar relocation brackets to center the axle
- Transfer case drop kit to ease the drive line angles
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Easy, 100 percent Bolt-on installation
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

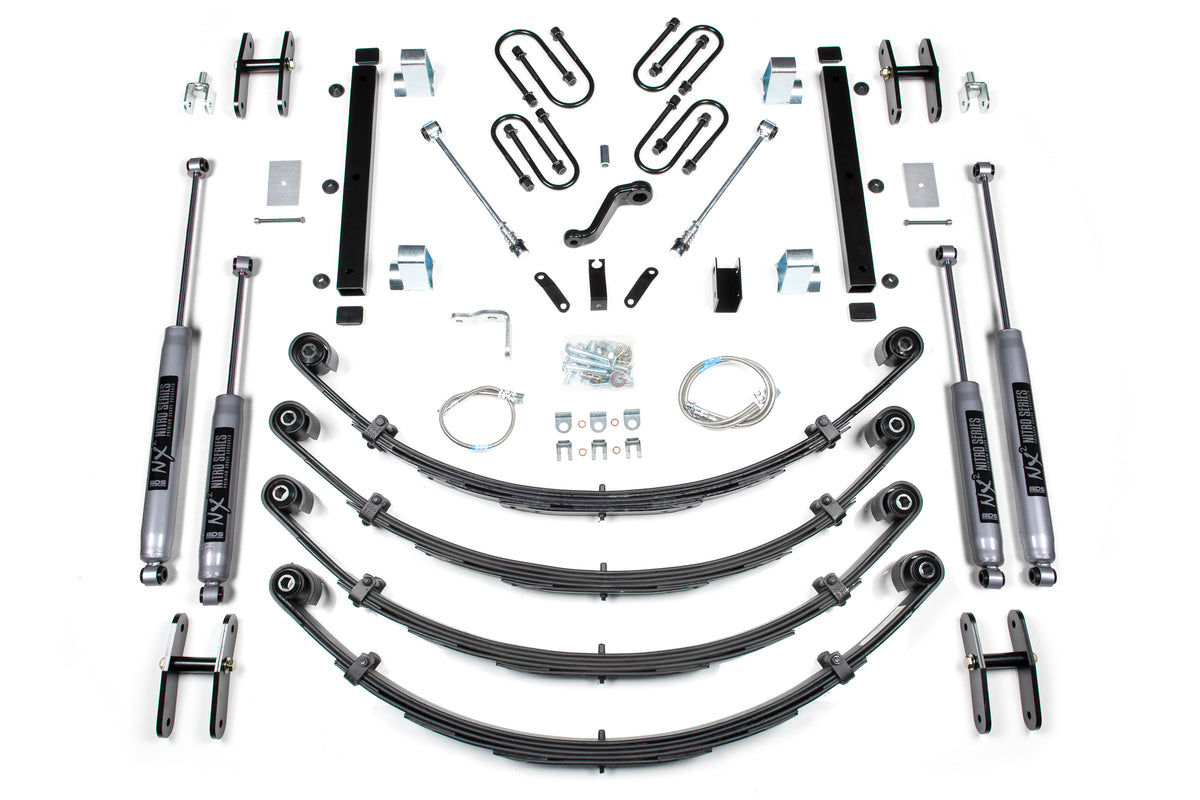

Kit Components:
- Includes four BDS004500, 87-95 Jeep YJ 5in Leaf Spring, UPC Code 658848611577
- Includes one BDS014501, 87-95 YJ 5-6 Inch Complete Box Kit, UPC Code 658848614240
- Includes one BDS124013, Jeep YJ Front Solid Anti-sway Bar Kit, UPC Code 711745604575
- Includes two BDS124102, Jeep YJ Frt 1in Shackle / CJ RR 1-3/8in, UPC Code 711745604865
- Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
- Includes two BDS85920, Shock - 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609983
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1432H |
| UPC | 840416410860 |
| Lift Height | 6.0 Inch |
| Front Lift Height | 6.0 Inch |
| Rear Lift Height | 6.0 Inch |
| Doors | 4 Door |
| Tire Size | 35 Inch |
| Shock Style | NX2 Nitro Shocks |
| Shocks Included | Yes |
| Finish | Powdercoat |
| Color | Silver |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 6 |
| Package Size (L x W x H) | 43 x 12 x 2.5 in 20.5 x 8.5 x 4.5 in 20 x 3 x 2 in 11 x 7 x 2 in 23.5 x 3 x 3 in 23.5 x 3 x 3 in |
| Package Weight | 237.16 lb |
Watch the BDS Suspension Video
Fitment
- 1987-1995 Jeep Wrangler
- 1987-1993 Jeep Wrangler
- 1987-1990 Jeep Wrangler Laredo
- 1987-1988 Jeep Wrangler Sport
- 1988-1992 Jeep Wrangler Islander
- 1988 Jeep Wrangler S
- 1988-1995 Jeep Wrangler Sahara
- 1991-1994 Jeep Wrangler Renegade
- 1991-1994 Jeep Wrangler S
- 1994-1995 Jeep Wrangler SE
- 1995 Jeep Wrangler Rio Grande
