BDS Suspension 6 Inch Lift Kit Ford F100/F150 73-76 4WD Leaf Springs NX2 Nitro (BDS378H)
SKU: BDS378H

BDS Suspension 6 Inch Lift Kit Ford F100/F150 73-76 4WD Leaf Springs NX2 Nitro (BDS378H)

$1,336.35
By BDS Suspension

Raise up your 1973-1976 Ford F100 and F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, radius arm drop brackets, track bar relocation bracket for steering correction, bump stop brackets and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 5.5 inch
  1. Alignment inchC inch bushings may be required.
  2. #003408 (4 inch) Leaf Springs and #003608 (6 inch) Leaf Springs come with OE style bushings installed.
  3. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Option

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

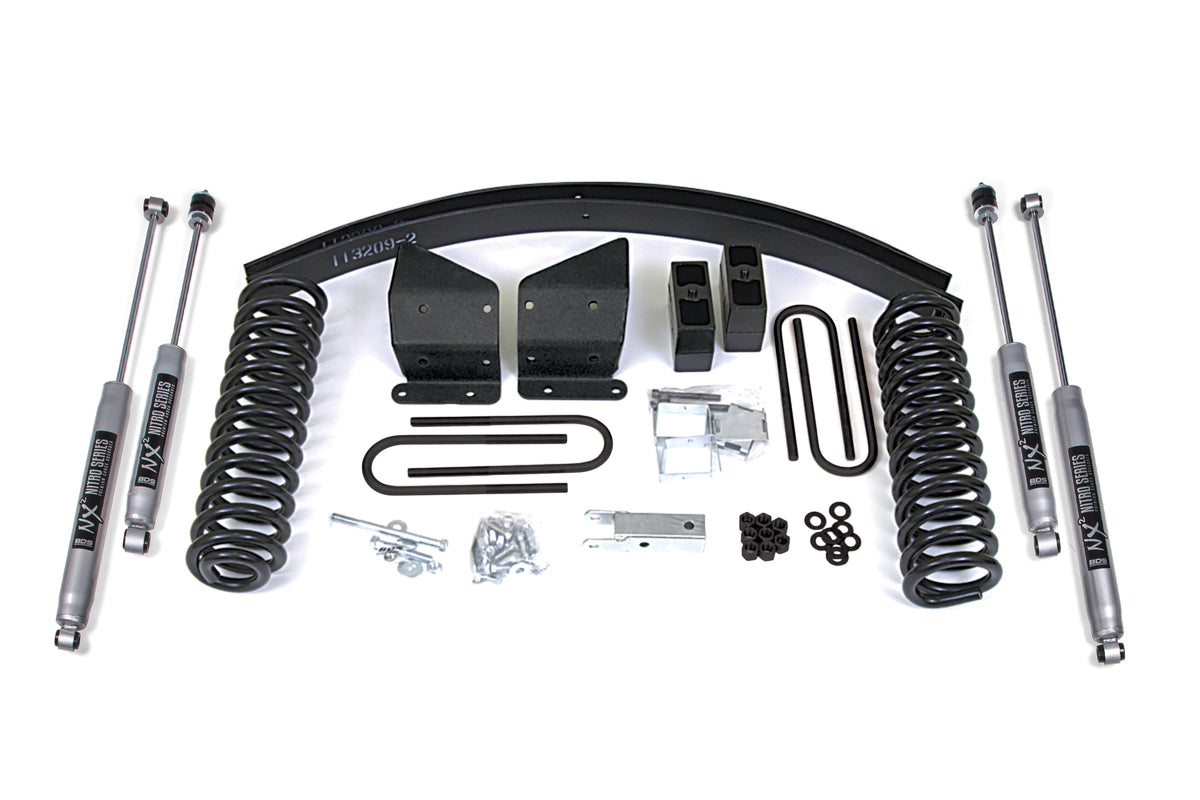

Kit Components:

  • Includes two BDS003608, 73-96 Ford F150 6 Inch Rear Spring, UPC Code 658848611379
  • Includes one BDS013002, 73-79 Ford Radius Arm Drop Kit, UPC Code 658848612925
  • Includes one BDS033603, Ford F150(73-79)/Bronco(78-79) 6 Inch Coil, UPC Code 658848616565
  • Includes one BDS123001, 73-79 Ford Track Bar Ext Bracket, UPC Code 658848619863
  • Includes two BDS85860, Shock - 29.80 x 17.57 x 2-3/8 -S1/EB1, UPC Code 711745609907
  • Includes two BDS85877, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1, UPC Code 711745609921
  • Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126

Specifications

Brand BDS Suspension
Part Number BDS378H
UPC 840416409253
Lift Height 6.0 Inch
Front Lift Height 6.0 Inch
Rear Lift Height 5.5 Inch
Drive 4WD
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 6
Package Size (L x W x H) 50.75 x 2.5 x 9.25 in
19 x 12 x 6 in
23 x 12 x 6 in
9 x 3 x 2 in
23.5 x 3 x 3 in
23.5 x 3 x 3 in
Package Weight 275.4 lb

Watch the BDS Suspension Video

Fitment

  • 1973-1974 Ford F-100
  • 1975-1976 Ford F-100 Custom
  • 1975-1976 Ford F-150 Custom
  • 1975-1976 Ford F-100 Northland
  • 1975-1976 Ford F-150 Northland
  • 1975-1976 Ford F-100 Ranger
  • 1975-1976 Ford F-150 Ranger
  • 1975-1976 Ford F-100 Ranger XLT
  • 1975-1976 Ford F-150 Ranger XLT
  • 1976 Ford F-100
  • 1976 Ford F-150
