BDS Suspension 6.5 inch long arm lift kit Jeep Wrangler TJ and TJ Rubicon 1997-2006 NX2 Nitro (BDS467H)
SKU: BDS467H

BDS Suspension 6.5 inch long arm lift kit Jeep Wrangler TJ and TJ Rubicon 1997-2006 NX2 Nitro (BDS467H)

$3,205.38
By BDS Suspension

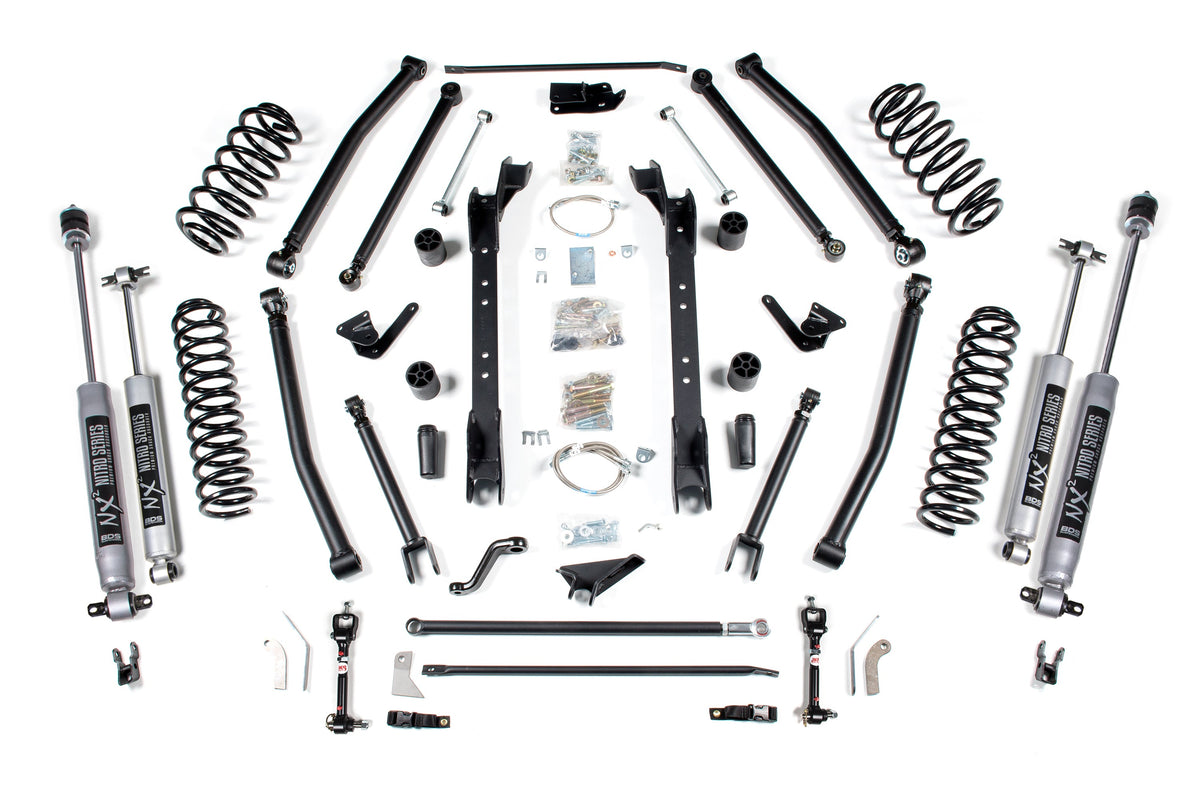

This lift kit comes with four new Pro-Ride Coil Springs capable of full coil bind. The box kit includes a pitman arm for steering correction, adjustable front track bar with a track bar relocation system to match the track bar angles with the steering angles. Four long lower arms are included with flex ends to ensure off road performance.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: No
  • Front Lift Height: 6 inch
  • Rear Lift Height: 6 inch

A slip yoke eliminator kit and CV style rear drive shaft is required.
May require exhaust modification.
Some welding required.
Long Arm systems also fit short wheel base Rubicon models (not Unlimited models)
All new long upper arms are included that are adjustable to fine tune the rear pinion angles as well as the front caster angles, D.O.T. approved Kevlar lined stainless steel brake lines for front and rear, ultimate sway bar disconnects for the front and extended links for the rear, and NX2 series shocks.

Kit Components:

  • Includes one BDS014651, 97-04 Jeep TJ 6.5in Long Arm Box (2of3), UPC Code 711745611849
  • Includes one BDS014657, 97-06 Jeep TJ 6.5in LA Box Kit, UPC Code 658848614288
  • Includes one BDS014660, 97-06 Jeep TJ Long Arm Box (1of3), UPC Code 658848614318
  • Includes one BDS034651, 1997-2006 Jeep Wrangler (TJ) 6.5in Front Coil Springs, UPC Code 658848616961
  • Includes one BDS034659, 1997-2006 Jeep Wrangler (TJ) 6.5in Rear Coil Springs, UPC Code 658848616985
  • Includes two BDS85962, Shock- 29.80 x 17.55 x 2-3/8 - S1/BP7, UPC Code 711745610132
  • Includes two BDS85974, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610224

Specifications

Brand BDS Suspension
Part Number BDS467H
UPC 840416417869
Lift Height 6.5 Inch
Front Lift Height 6.5 Inch
Rear Lift Height 6.0 Inch
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 7
Package Size (L x W x H) 44.5 x 10.5 x 9 in
19 x 12 x 6 in
36.5 x 6 x 5.5 in
23 x 12 x 6 in
28 x 14.5 x 8 in
23.5 x 3 x 3 in
23.5 x 3 x 3 in
Package Weight 277.2 lb

Watch the BDS Suspension Video

Fitment

  • 1997-2006 Jeep Wrangler
  • 1997-2004 Jeep Wrangler Sahara
  • 1997-2006 Jeep Wrangler SE
  • 1997-2006 Jeep Wrangler Sport
  • 2002-2006 Jeep Wrangler X
  • 2003-2006 Jeep Wrangler Rubicon
  • 2004-2006 Jeep Wrangler Unlimited
  • 2005-2006 Jeep Wrangler Unlimited Rubicon
  • 2006 Jeep Wrangler 65th Anniversary Edition
