BDS Suspension 5.5 Inch Lift Kit Ram 2500 w/ Rear Air Ride 14-18 4WD Gas NX2 Nitro Shocks (BDS1630H)
SKU: BDS1630H

BDS Suspension 5.5 Inch Lift Kit Ram 2500 w/ Rear Air Ride 14-18 4WD Gas NX2 Nitro Shocks (BDS1630H)

$2,603.55
By BDS Suspension

Take your rear air ride equipped 2014-2018 RAM 2500 gas powered truck to the next level with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. BDS also supplies new air ride leveling sensor brackets to re-position the ride height sensors allowing it to perform just like it does at factory ride height and maintain full air bag range of motion.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Spacer
  • Shocks Included: Yes
  • Front Lift Height: 5.5 inch
  • Rear Lift Height: 5 inch
  1. For OE Air Ride systems only
  2. 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

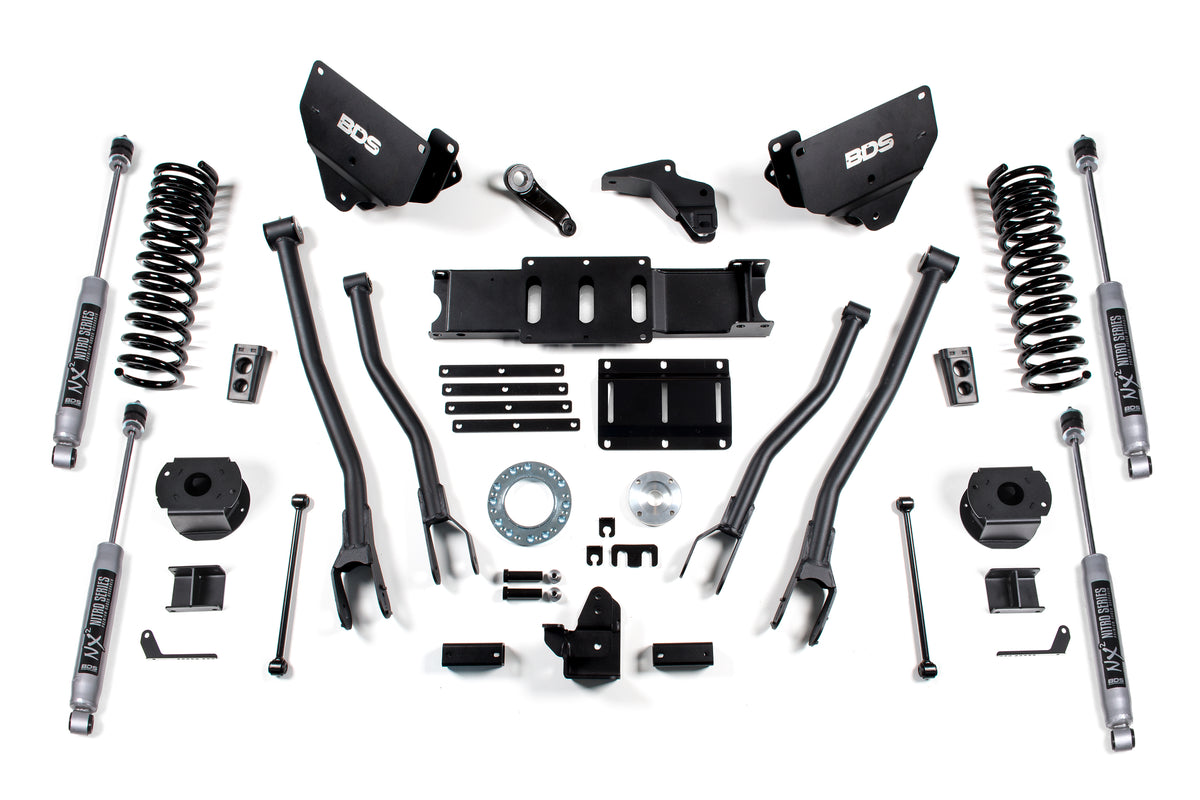

Kit Components:

  • Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
  • Includes one BDS012529, 14-18 Ram 2500 5 inch Rear Air Ride Box Kit, UPC Code 658848612666
  • Includes one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2), UPC Code 658848612703
  • Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
  • Includes one BDS122616, Ram T-Case Index - Gas - 6 Bolt, UPC Code 658848619702
  • Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
  • Includes two BDS85757, Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1, UPC Code 711745609662

Specifications

Brand BDS Suspension
Part Number BDS1630H
UPC 840416412857
Lift Height 5.5 Inch
Front Lift Height 5.5 Inch
Rear Lift Height 5.0 Inch
Drive 4WD
Fuel Type Gas
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 7
Package Size (L x W x H) 44.5 x 10.5 x 9 in
16.5 x 12.5 x 9.5 in
33 x 14 x 9 in
28 x 14.5 x 8 in
35 x 11 x 5 in
23.5 x 3 x 3 in
23.5 x 3 x 3 in
Package Weight 306.3 lb

Watch the BDS Suspension Video

Fitment

  • 2014-2018 Ram 2500 Big Horn
  • 2014-2018 Ram 2500 Outdoorsman
  • 2014-2018 Ram 2500 ST
  • 2014-2018 Ram 2500 SLT
  • 2014-2018 Ram 2500 R/T
  • 2014-2018 Ram 2500 Power Wagon
  • 2014-2015 Ram 2500 Lone Star
  • 2014-2018 Ram 2500 Laramie Longhorn
  • 2014-2018 Ram 2500 Laramie Limited
  • 2014-2018 Ram 2500 Laramie
  • 2014-2018 Ram 2500 Tradesman
  • 2015-2016 Ram 2500 Hemi Sport
  • 2016-2018 Ram 2500 Limited
  • 2017 Ram 2500 Laramie HD
  • 2017-2018 Ram 2500 SLT HD
  • 2017-2018 Ram 2500 Sport
  • 2018 Ram 2500 Limited Tungsten
  • 2018 Ram 2500 Limited Tungsten HD
