BDS Suspension 4 Inch Lift Kit w/ Radius Arm Ram 3500 19-23 4WD Gas With Factory Rear Overload Leaf NX2 Nitro Shocks (BDS1703H)
SKU: BDS1703H

BDS Suspension 4 Inch Lift Kit w/ Radius Arm Ram 3500 19-23 4WD Gas With Factory Rear Overload Leaf NX2 Nitro Shocks (BDS1703H)

$2,122.86
By BDS Suspension

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

  • Front Lift Method: Radius Arm
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2 inch
  1. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
  2. Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
    Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Rear Lift Option With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

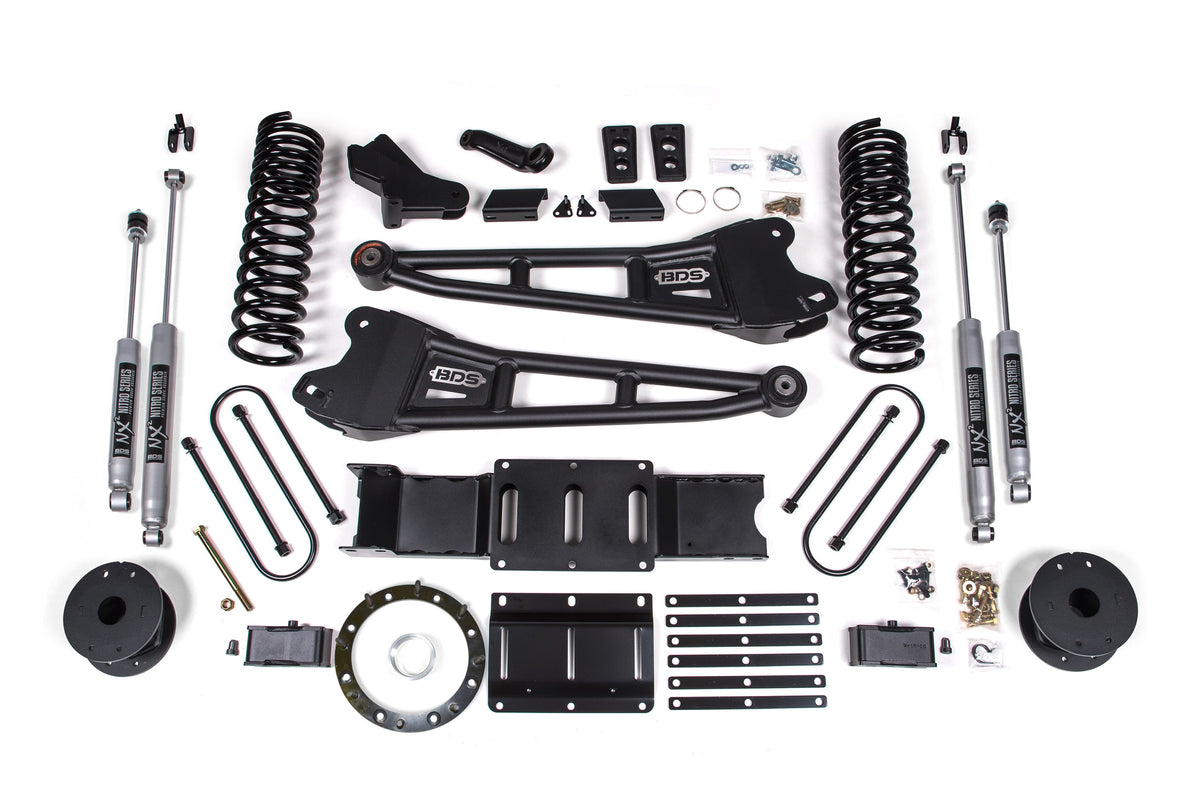

Kit Components:

  • Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
  • Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
  • Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
  • Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Specifications

Brand BDS Suspension
Part Number BDS1703H
UPC 840416407181
Lift Height 4.0 Inch
Front Lift Height 4.0 Inch
Rear Lift Height 2.0 Inch
Drive 4WD
Fuel Type Gas
Tire Size 35 Inch
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 7
Package Size (L x W x H) 20.5 x 8.5 x 4.5 in
23 x 12 x 6 in
28 x 14.5 x 8 in
44.5 x 10.5 x 9 in
35 x 5 x 11 in
23.5 x 3 x 3 in
23.5 x 3 x 3 in
Package Weight 254.7 lb

Watch the BDS Suspension Video

Fitment

  • 2019-2023 Ram 3500
  • 2019-2024 Ram 3500 Big Horn
  • 2019-2024 Ram 3500 Laramie
  • 2019-2020 Ram 3500 Laramie Limited
  • 2019-2020 Ram 3500 Laramie Longhorn
  • 2019-2024 Ram 3500 Limited
  • 2019-2022 Ram 3500 Lone Star
  • 2019-2024 Ram 3500 SLT
  • 2019-2024 Ram 3500 Tradesman
  • 2021-2024 Ram 3500 Limited Longhorn
  • 2024 Ram 3500 Special Service
