BDS Suspension 4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel 6 Bolt Fox 2.5 Performance Elite Shocks (BDS1670FPE)
SKU: BDS1670FPE

BDS Suspension 4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel 6 Bolt Fox 2.5 Performance Elite Shocks (BDS1670FPE)

$5,630.65
By BDS Suspension

4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel

  • Front Lift Method: 4-Link
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2 inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
Indexing Ring Option 6 Bolt Indexing Ring
  • Kits come standard with 6-Bolt indexing ring kit.

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

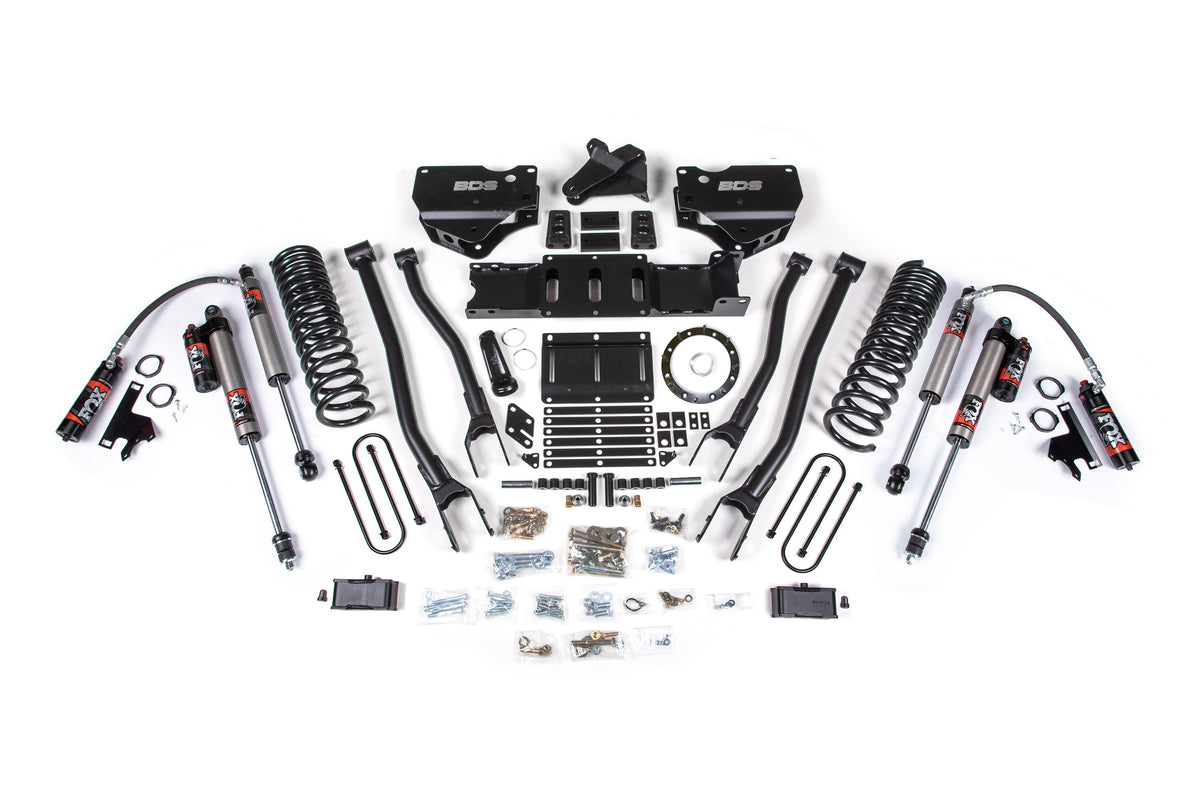

Kit Components:

  • Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
  • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
  • Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
  • Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust

Specifications

Brand BDS Suspension
Part Number BDS1670FPE
UPC 840416402360
Lift Height 4.0 Inch
Front Lift Height 4.0 Inch
Rear Lift Height 2.0 Inch
Drive 4WD
Fuel Type Diesel
Shock Style Fox 2.5 Performance Elite Shocks
Shocks Included Yes
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 7
Package Size (L x W x H) 14.5 x 6.5 x 6 in
33 x 14 x 9 in
45 x 11 x 9 in
23 x 12 x 6 in
35 x 11 x 5 in
34.813 x 18.813 x 10 in
34.813 x 18.813 x 10 in
Package Weight 323.75 lb

Watch the BDS Suspension Video

Fitment

  • 2019-2023 Ram 3500
  • 2019-2024 Ram 3500 Big Horn
  • 2019-2024 Ram 3500 Laramie
  • 2019-2020 Ram 3500 Laramie Limited
  • 2019-2020 Ram 3500 Laramie Longhorn
  • 2019-2024 Ram 3500 Limited
  • 2019-2022 Ram 3500 Lone Star
  • 2019-2024 Ram 3500 SLT
  • 2019-2024 Ram 3500 Tradesman
  • 2021-2024 Ram 3500 Limited Longhorn
  • 2024 Ram 3500 Special Service
