BDS Suspension 4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel 6 Bolt Fox 2.0 Performance Shocks (BDS1667FS)
SKU: BDS1667FS

BDS Suspension 4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel 6 Bolt Fox 2.0 Performance Shocks (BDS1667FS)

$2,952.55
By BDS Suspension
  • Front Lift Method: 4-Link
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
    1. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Indexing Ring Option 6 Bolt Indexing Ring

  • Kits come standard with 6-Bolt indexing ring kit.

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

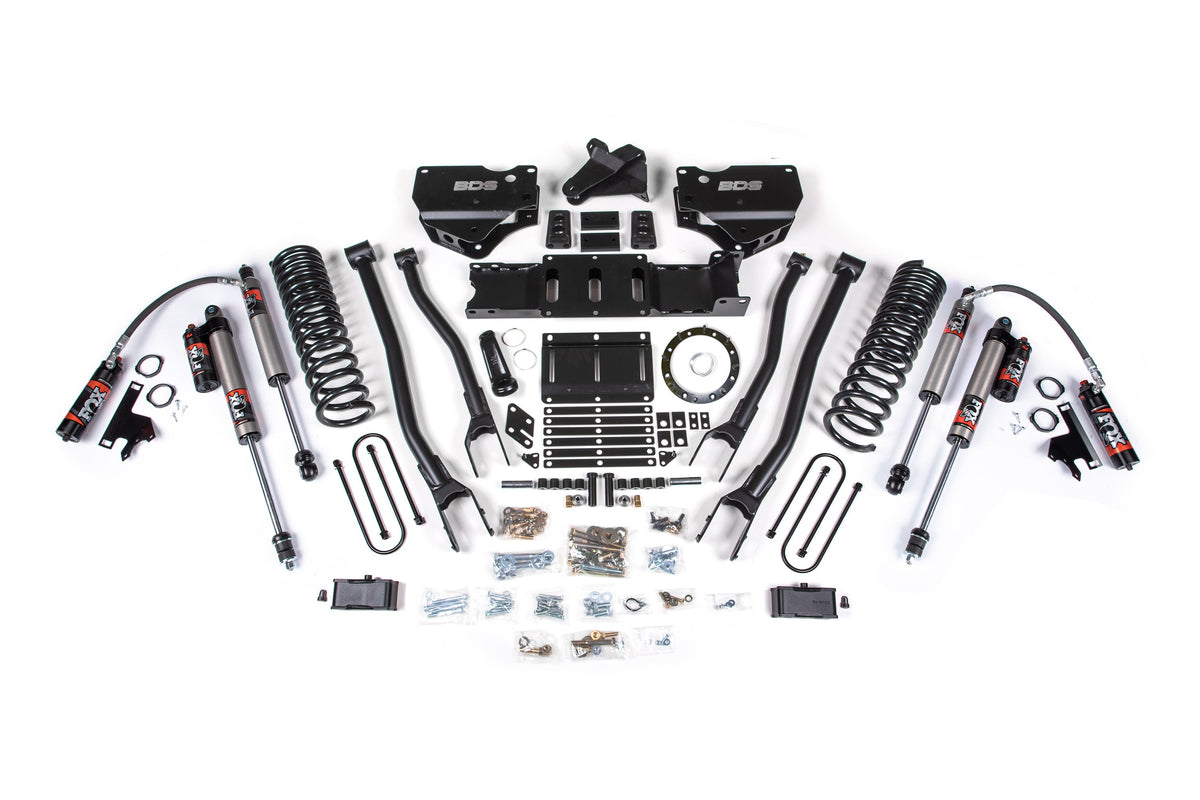

Kit Components:

  • Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291
  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
  • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
  • Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
  • Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Specifications

Brand BDS Suspension
Part Number BDS1667FS
UPC 840416402292
Lift Height 4.0 Inch
Front Lift Height 4.0 Inch
Rear Lift Height 3.0 Inch
Drive 4WD
Fuel Type Diesel
Shock Style Fox 2.0 Performance Shocks
Shocks Included Yes
Finish Anodized
Color Clear
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 7
Package Size (L x W x H) 20.5 x 8.5 x 4.5 in
33 x 14 x 9 in
45 x 11 x 9 in
23 x 12 x 6 in
35 x 11 x 5 in
3 x 3 x 29 in
29 x 3 x 3 in
Package Weight 286.9 lb

Watch the BDS Suspension Video

Fitment

  • 2019-2023 Ram 3500
  • 2019-2024 Ram 3500 Big Horn
  • 2019-2024 Ram 3500 Laramie
  • 2019-2020 Ram 3500 Laramie Limited
  • 2019-2020 Ram 3500 Laramie Longhorn
  • 2019-2024 Ram 3500 Limited
  • 2019-2022 Ram 3500 Lone Star
  • 2019-2024 Ram 3500 SLT
  • 2019-2024 Ram 3500 Tradesman
  • 2021-2024 Ram 3500 Limited Longhorn
  • 2024 Ram 3500 Special Service
