SKU: BDS114H

BDS Suspension 4 Inch Lift Kit Rear Leaf Springs Chevy/GMC 3/4 Ton Truck/Suburban 73-76 4WD With NX2 Shocks (BDS114H)

Name: BDS Suspension 4 Inch Lift Kit Rear Leaf Springs Chevy/GMC 3/4 Ton Truck/Suburban 73-76 4WD With NX2 Shocks (BDS114H)
Brand: BDS Suspension
SKU: BDS114H
Price: 1419.08 USD
Availability: OutOfStock

$1,419.08

By BDS Suspension

Take your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.

Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

Easy, 100 percent Bolt-on installation Glideride leaf springs to provide full lift height and increased capacity New steering arm maintains proper steering angles for improved handling Cast steel blocks and add-a-leaf provide level stance from front to rear Standard NX2 Nitro shocks with vehicle-specific valving for better control Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required) 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Rear Lift Option

Leaf Springs
Eliminates any need for a lift block.

Reduces axle wrap and creates a more controlled and stable feel.
Multi-leaf progressive design for a smooth ride.
Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish

Details:

Front Lift Method: Leaf Spring
Rear Lift Method: Blocks
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 4 inch

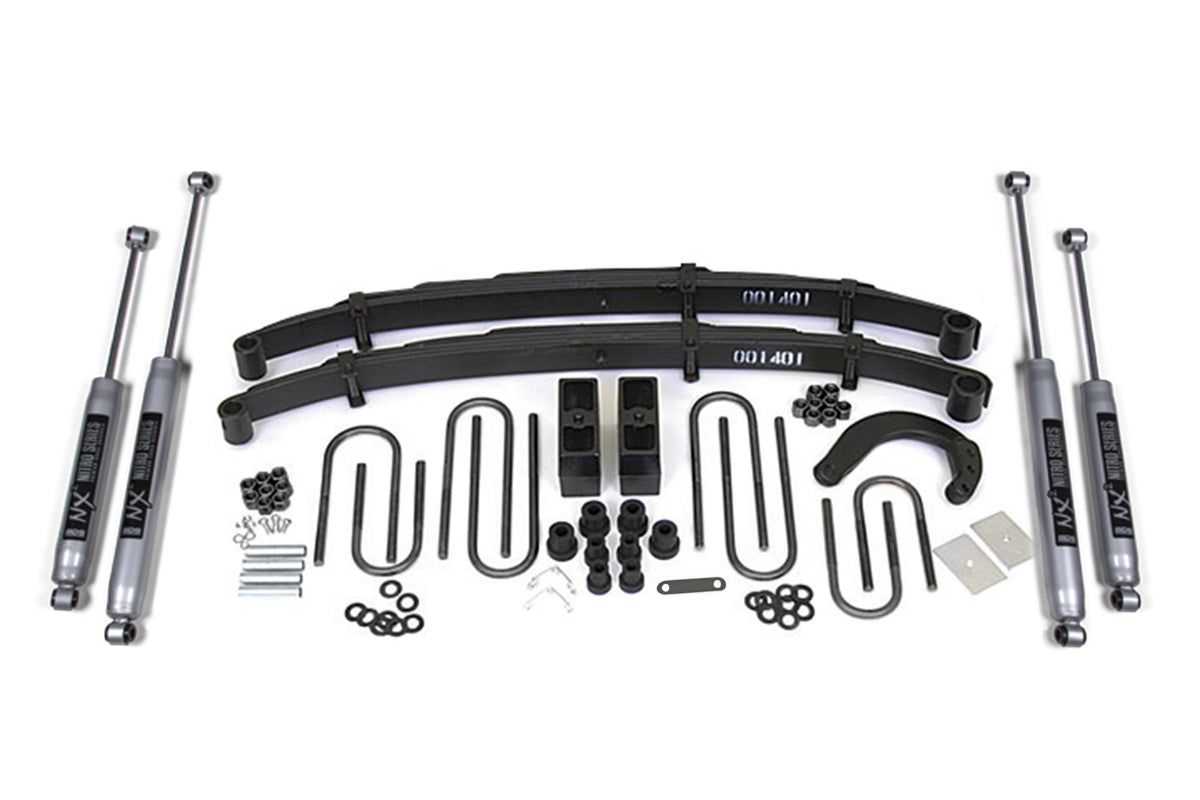

Kit Components

Includes two BDS001401, 73-91 GM 4in Front Spring, UPC Code 658848611164
Includes two BDS001408, GM 3/4 ton 4in Rear Spring-56 eye-to-eye, UPC Code 658848611171
Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638
Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440
Includes four UBT4032, 5/8 x 3-5/8 x 10 Round U-bolt, UPC Code 711745613300

Specifications

Brand	BDS Suspension
Part Number	BDS114H
UPC	840416409741
Lift Height	4.0 Inch
Front Lift Height	4.0 Inch
Rear Lift Height	4.0 Inch
Drive	4WD
Tire Size	35 Inch
Shock Style	NX2 Nitro Shocks
Shocks Included	Yes
Finish	Powdercoat
Color	Silver
Sold As	Kit
Installation Time	5 Hours
Country of Origin	USA
Warranty	Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes	5
Package Size (L x W x H)	53 x 12 x 2.5 in 14.5 x 6.5 x 6 in 11 x 7 x 2.5 in 23.5 x 3 x 3 in 23.5 x 3 x 3 in
Package Weight	294.2 lb
