BDS Suspension 4 Inch Lift Kit Ram 2500 14-18 4WD Gas Rear Lift Coil Spacers Fox 2.0 Performance Shocks (BDS1609FS)
Pickup currently unavailable at DEO In House Inventory
Improve the ride and style of your 2014-2018 RAM 2500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Spacers
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2.5 inch
- 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
- Heavy duty radius arm drop brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Rear Lift Option Coil Spacers
- Maintains factory ride quality
- Made with heavy-duty steel construction
- Powdercoat finish for long-lasting durability
Tire Size: 35 x 12.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 17 x 9 Back Spacing: 4.5/5.625
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

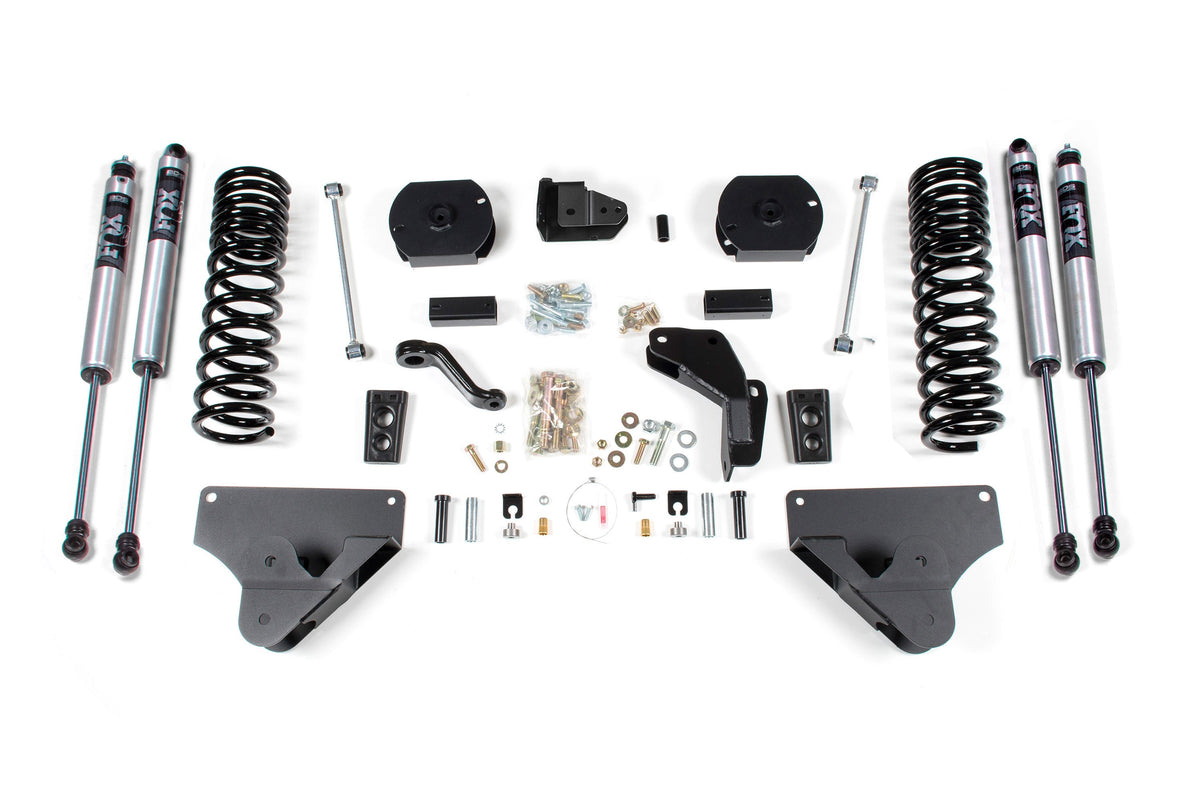

Kit Components:
- Includes one BDS012259, 2014-18 Ram 2500 2.5 inch Rear Coil Spring Spacer Box Kit, UPC Code 658848612178
- Includes one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit, UPC Code 658848612321
- Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1609FS |
| Lift Height | 4.0 Inch |
| Front Lift Height | 4.0 Inch |
| Rear Lift Height | 2.5 Inch |
| Drive | 4WD |
| Fuel Type | Gas |
| Tire Size | 35 Inch |
| Shock Style | Fox 2.0 Performance Shocks |
| Shocks Included | Yes |
| Finish | Anodized |
| Color | Clear |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 5 |
| Package Size (L x W x H) | 16.5 x 12.5 x 9.5 in 23 x 12 x 6 in 28 x 14.5 x 8 in 29 x 3 x 3 in 29 x 3 x 3 in |
| Package Weight | 178.7 lb |
Watch the BDS Suspension Video
Fitment
- 2014-2018 Ram 2500 Big Horn
- 2014-2018 Ram 2500 Outdoorsman
- 2014-2018 Ram 2500 ST
- 2014-2018 Ram 2500 SLT
- 2014-2018 Ram 2500 R/T
- 2014-2018 Ram 2500 Power Wagon
- 2014-2015 Ram 2500 Lone Star
- 2014-2018 Ram 2500 Laramie Longhorn
- 2014-2018 Ram 2500 Laramie Limited
- 2014-2018 Ram 2500 Laramie
- 2014-2018 Ram 2500 Tradesman
- 2015-2016 Ram 2500 Hemi Sport
- 2016-2018 Ram 2500 Limited
- 2017 Ram 2500 Laramie HD
- 2017-2018 Ram 2500 SLT HD
- 2017-2018 Ram 2500 Sport
- 2018 Ram 2500 Limited Tungsten
- 2018 Ram 2500 Limited Tungsten HD
