SKU: BDS516H

BDS Suspension 4 Inch Lift Kit Ford Ranger 83-97 4WD NX2 Nitro (BDS516H)

Name: BDS Suspension 4 Inch Lift Kit Ford Ranger 83-97 4WD NX2 Nitro (BDS516H)
Brand: BDS Suspension
SKU: BDS516H
Price: 935.70 USD
Availability: OutOfStock

$935.70

By BDS Suspension

Improve the ride and level out your 1983-1997 Ford Ranger 4WD truck with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 31 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, heavy duty axle pivot brackets, radius arm drop brackets, forged pitman arm for steering correction, bump stop extensions and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Front Lift Method: Coil Spring
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 3.5 inch

Ball joint alignment cam will be required for alignment, these are available in the options section or from your local alignment shop.
Extra cab models may not achieve stated height.
Models equipped with a 2-piece driveshaft will require the carrier bearing crossmember to be lowered.
Bronco II 1985-90 models with CV joint type drive shaft must be converted to an exposed joint shaft.
Vehicles equipped with factory STX package will not achieve stated height
The dual steering stabilizer listed in the accessories will not fit applications with a factory front sway bar.

Easy, Bolt-on installation
Pro-Ride dual rate coil springs ride smooth through any terrain
Heavy duty steel drop brackets for proper suspension geometry
Cast steel blocks provide level stance from front to rear
NX2 Nitro shocks with vehicle-specific valving for better control

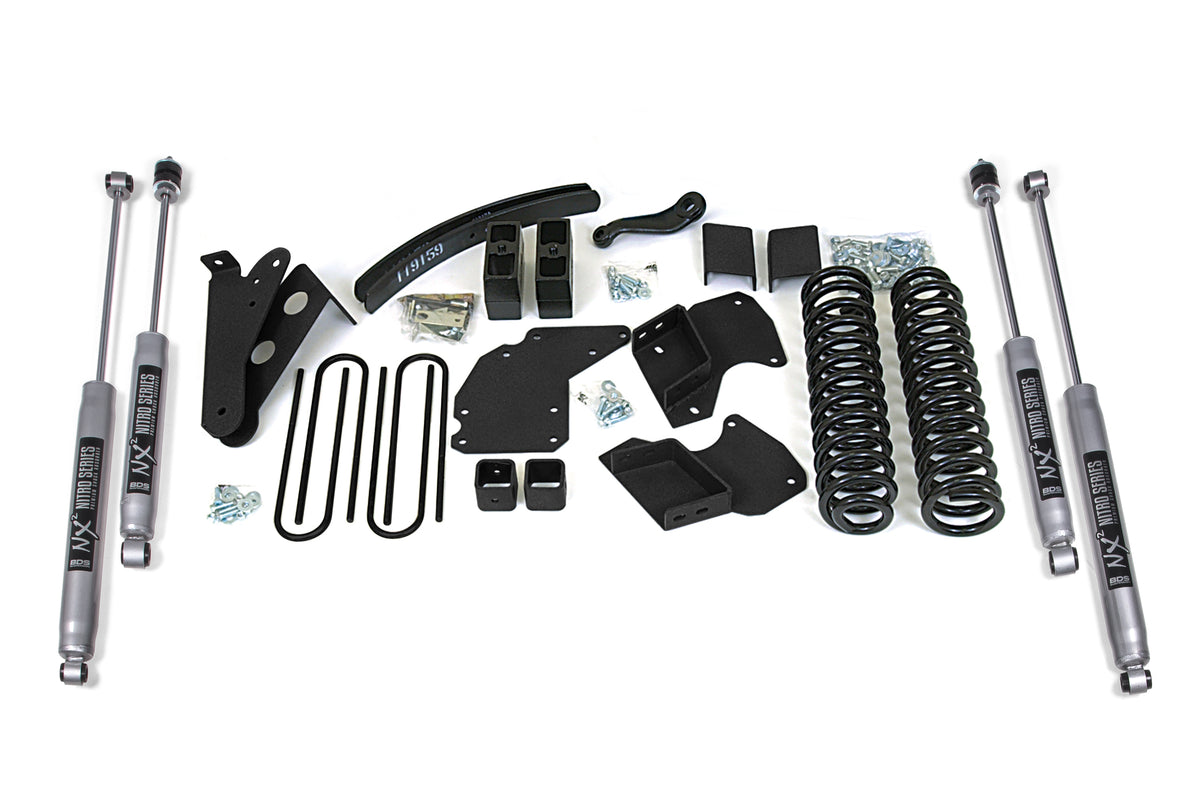

Kit Components:

Includes one BDS013400, 83-97 Ford Ranger 4 Inch Box Kit, UPC Code 658848613335
Includes one BDS033402, 83-97 Ford Ranger 4 Inch Coil Kit, UPC Code 658848616503
Includes two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1, UPC Code 711745609808
Includes two BDS85829, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609884

Specifications

Brand	BDS Suspension
Part Number	BDS516H
UPC	840416409284
Lift Height	4.0 Inch
Front Lift Height	4.0 Inch
Rear Lift Height	3.5 Inch
Drive	4WD
Tire Size	31 Inch
Shock Style	NX2 Nitro Shocks
Shocks Included	Yes
Finish	Powdercoat
Color	Silver
Sold As	Kit
Country of Origin	USA
Warranty	Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes	4
Package Size (L x W x H)	16.5 x 12.5 x 9.5 in 19 x 12 x 6 in 23.5 x 3 x 3 in 23.5 x 3 x 3 in
Package Weight	128.5 lb
