BDS Suspension 4 Inch Lift Kit Ford F150 2014 4WD 2 Inch Block Kit Fox 2.0 Performance Shocks (BDS1920FS)
Pickup currently unavailable at DEO In House Inventory
BDS steps up the performance and capability of the 2014 Ford F150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 4 inch
- Requires frame bracket modification and welding.
- 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tire.
- E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4 inch block.
- For a level-to-tail low appearance use #023415 in place of included 023425
- Will not fit HD models (7 lug).
- FMVSS No.126 Compliant
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
2 Inch Block Kit
- Tail low to level stance
Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

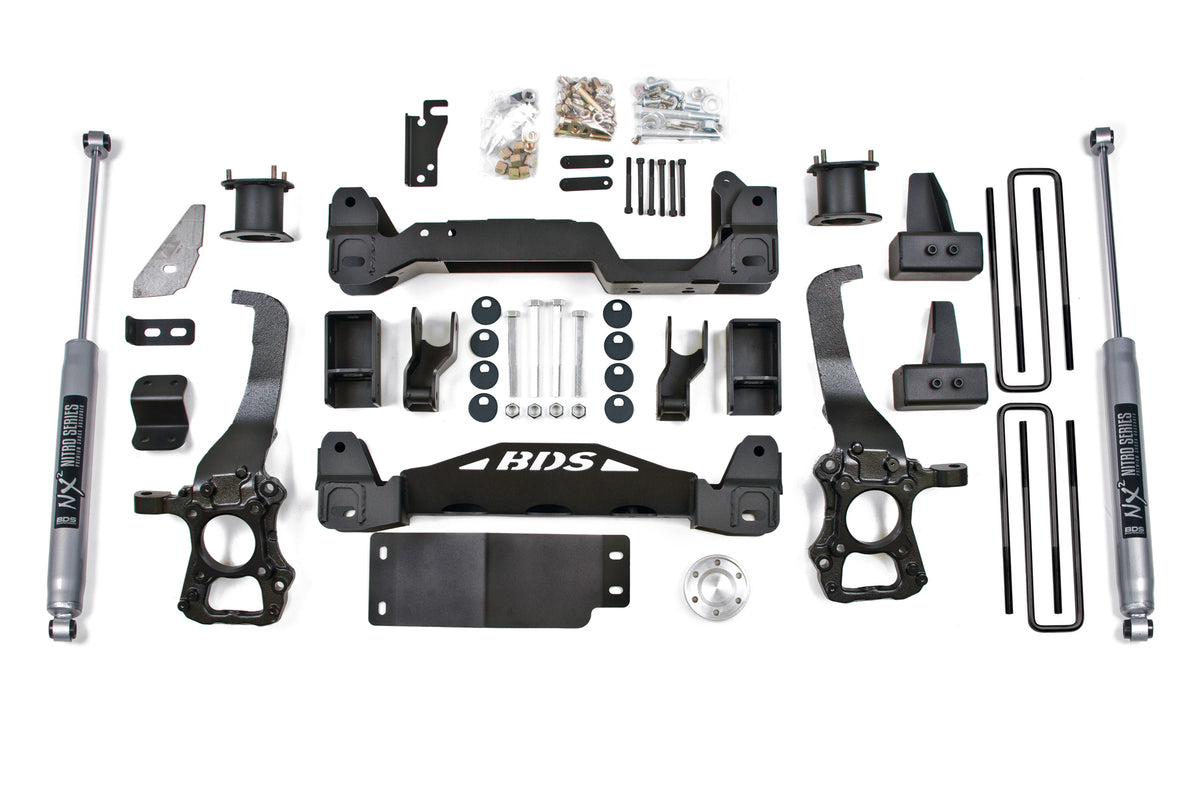

Kit Components:
- Includes one BDS023416, 2014 F150 4 Inch Frt/2in Rear Box Kit, UPC Code 658848615735
- Includes one BDS023622, 2009-2014 Ford F150 Box Kit (3of4), UPC Code 658848615827
- Includes one BDS023623, 2009-2014 Ford F150 Box Kit (4of4), UPC Code 658848615834
- Includes one BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4), UPC Code 658848615858
- Includes one BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4), UPC Code 658848615865
- Includes two FOX98224828, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1920FS |
| UPC | 840416414547 |
| Lift Height | 4.0 Inch |
| Front Lift Height | 4.0 Inch |
| Rear Lift Height | 1 inch |
| Drive | 4WD |
| Tire Size | 35 Inch |
| Shock Style | Fox 2.0 Performance Shocks |
| Shocks Included | Yes |
| Finish | Anodized |
| Color | Clear |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 6 |
| Package Size (L x W x H) | 19 x 12 x 6 in 33 x 14 x 9 in 20.5 x 8.5 x 4.5 in 27 x 10.5 x 6.5 in 27 x 10.5 x 6.5 in 29 x 3 x 3 in |
| Package Weight | 217.6 lb |
Watch the BDS Suspension Video
Fitment
- 2014 Ford F-150 FX2
- 2014 Ford F-150 FX4
- 2014 Ford F-150 King Ranch
- 2014 Ford F-150 Lariat
- 2014 Ford F-150 Limited
- 2014 Ford F-150 Platinum
- 2014 Ford F-150 STX
- 2014 Ford F-150 SVT Raptor
- 2014 Ford F-150 XL
- 2014 Ford F-150 XLT
