BDS Suspension 4 Inch Lift Kit Ford Excursion 00-05 4WD Leaf Springs Fox 2.0 Performance (BDS301FS)
Pickup currently unavailable at DEO In House Inventory
Improve the ride and level out your 2000-2005 Ford Excursion with this 4-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes Glide-Ride leaf springs, track bar bracket for steering correction, extended sway bar links and custom-tuned nitrogen charged shocks. In the rear this kit utilizes high strength lift blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load.
This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
- Front Lift Method: Leaf Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 3 inch
- Models with rear CV style driveshaft may experience drive line vibration.
- If your vehicle is equipped with a rear anti-sway bar, you should consider the rear sway bar links available in the accessories section.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Option
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

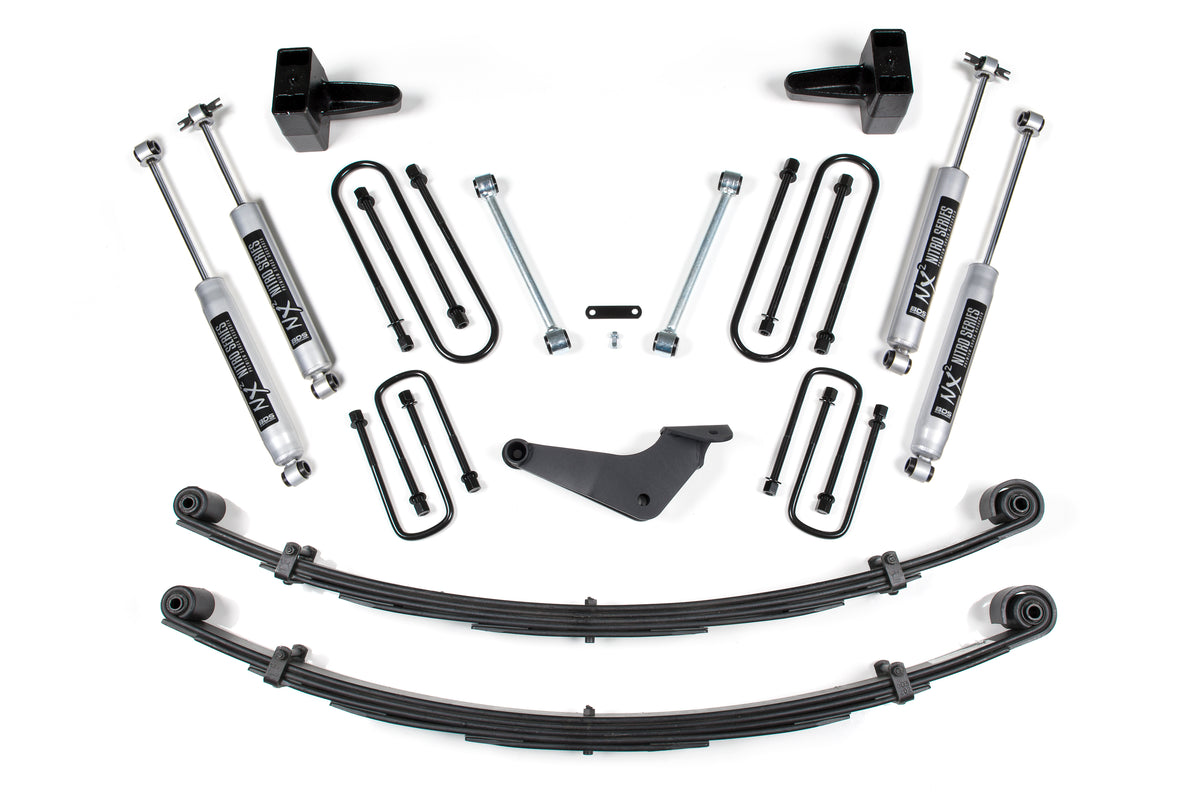

Kit Components:
- Includes two BDS003202, Ford F250/350 2 Inch Front Spring, UPC Code 658848611317
- Includes two BDS003609, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611386
- Includes one BDS013253, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613205
- Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
- Includes two FOX98224662, Fox 2.0 Shock 30.05 x 18.45 x 2- BP8/EB1
- Includes four UBT4032, 5/8 x 3-5/8 x 10 Round U-bolt, UPC Code 711745613300
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS301FS |
| UPC | 840416415940 |
| Lift Height | 4.0 Inch |
| Front Lift Height | 4.0 Inch |
| Rear Lift Height | 3.0 Inch |
| Drive | 4WD |
| Shock Style | Fox 2.0 Performance Shocks |
| Shocks Included | Yes |
| Finish | Anodized |
| Color | Clear |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 5 |
| Package Size (L x W x H) | 53 x 8 x 3 in 53 x 13 x 3 in 20.5 x 8.5 x 4.5 in 29 x 3 x 3 in 29 x 3 x 3 in |
| Package Weight | 374.05 lb |
Watch the BDS Suspension Video
Fitment
- 2000-2005 Ford Excursion
- 2000-2005 Ford Excursion Limited
- 2000-2005 Ford Excursion XLT
- 2003-2005 Ford Excursion Eddie Bauer
- 2004-2005 Ford Excursion XLS
