BDS Suspension 4 Inch Lift Kit Chevy/GMC 3/4 Ton Truck/Suburban 73-76 4WD NX2 Nitro Shocks (BDS110H)

Take your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

1. The 3/4 ton commonly came with a factory 56 inch eye to eye rear leaf spring. However, some were produced with a 52 inch rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
2. If equipped with a factory front sway bar, a sway bar drop kit is available in the accessories section.
3. 001408 come with OE style rubber bushings installed.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option 4 Inch Block Kit

• Included in the base system.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

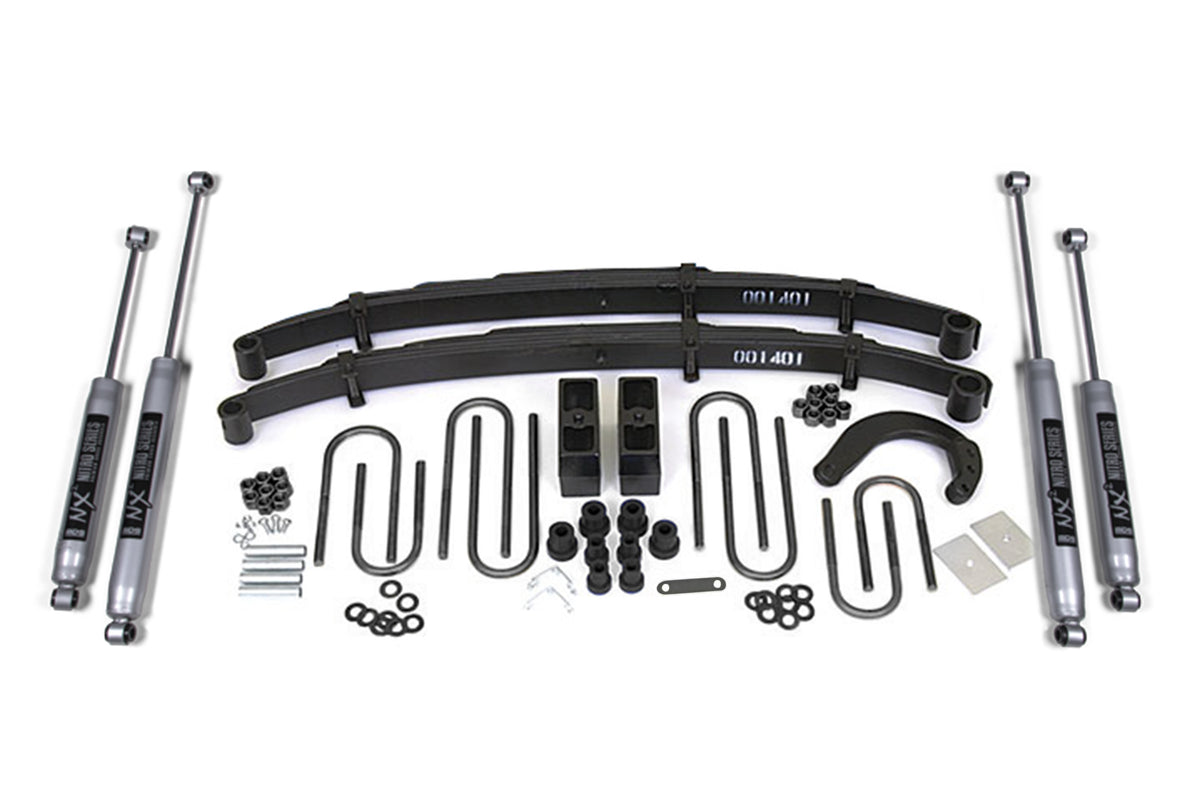

Kit Components

Includes two BDS001401, 73-91 GM 4in Front Spring, UPC Code 658848611164
Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638
Includes one BDS011408, GM 3/4 ton 4in Rear Box Kit, UPC Code 658848611805
Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440

Specifications

Watch the BDS Suspension Video

Fitment

• 1973 Chevrolet K10 Pickup
• 1973-1974 Chevrolet K20 Pickup
• 1973-1974 GMC K15/K1500 Suburban
• 1973-1976 GMC Jimmy
• 1973-1974 GMC K15/K1500 Pickup
• 1975-1976 GMC Jimmy Sierra Classic
• 1975-1976 GMC Jimmy High Sierra
• 1975 Chevrolet K5 Blazer Custom Deluxe
• 1975-1976 Chevrolet K5 Blazer Cheyenne
• 1975-1976 GMC K15 Suburban
• 1975-1976 GMC K15
• 1975-1976 GMC Jimmy
• 1975-1976 Chevrolet K5 Blazer
• 1975-1976 Chevrolet K10 Suburban
• 1975-1976 Chevrolet K10
• 1975-1976 GMC Jimmy Sierra Grande
• 1976 Chevrolet K5 Blazer
