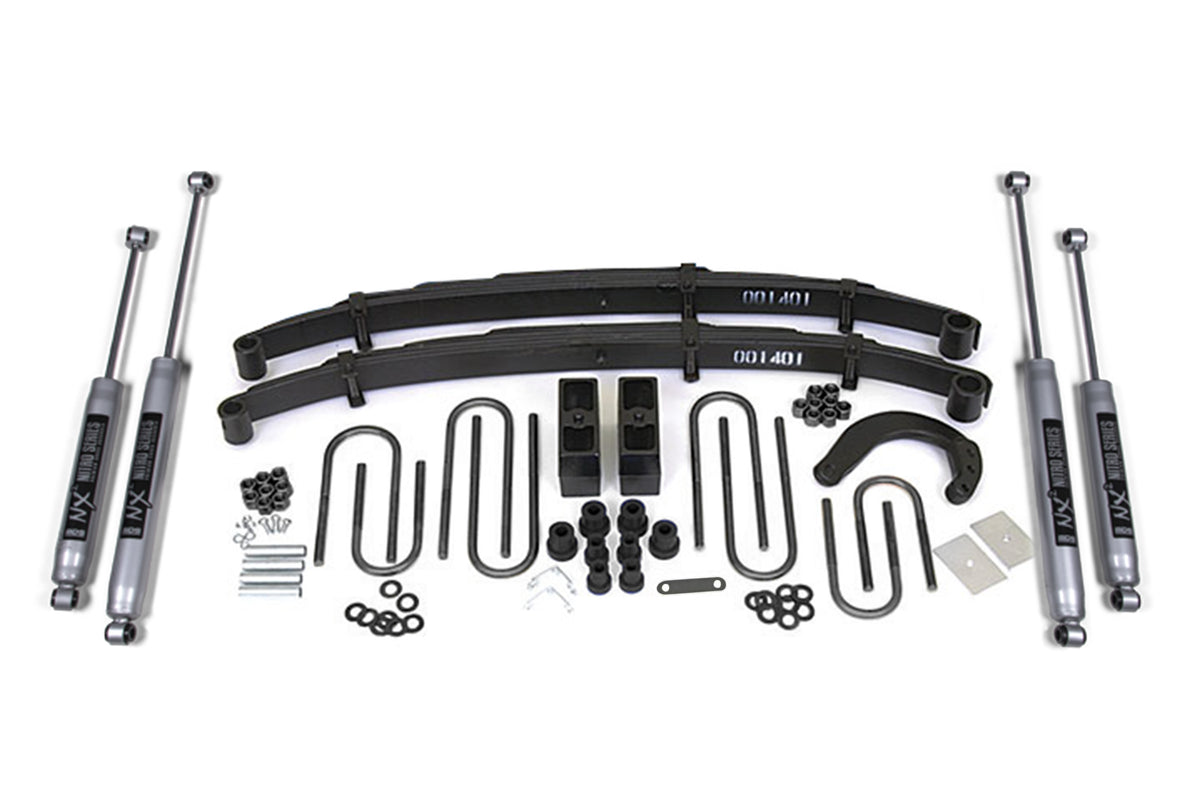

BDS Suspension 4 Inch Lift Kit Chevy/GMC 1/2 Ton Truck/SUV 77-87 4WD 4 Inch Block Add A Leaf W/NX2 Nitro Shocks (BDS125H)
SKU: BDS125H

BDS Suspension 4 Inch Lift Kit Chevy/GMC 1/2 Ton Truck/SUV 77-87 4WD 4 Inch Block Add A Leaf W/NX2 Nitro Shocks (BDS125H)

$965.99
By BDS Suspension

Improve the style and handling of your 1977-1987 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

  • Easy, 100 percent Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-leaf provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • (Trimming may be required)
  • 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Rear Lift Option

  • 4 Inch Block Kit
  • Included in the base system.
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.
  • 4 Inch Block Kit with Add-A-Leaf
  • Help freshen up old worn-out factory leaf springs.
  • Provides an additional 1 inch of lift.
  • Includes new center pins.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Front Lift Method : Leaf Spring

Rear Lift Method : Blocks
Shocks Included : Yes
Front Lift Height : 4 inch
Rear Lift Height : 4 inch

Kit Components:

  • Includes two BDS001401, 73-91 GM 4 Inch Front Spring, UPC Code 658848611164
  • Includes one BDS011001, 77-87 GM Front Box Kit (3.00 dia. front), UPC Code 658848611621
  • Includes one BDS011209, GM 1/2 ton 2 Inch Rear Box Kit, UPC Code 658848611690
  • Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064 Includes one BDS119157, GM/Dodge Rear Long Add-a-leaf, UPC Code 658848618774
  • Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
  • Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440

Specifications

Brand BDS Suspension
Part Number BDS125H
UPC 840416409925
Lift Height 4.0 Inch
Front Lift Height 4.0 Inch
Rear Lift Height 4.0 Inch
Drive 4WD
Tire Size 35 Inch
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 6
Package Size (L x W x H) 14.5 x 6.5 x 6 in
14.5 x 6.5 x 6 in
11 x 7 x 2.5 in
47 x 10 x 3 in
23.5 x 3 x 3 in
23.5 x 3 x 3 in
Package Weight 189.6 lb

Watch the BDS Suspension Video

Fitment

  • 1977-1986 Chevrolet K10
  • 1977-1980 Chevrolet K10 Suburban Scottsdale
  • 1977-1980 Chevrolet K5 Blazer Custom Deluxe
  • 1977-1980 Chevrolet K5 Blazer Cheyenne
  • 1977-1981 Chevrolet K10 Cheyenne
  • 1977-1986 Chevrolet K10 Suburban
  • 1977-1985 GMC Jimmy High Sierra
  • 1977-1987 GMC Jimmy
  • 1977-1986 Chevrolet K10 Scottsdale
  • 1977-1987 GMC Jimmy Sierra Classic
  • 1977-1980 Chevrolet K10 Custom Deluxe
  • 1977-1982 GMC Jimmy Sierra Grande
  • 1977-1986 Chevrolet K10 Silverado
  • 1977 Chevrolet K10 Suburban Silverado
  • 1977-1978 GMC K15 Suburban
  • 1977-1978 GMC K15
  • 1977-1986 Chevrolet K5 Blazer
  • 1977-1980 Chevrolet K10 Suburban Custom Deluxe
  • 1978 Chevrolet K5 Blazer Silverado
  • 1978-1982 GMC Jimmy Street Coupe
  • 1979-1986 GMC K1500 Sierra Classic
  • 1979-1986 GMC K1500 Suburban
  • 1979-1986 GMC K1500
  • 1979-1980 Chevrolet K10 Suburban Silverado
  • 1979-1986 GMC K1500 High Sierra
  • 1979-1986 GMC K1500 Suburban High Sierra
  • 1979-1982 GMC K1500 Suburban Sierra Grande
  • 1979-1982 GMC K1500 Sierra Grande
  • 1979-1986 GMC K1500 Suburban Sierra Classic
  • 1980-1986 Chevrolet K5 Blazer Silverado
  • 1981-1986 Chevrolet K5 Blazer Custom
  • 1981 Chevrolet K10 Deluxe
  • 1981 Chevrolet K5 Blazer Deluxe
  • 1981-1986 Chevrolet K10 Suburban Custom
  • 1981 Chevrolet K10 Suburban Deluxe
  • 1981-1986 Chevrolet K10 Custom
  • 1982 Chevrolet K10 Suburban Scottsdale
  • 1982-1983 Chevrolet K10 Suburban Silverado
  • 1984 Chevrolet K5 Blazer Scottsdale
  • 1984-1986 Chevrolet K10 Suburban Scottsdale
  • 1985-1986 Chevrolet K10 Suburban Silverado
  • 1987 Chevrolet V10
  • 1987 GMC V1500
  • 1987 Chevrolet Blazer
  • 1987 GMC V1500 Suburban
  • 1987 Chevrolet V10 Suburban
