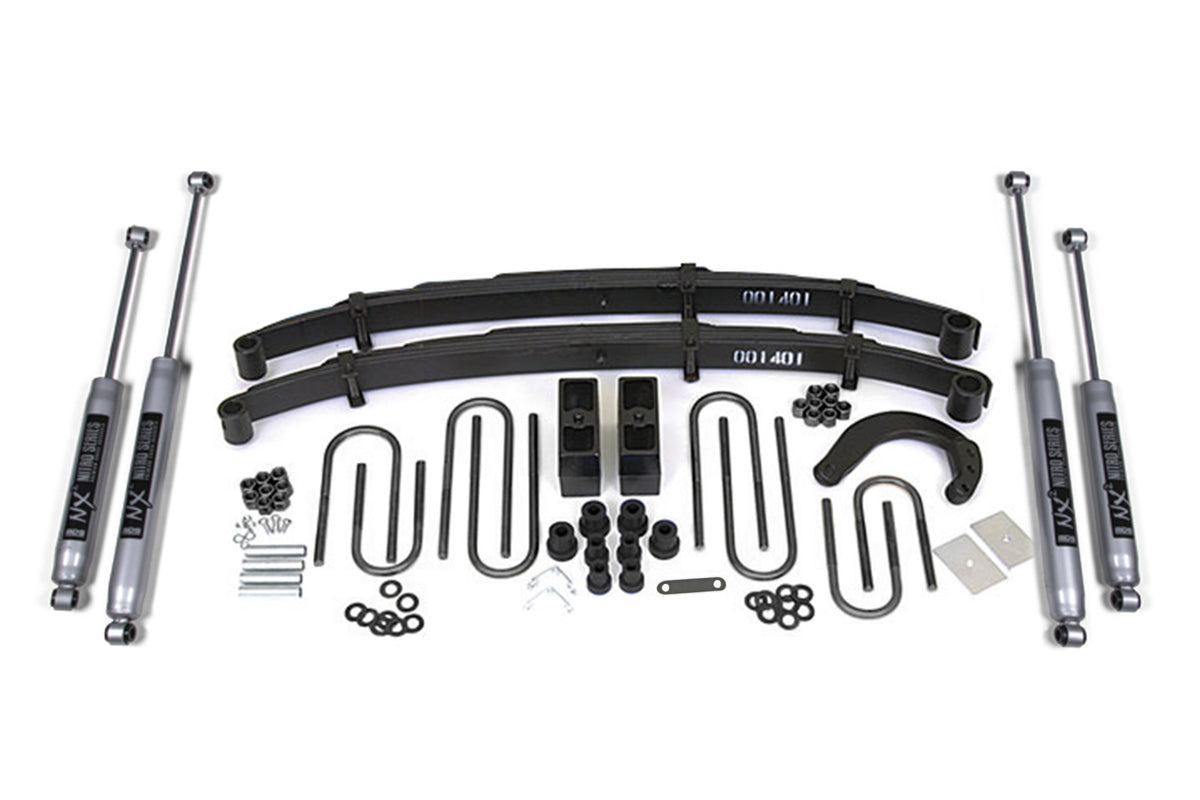

BDS Suspension 4 Inch Lift Kit Block Kit With Add A Leaf Chevy/GMC 1/2 Ton Truck/SUV 73-76 4WD With NX2 Shocks (BDS111H)
Pickup currently unavailable at DEO In House Inventory
Update the style of your 1973-1976 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Features & Benefits
- Easy, 100 percent Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-leaf provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
Recommended Tires & Wheels
- (Trimming may be required)
- 35 x 12.5 with 15 x 8 and 3.5 in. Backspace
Rear Lift Option
4 Inch Block Kit with Add-A-Leaf
- Help freshen up old worn-out factory leaf springs.
- Provides an additional 1 inch of lift.
- Includes new center pins.
Shock Option
- NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Details:
- Front Lift Method: Leaf Spring
- Rear Lift Method: Blocks
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 4 inch
Kit Components
Includes two BDS001401, 73-91 GM 4in Front Spring, UPC Code 658848611164
Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638
Includes one BDS011209, GM 1/2 ton 2 Inch Rear Box Kit, UPC Code 658848611690
Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
Includes one BDS119157, GM/Dodge Rear Long Add-a-leaf, UPC Code 658848618774
Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS111H |
| UPC | 840416409680 |
| Lift Height | 4.0 Inch |
| Front Lift Height | 4.0 Inch |
| Rear Lift Height | 4.0 Inch |
| Drive | 4WD |
| Tire Size | 35 Inch |
| Shock Style | NX2 Nitro Shocks |
| Shocks Included | Yes |
| Finish | Powdercoat |
| Color | Silver |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 6 |
| Package Size (L x W x H) | 14.5 x 6.5 x 6 in 14.5 x 6.5 x 6 in 11 x 7 x 2.5 in 47 x 10 x 3 in 23.5 x 3 x 3 in 23.5 x 3 x 3 in |
| Package Weight | 188.8 lb |
Watch the BDS Suspension Video
Fitment
- 1973 Chevrolet K10 Pickup
- 1973-1974 Chevrolet K20 Pickup
- 1973-1974 GMC K15/K1500 Suburban
- 1973-1976 GMC Jimmy
- 1973-1974 GMC K15/K1500 Pickup
- 1975-1976 GMC Jimmy Sierra Classic
- 1975-1976 GMC Jimmy High Sierra
- 1975 Chevrolet K5 Blazer Custom Deluxe
- 1975-1976 Chevrolet K5 Blazer Cheyenne
- 1975-1976 GMC K15 Suburban
- 1975-1976 GMC K15
- 1975-1976 GMC Jimmy
- 1975-1976 Chevrolet K5 Blazer
- 1975-1976 Chevrolet K10 Suburban
- 1975-1976 Chevrolet K10
- 1975-1976 GMC Jimmy Sierra Grande
- 1976 Chevrolet K5 Blazer
