BDS Suspension 3 Inch Lift Kit Toyota 4Runner 10-22 or FJ Cruiser 07-14 4WD NX2 Nitro Shocks (BDS809H)
Pickup currently unavailable at DEO In House Inventory
Raise up your 2010-2022 Toyota 4Runner and 2007-2014 Toyota FJ Cruiser and improve the ride with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32 inch Tires.
Specially designed for the 4Runner, this 3 inch lift kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.
Up front the lift kit includes top mounted steel strut spacers. In the rear this kit utilizes custom tuned BDS Pro-Ride coil springs and rear sway bar links. With the new stance set, NX2 series nitro shocks are used to retain the ride quality and allow full articulation of the rear suspension.
- Front Lift Method: Strut Spacer
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 2 inch
- Strut compressor required for installation.
- Other equivalent Tire/wheel size options should work - may require minor trimming for some combinations.
- Will not work on TRD Pro models equipped with the X-REAS shock system
- Will not work with factory KDSS sway bar system
- Easy, 100 percent Bolt-on installation
- Maintains factory like ride quality
- Rear high strength progressive rate coil springs for a great ride on any terrain
- Standard NX2 Nitro shocks with vehicle-specific valving for better control

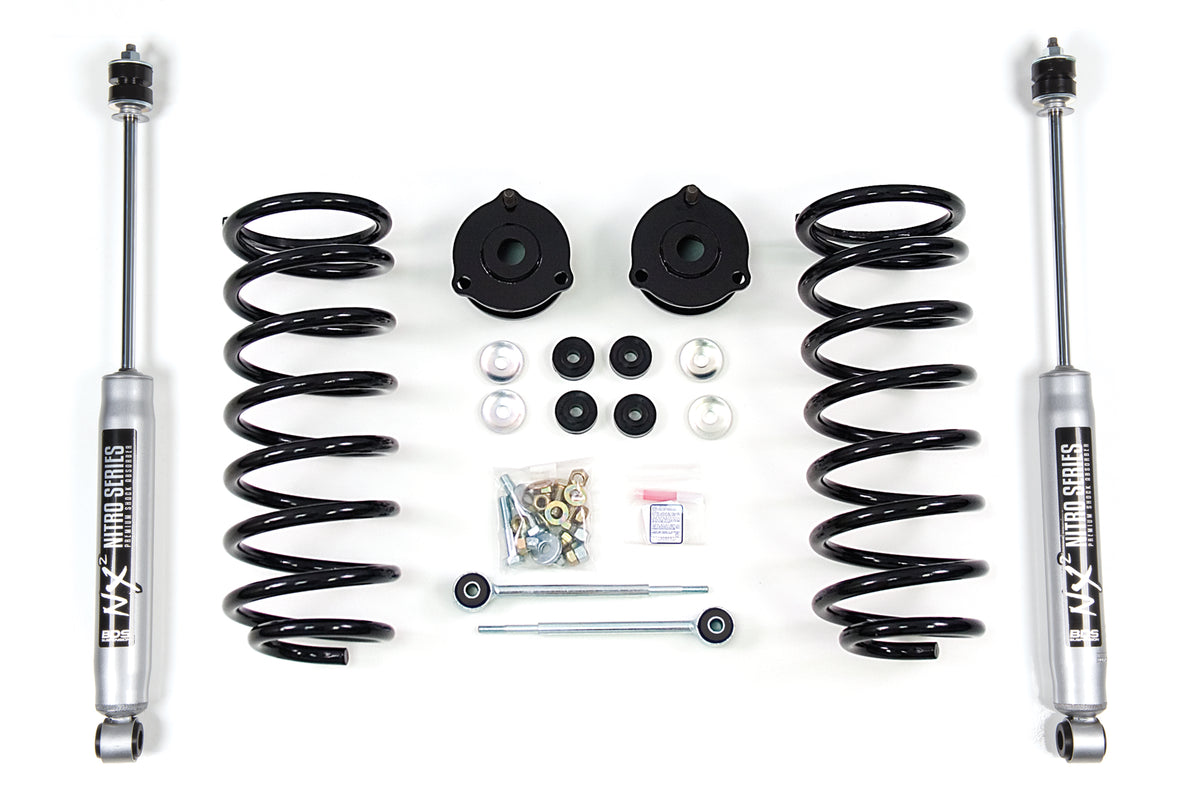

Kit Components:
- Includes one BDS018300, Toyota FJ Landcrser 3in Box Kit, UPC Code 658848614448
- Includes one BDS038209, 2010-2018 4 Runner / 2007-2014 FJ 3 inch Rear Coil Kit, UPC Code 658848617029
- Includes two BDS85879, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609945
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS809H |
| UPC | 840416421460 |
| Lift Height | 3.0 Inch |
| Front Lift Height | 3.0 Inch |
| Rear Lift Height | 1 inch |
| Drive | 4WD |
| Tire Size | 32 Inch |
| Shock Style | NX2 Nitro Shocks |
| Shocks Included | Yes |
| Finish | Powdercoat |
| Color | Silver |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 3 |
| Package Size (L x W x H) | 14.5 x 6.5 x 6 in 16.5 x 12.5 x 9.5 in 23.5 x 3 x 3 in |
| Package Weight | 53 lb |
Installation Instructions (PDF)
Watch the BDS Suspension Video
Fitment
- 2007-2014 Toyota FJ Cruiser
- 2010-2022 Toyota 4Runner
