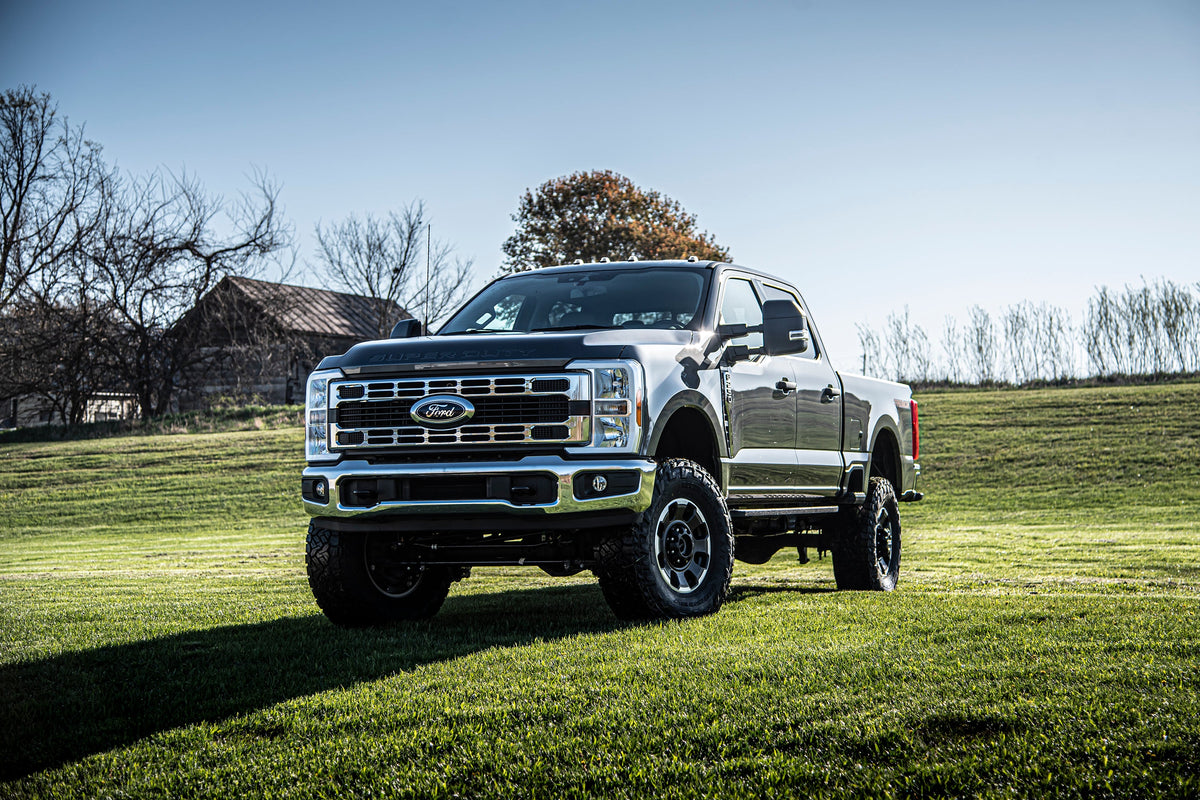

BDS Suspension 23-26 Ford F-250/F-350 Superduty 4WD 5 Inch 4-Link Suspension Lift Kit, 4 Inch Rear, Leaf Spring, Diesel - Fox 2.5 Performance Elite Series C/O Front, Fox 2.5 Performance Elite Series Rear BDS Suspension (BDS2248PES)
Pickup currently unavailable at DEO In House Inventory
Maximize the capability of your Ford Super Duty diesel powered truck with this 5-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
4-Link Conversion:
- Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
FOX Performance Elite Coil-Over:
- FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Steering Correction:
- To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 5.0 Inch
- Rear Lift Height: 4.0 Inch
- Fuel Type: Diesel
- Lift Height: 5.0 Inch
- Lift Type: 4-Link/Leaf Spring
- Material: Aluminum
- Engine Years: 2023-2026
- Engine Manufacturer: Powerstroke
- Shocks Included: Yes
- Series: Performance Elite Series
- Shock Style: FOX 2.5 Performance Elite Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS2248PES |
| UPC | 840416434323 |
| Lift Height | 5.0 Inch |
| Front Lift Height | 5.0 Inch |
| Rear Lift Height | 4.0 Inch |
| Lift Type | 4-Link/Leaf Spring |
| Drive | 4WD |
| Fuel Type | Diesel |
| Tire Size | 37 Inch |
| Shock Style | Fox 2.5 Performance Elite Shocks |
| Shocks Included | Yes |
| Engine | Powerstroke 2023-2026 |
| Finish | Powdercoat |
| Color | Black |
| Material | Aluminum |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 490.2 lb |
Watch the BDS Suspension Video
Fitment
- 2023-2024 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty King Ranch
- 2023-2025 Ford F-350 Super Duty Lariat
- 2023-2024 Ford F-350 Super Duty Limited
- 2023-2025 Ford F-350 Super Duty Platinum
- 2023-2025 Ford F-350 Super Duty XL
- 2023-2025 Ford F-350 Super Duty XLT
- 2025 Ford F-250 Super Duty King Ranch
- 2025 Ford F-250 Super Duty Lariat
- 2025 Ford F-250 Super Duty Platinum
- 2025 Ford F-250 Super Duty XL
- 2025 Ford F-250 Super Duty XLT
