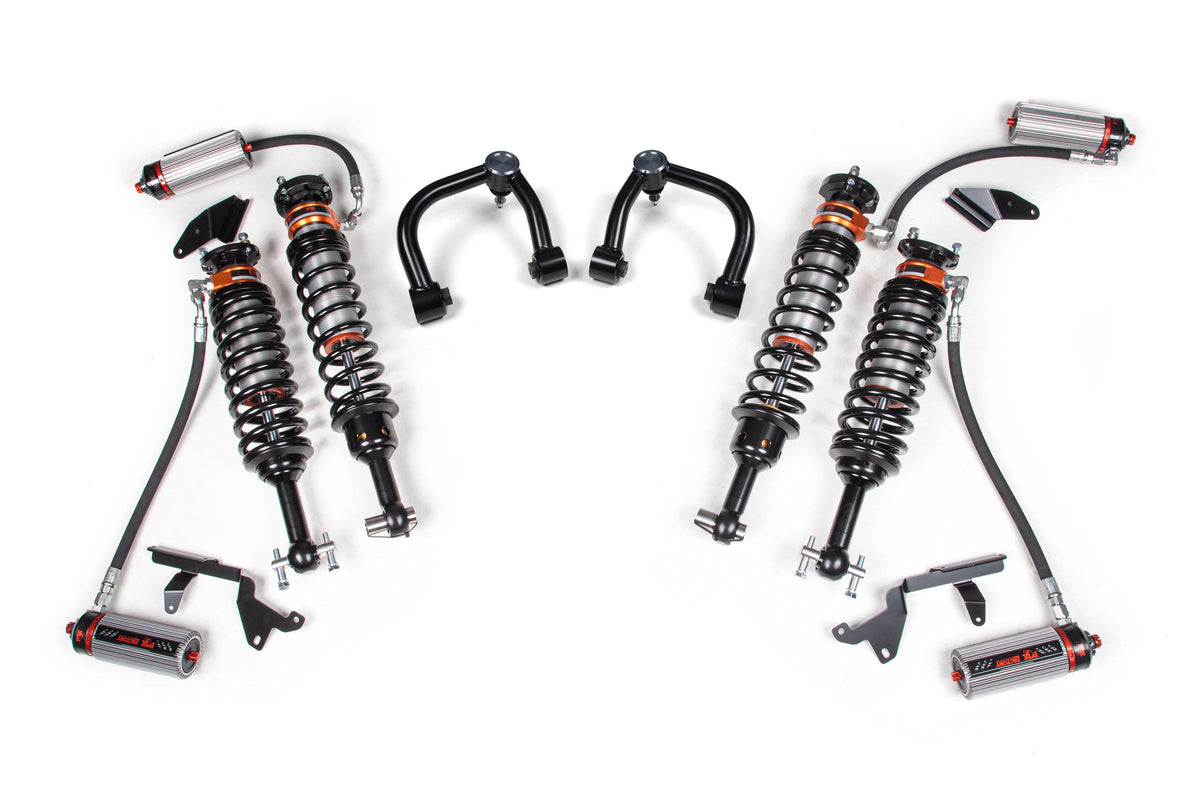

BDS Suspension 21-25 Ford Bronco Suspension Lift Kit, (Base 2DR/4DR, 4/4.5 Inch Front, 3-3.5 Inch Rear), (Sasquatch 2DR/4DR, 3-3.5 Inch Front, 2-2.5 Inch Rear), Fox 3.0 Factory Race Series C/O BDS Suspension (BDS2245FRS)
Pickup currently unavailable at DEO In House Inventory
Up the ante in your 2021-2025 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Factory Race Series 3.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes FOX Factory Race Series 3.0 coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 3.0 Factory Race Series coil-over shocks for an improved ride.
Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3 inch of lift, 4-Door Badlands: net 3.5 inch of lift, and 4-Door Broncos with the base suspension: net 4 inch of lift.
FOX Factory Race Series:
FOX 3.0 FRS shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 3-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs):
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed uniball or ball joint with correct positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 2.5 Inch
- Rear Lift Height: 3.5 Inch
- Lift Height: 2.5 Inch
- Lift Type: Coilover
- Material: Aluminum
- Engine Years: 2021-2025
- Shocks Included: Yes
- Series: Factory Race Series
- Shock Style: FOX 3.0 Factory Race IBP with DSC
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS2245FRS |
| UPC | 840416422313 |
| Lift Height | 2.5 Inch |
| Front Lift Height | 2.5 Inch |
| Rear Lift Height | 3.5 Inch |
| Lift Type | Coilover |
| Drive | 4WD |
| Doors | 2DR/4DR |
| Tire Size | 37 Inch |
| Shock Style | FOX 3.0 Factory Race IBP with DSC |
| Shocks Included | Yes |
| Engine | 2021-2025 |
| Finish | Powdercoat |
| Color | Black |
| Material | Aluminum |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 165.45 lb |
Watch the BDS Suspension Video
Fitment
- 2021 Ford Bronco
- 2022-2025 Ford Bronco Badlands
- 2022-2023 Ford Bronco
- 2022-2025 Ford Bronco Big Bend
- 2022-2024 Ford Bronco Black Diamond
- 2022-2024 Ford Bronco Everglades
- 2022-2025 Ford Bronco Outer Banks
- 2022-2024 Ford Bronco Wildtrak
- 2023-2025 Ford Bronco Heritage Edition
- 2023-2024 Ford Bronco Heritage Limited Edition
- 2025 Ford Bronco
- 2025 Ford Bronco Stroppe Edition
