BDS Suspension 21-25 Ford Bronco Suspension Lift Kit, (Base 2DR/4DR, 4/4.5 Inch Front, 3-3.5 Inch Rear), (Sasquatch 2DR/4DR, 3-3.5 Inch Front, 2-2.5 Inch Rear), Fox 2.5 Performance Elite Series C/O BDS Suspension (BDS2245FPE)
Pickup currently unavailable at DEO In House Inventory
Up the ante in your 2021-2025 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Elite 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front, the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Elite coil-over shocks for an improved ride.
Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3 inch of lift, 4-Door Badlands: net 3.5 inch of lift, and 4-Door Broncos with the base suspension: net 4 inch of lift.
FOX Performance Elite:

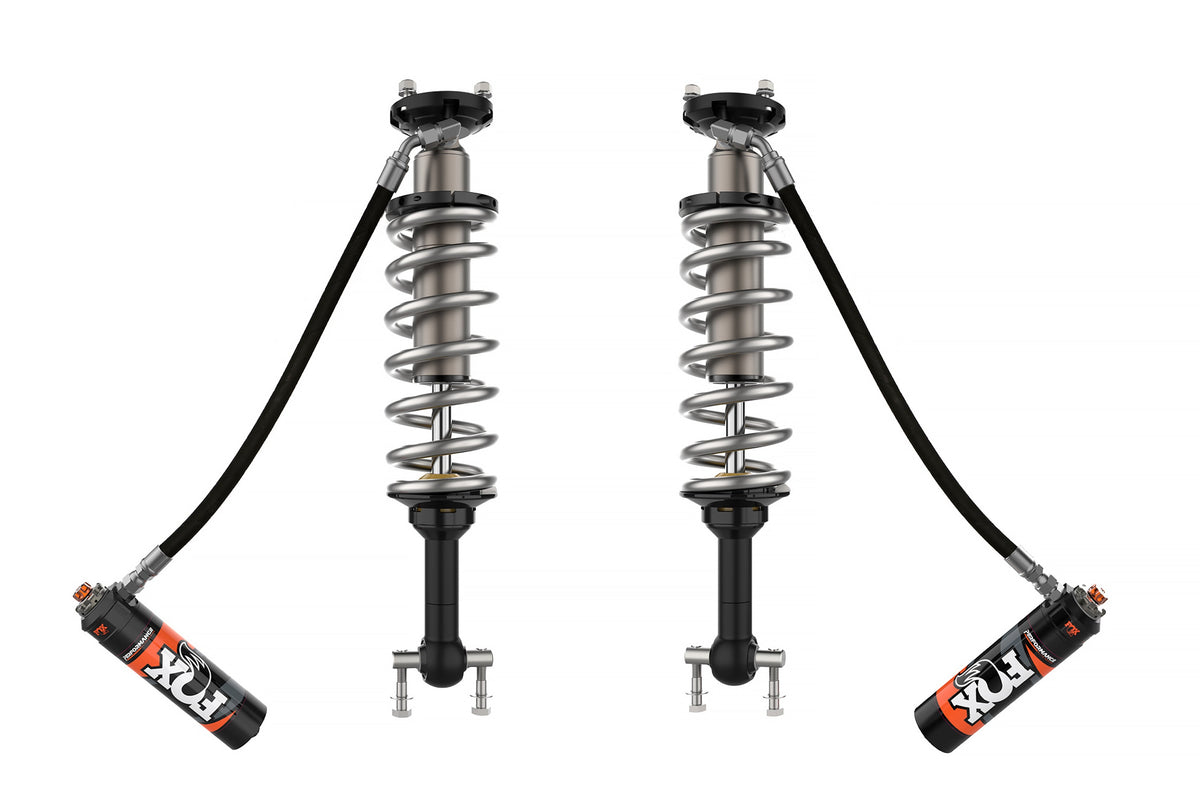

FOX 2.5 Performance Elite shocks offer next-level performance for on-road and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity, keeping your shocks cool so you can push the limits in rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels.
It features a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs):
Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed high-strength uniball or ball joint to correct the joint positioning, allowing additional down travel and camber adjustment.
At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation, while at the other end, quality greaseable ball joints ensure smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 3.5 Inch
- Rear Lift Height: 3.5 Inch
- Lift Height: 3.5 Inch
- Lift Type: Coilover
- Material: Aluminum
- Engine Years: 2021-2025
- Shocks Included: Yes
- Series: Performance Elite Series
- Shock Style: FOX 2.5 Performance Elite Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS2245FPE |
| UPC | 840416422306 |
| Lift Height | 3.5 Inch |
| Front Lift Height | 3.5 Inch |
| Rear Lift Height | 3.5 Inch |
| Lift Type | Coilover |
| Drive | 4WD |
| Doors | 2DR/4DR |
| Tire Size | 37 Inch |
| Shock Style | Fox 2.5 Performance Elite Shocks |
| Shocks Included | Yes |
| Engine | 2021-2025 |
| Finish | Powdercoat |
| Color | Black |
| Material | Aluminum |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 143.45 lb |
Watch the BDS Suspension Video
Fitment
- 2021-2025 Ford Bronco Badlands
- 2021-2023 Ford Bronco
- 2021-2025 Ford Bronco Big Bend
- 2021-2024 Ford Bronco Black Diamond
- 2021 Ford Bronco First Edition
- 2021-2025 Ford Bronco Outer Banks
- 2021-2024 Ford Bronco Wildtrak
- 2022-2024 Ford Bronco Everglades
- 2022-2025 Ford Bronco Raptor
- 2023-2025 Ford Bronco Heritage Edition
- 2023-2024 Ford Bronco Heritage Limited Edition
- 2025 Ford Bronco
- 2025 Ford Bronco Stroppe Edition
