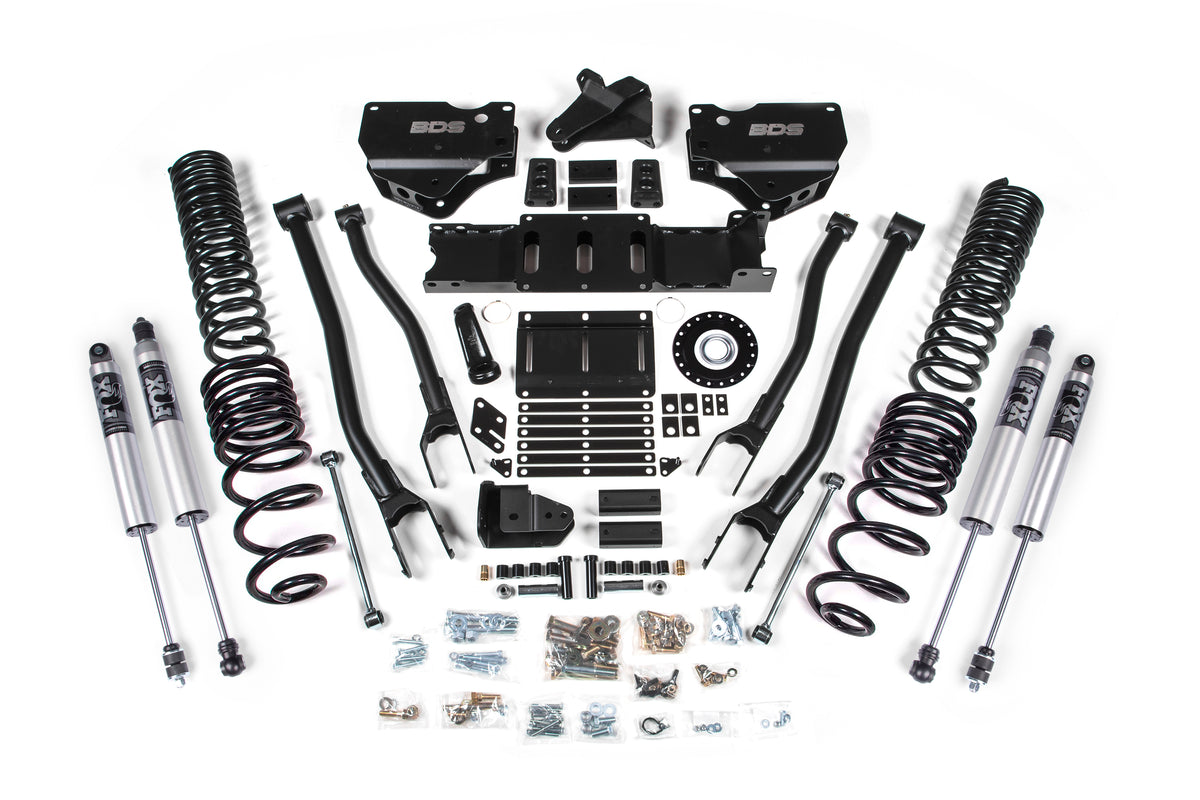

BDS Suspension 2025 Ram 2500 4WD (Diesel) 4 Inch Radius Arm Suspension Lift Kit - With Indexing Ring (Increased Travel), 2.5 Inch Rear Lift, Coil Spring - Fox 2.5 IFP PS Shocks BDS Suspension (BDS2138PS)
Pickup currently unavailable at DEO In House Inventory
This BDS Suspension 4-inch extended travel 4-Link Lift Kit, designed specifically for diesel-powered Ram 2500 trucks, improves ride quality, handling, and off-road capability while maintaining excellent on-road comfort. With clearance for up to 37-inch tires, it delivers a more aggressive stance while preserving proper driveline geometry and everyday drivability.
Up front, the kit features Pro-Ride coil springs engineered to support the added weight of the diesel platform while providing a smooth, controlled ride. A heavy-duty 4-link front suspension system replaces the factory control arms to properly position the front axle while significantly reducing suspension bind through the full range of travel.
By allowing each link to articulate independently, the 4-link design maintains more consistent caster and pinion angles, improving straight-line stability, steering return-to-center, braking control, and overall ride quality both on and off the road. The reinforced link construction delivers exceptional strength and long-term durability for demanding on-road use, towing, and off-road conditions.
A heavy-duty track bar bracket is included to precisely center the front axle and maintain accurate steering geometry. Also included is a brand-new 10-bolt transfer case indexing ring engineered to clock the transfer case for optimized driveline angles and increased suspension droop.
This indexing ring features an all-new, industry-leading seal developed specifically for motorsports applications, delivering superior sealing performance, reduced friction, and long-term durability under extreme heat and speed. By properly clocking the transfer case, this system allows increased suspension travel and improved off-road capability compared to lift kits that do not re-index the transfer case.
Additional components include sway bar links, brake line brackets, and premium shock absorbers matched to your selected configuration.
In the rear, lift is achieved using a pair of BDS Pro-Ride coil springs. Matching rear shocks are included to maintain balanced ride quality and consistent performance from front to rear.
Shock options allow you to fine-tune ride quality and performance to match your driving style. BDS NX2 Nitro shocks provide a comfortable, well-controlled ride for daily driving and light off-road use.
FOX 2.0 Performance Series IFP shocks feature aluminum construction and internal floating piston technology for consistent, fade-free performance. FOX 2.5 Performance Series IFP shocks increase oil capacity and cooling for enhanced damping control in more aggressive terrain.
At the top level, FOX 2.5 Performance Elite Series shocks with Dual Speed Compression (DSC) adjusters deliver race-inspired performance and tunability, allowing independent adjustment of low- and high-speed compression for maximum control and versatility.
Built with BDS Suspension’s uncompromising commitment to strength, ride quality, and long-term reliability, this 4-inch 4-link lift kit is the ideal upgrade for Ram 2500 owners seeking improved handling, corrected suspension geometry, increased suspension travel, and confidence-inspiring performance both on and off the road.
Details:
- Fits: 2025-2026 RAM 2500
- Drive: 4WD
- Material: Steel
- Finish: Powdercoat
- Color: Black
- Lift Height: 4.0 Inch
- Front Lift Height: 4.0 Inch
- Rear Lift Height: 2.5 Inch
- Fuel Type: Diesel
- Engine Manufacturer: Cummins
- Engine Years: 2025-2026
- Installation Time: 6-7 Hours
- Shocks Included: Yes
- Shock Style: Fox 2.5 Performance Shocks
- Lift Type: Radius Arm
- Tire Size: 37 Inch X 12.5
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Kit Components:
- BDS012269
- BDS012433
- BDS012434
- BDS032403 (x2)
- BDS122627
- FOX98724047 (x2)
- FOX98724048 (x2)
Recommended Accessories:
- BDS2031DF
- BDS2031DH
- FOX98502135
- FOX98302158
- BDS122324
- BDS122423
- BDS122633
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS2138PS |
| UPC | 840416441871 |
| Lift Height | 4.0 Inch |
| Front Lift Height | 4.0 Inch |
| Rear Lift Height | 2.5 Inch |
| Lift Type | Radius Arm |
| Drive | 4WD |
| Fuel Type | Diesel |
| Tire Size | 37 Inch X 12.5 |
| Shock Style | Fox 2.5 Performance Shocks |
| Shocks Included | Yes |
| Engine | Cummins 2025-2026 |
| Finish | Powdercoat |
| Color | Black |
| Material | Steel |
| Sold As | Kit |
| Installation Time | 6-7 Hours |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 36 in |
| Package Weight | 343.35 lb |
Watch the BDS Suspension Video
Fitment
- 2025-2026 Ram 2500 Big Horn
- 2025-2026 Ram 2500 Laramie
- 2025-2026 Ram 2500 Limited
- 2025-2026 Ram 2500 Limited Longhorn
- 2025-2026 Ram 2500 Lone Star
- 2025-2026 Ram 2500 Power Wagon
- 2025-2026 Ram 2500 Rebel
- 2025-2026 Ram 2500 Special Service
- 2025-2026 Ram 2500 Tradesman
- 2026 Ram 2500 Black Express
- 2026 Ram 2500 Warlock
