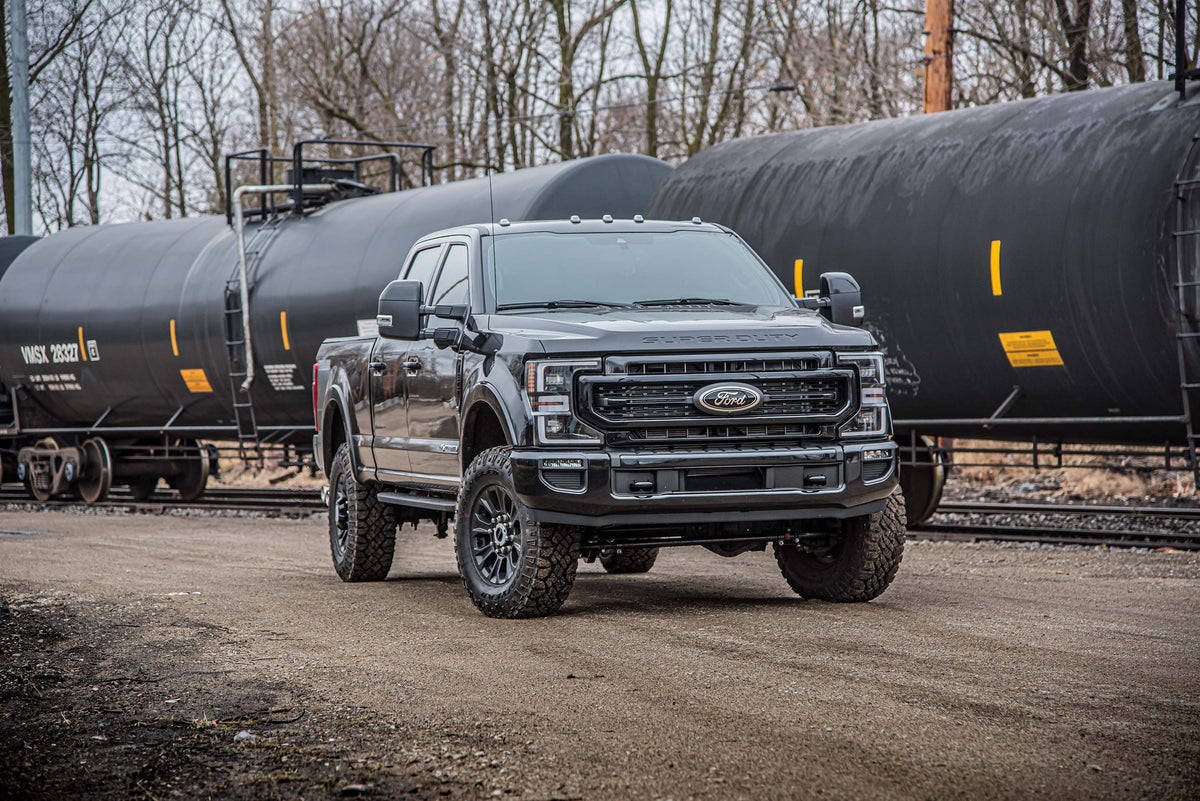

BDS Suspension 20-22 Ford F-250/F-350 4WD 5 Inch Radius Arm Suspension Lift Kit, 3 Inch Rear, Block, Diesel - Fox 2.5 Performance Elite Series C/O Front, Fox 2.5 Performance Elite Series Aux Front, Fox 2.5 Performance Elite Series Rear (BDS1968FPE)
Pickup currently unavailable at DEO In House Inventory
Built to outperform, upgrade your Ford Super Duty diesel powered truck with this 5-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 5.0 Inch
- Rear Lift Height: 3.0 Inch
- Fuel Type: Diesel
- Lift Height: 5.0 Inch
- Lift Type: Radius Arm/Block
- Engine Years: 2020-2022
- Engine Manufacturer: Powerstroke
- Shocks Included: Yes
- Series: Performance Elite Series
- Shock Style: FOX 2.5 Performance Elite Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1968FPE |
| UPC | 840416412260 |
| Lift Height | 5.0 Inch |
| Front Lift Height | 5.0 Inch |
| Rear Lift Height | 3.0 Inch |
| Lift Type | Radius Arm/Block |
| Drive | 4WD |
| Fuel Type | Diesel |
| Tire Size | 37 Inch |
| Shock Style | Fox 2.5 Performance Elite Shocks |
| Shocks Included | Yes |
| Engine | Powerstroke 2020-2022 |
| Finish | Powdercoat |
| Color | Black |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 271.05 lb |
Watch the BDS Suspension Video
Fitment
- 2020-2022 Ford F-250 Super Duty
- 2020-2022 Ford F-250 Super Duty King Ranch
- 2020-2022 Ford F-350 Super Duty King Ranch
- 2020-2022 Ford F-250 Super Duty Lariat
- 2020-2022 Ford F-350 Super Duty Lariat
- 2020-2022 Ford F-250 Super Duty Limited
- 2020-2022 Ford F-350 Super Duty Limited
- 2020-2022 Ford F-250 Super Duty Platinum
- 2020-2022 Ford F-350 Super Duty Platinum
- 2020-2022 Ford F-250 Super Duty XL
- 2020-2022 Ford F-350 Super Duty XL
- 2020-2022 Ford F-250 Super Duty XLT
- 2020-2022 Ford F-350 Super Duty XLT
