BDS Suspension 2 Inch Lift Kit FOX 2.5 Coil-Over Silverado/Sierra 1500 07-18 4WD Cast Steel Corntrol Arm Fox 2.5 Piggbak DSC (BDS757FDSC)
Pickup currently unavailable at DEO In House Inventory
Take your 2007-2018 Chevy Silverado and GMC Sierra 1500 truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
Dual Speed Compression Adjust Adjustment
FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad.
Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.
Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 0 inch
- 33x12.50 Tires will require weld on steering stop, also it requires inner fender well modification to clear this width Tire
- Will Not fit MagneRide magnetic ride control equipped models
- FOX 2.5 Factory series coil-overs offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Factory Control Arm Type - Cast Steel
Important: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks.
Cast Steel control arm equipped models will require theCast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit.
Tire Size: 285 / 70 Tire Size 2: 33 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 94.5

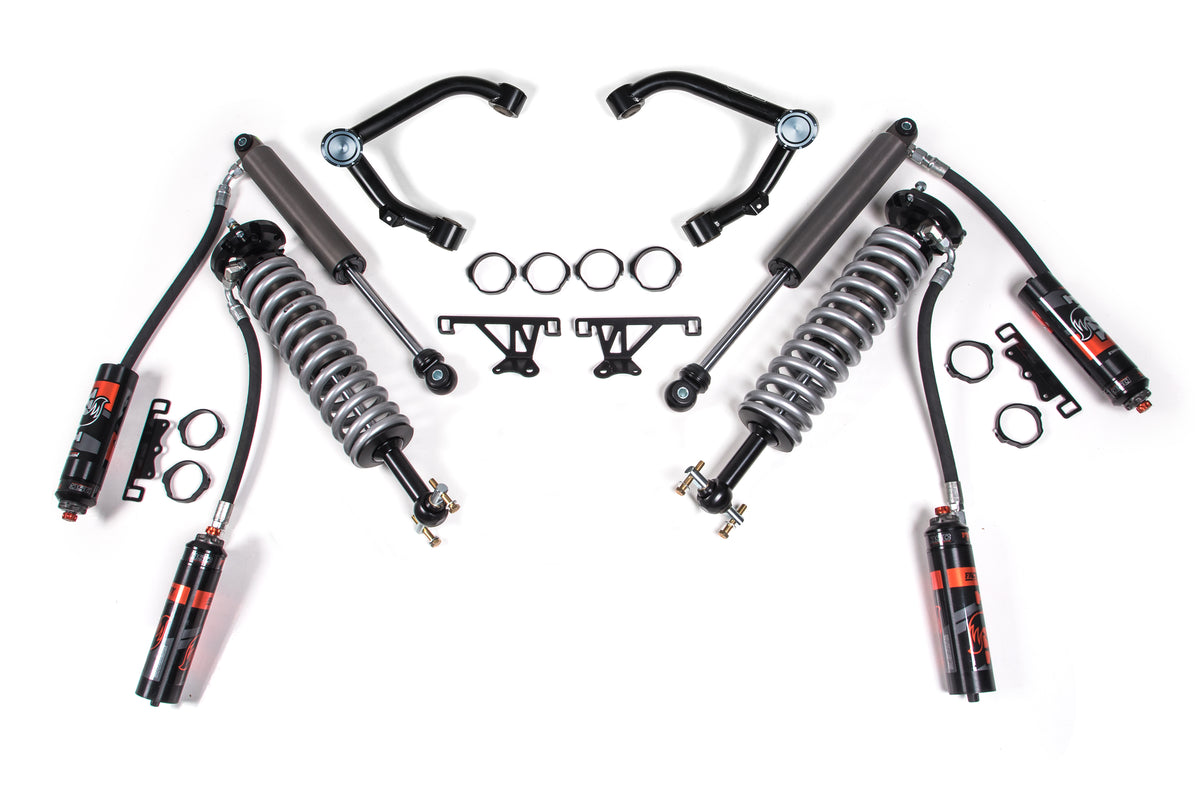

Kit Components:
- Includes one BDS121151, 07-18 Chevy 1500 UCA Kit -Cast Steel UCA, UPC Code 658848618880
- Includes one FOX88306121, Kit: 07-ON Chevy 1500 Front Coilover, 2.5 Series, R/R, 4.4 inch, 0-2 inch Lift, Dual Speed Compression Adjust, UPC Code 714686852166
- Includes one FOX88326003, Kit: 07-On Chevy 1500 Rear, 2.5 Series, P/B, 9.0 inch, 0-1.5 inch Lift, Dual Speed Compression Adjust, UPC Code 714686852593
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS757FDSC |
| UPC | 840416421262 |
| Lift Height | 2.0 Inch |
| Front Lift Height | 2.0 Inch |
| Rear Lift Height | 0.0 Inch |
| Drive | 4WD |
| Tire Size | 33 Inch |
| Shock Style | Fox 2.5 Piggyback DSC |
| Shocks Included | Yes |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 3 |
| Package Size (L x W x H) | 19 x 12 x 6 in 31.5 x 17.5 x 8.5 in 31.5 x 17.5 x 8.5 in |
| Package Weight | 135.4 lb |
Watch the BDS Suspension Video
Fitment
- 2007-2018 Chevrolet Silverado 1500
- 2007-2018 GMC Sierra 1500
- 2007-2013 GMC Sierra 1500 WT
- 2007-2018 Chevrolet Silverado 1500 WT
- 2007-2018 GMC Sierra 1500 SLT
- 2007-2018 GMC Sierra 1500 SLE
- 2007-2013 GMC Sierra 1500 SL
- 2007-2018 Chevrolet Silverado 1500 LTZ
- 2007-2018 Chevrolet Silverado 1500 LT
- 2007-2013 Chevrolet Silverado 1500 LS
- 2007-2018 GMC Sierra 1500 Denali
- 2009-2013 GMC Sierra 1500 Hybrid
- 2009-2013 Chevrolet Silverado 1500 Hybrid
- 2010-2013 Chevrolet Silverado 1500 XFE
- 2010-2013 GMC Sierra 1500 XFE
- 2014-2018 Chevrolet Silverado 1500 High Country
- 2014-2018 GMC Sierra 1500
- 2015-2018 Chevrolet Silverado 1500 LS
- 2015-2018 Chevrolet Silverado 1500 SSV
- 2016-2018 Chevrolet Silverado 1500 Custom
