BDS Suspension 2 Inch Lift Kit FOX 2.0 Snap Ring Strut Toyota Tacoma 05-15 4WD (BDS833FSR)
Pickup currently unavailable at DEO In House Inventory
Built to outperform, upgrade your 2005-2015 Toyota Tacoma with this 2-inch lift kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32 inch Tires.
Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
FOX 2.0 Snap Ring Strut
The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The Internal Floating Piston eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.
Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 0 inch
- 265/75R16 Tires on the stock wheels or equivalent.

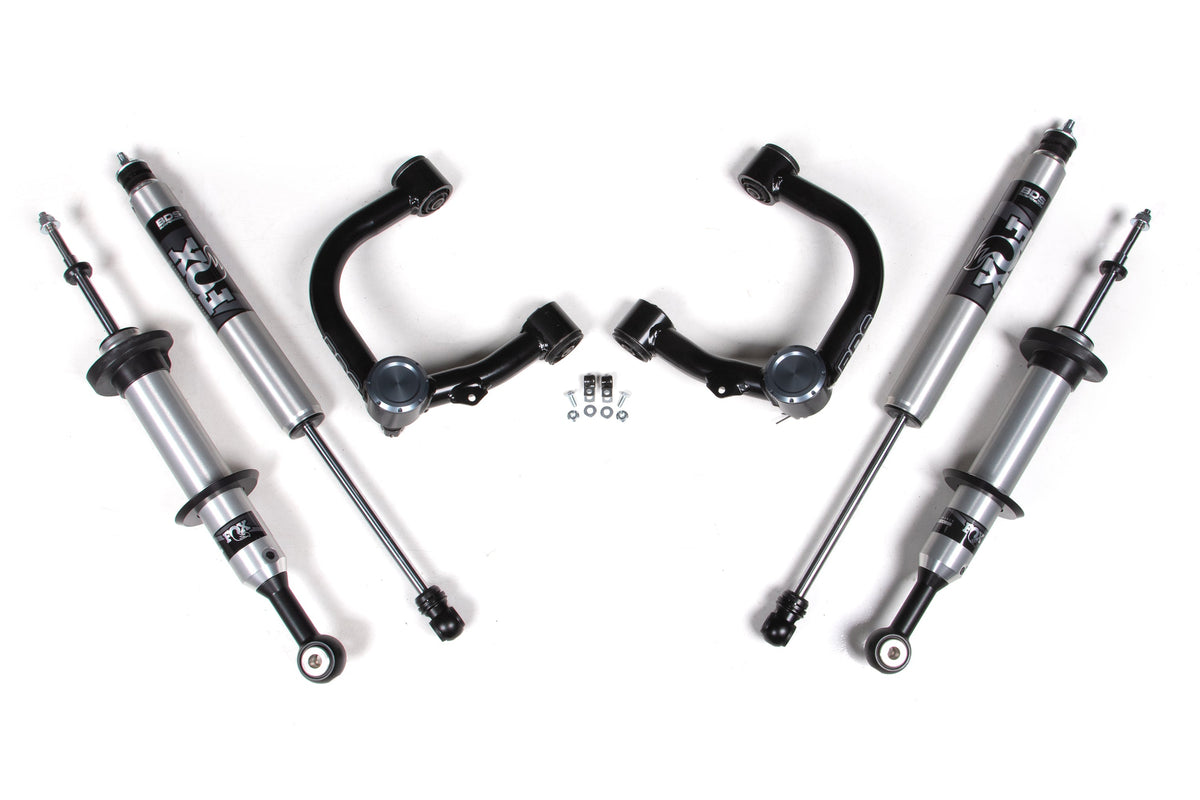

Kit Components:
- Includes one BDS128252, 2005-2023 Toyota Tacoma UCA Kit, UPC Code 711745607897
- Includes two FOX98024670, 05-ON Toyota Tacoma Rear, PS, 2.0, Internal Floating Piston, 8.1 inch, 0-1 Inch Lift
- Includes two FOX98562011, 05-23 Toyota Tacoma, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 4.8 inch, 1-2 inch Lift, UPC Code 711745590342
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS833FSR |
| UPC | 840416421910 |
| Lift Height | 2.0 Inch |
| Front Lift Height | 2.0 Inch |
| Rear Lift Height | 0.0 Inch |
| Drive | 4WD |
| Tire Size | 32 Inch |
| Shock Style | Fox 2.0 Performance Shocks |
| Shocks Included | Yes |
| Finish | Anodized |
| Color | Clear |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 2 |
| Package Size (L x W x H) | 19 x 12 x 6 in 34.5 x 6 x 3 in |
| Package Weight | 29.85 lb |
Watch the BDS Suspension Video
Fitment
- 2005-2015 Toyota Tacoma
- 2005-2015 Toyota Tacoma Pre Runner
- 2005-2013 Toyota Tacoma X-Runner
- 2015 Toyota Tacoma TRD Pro
