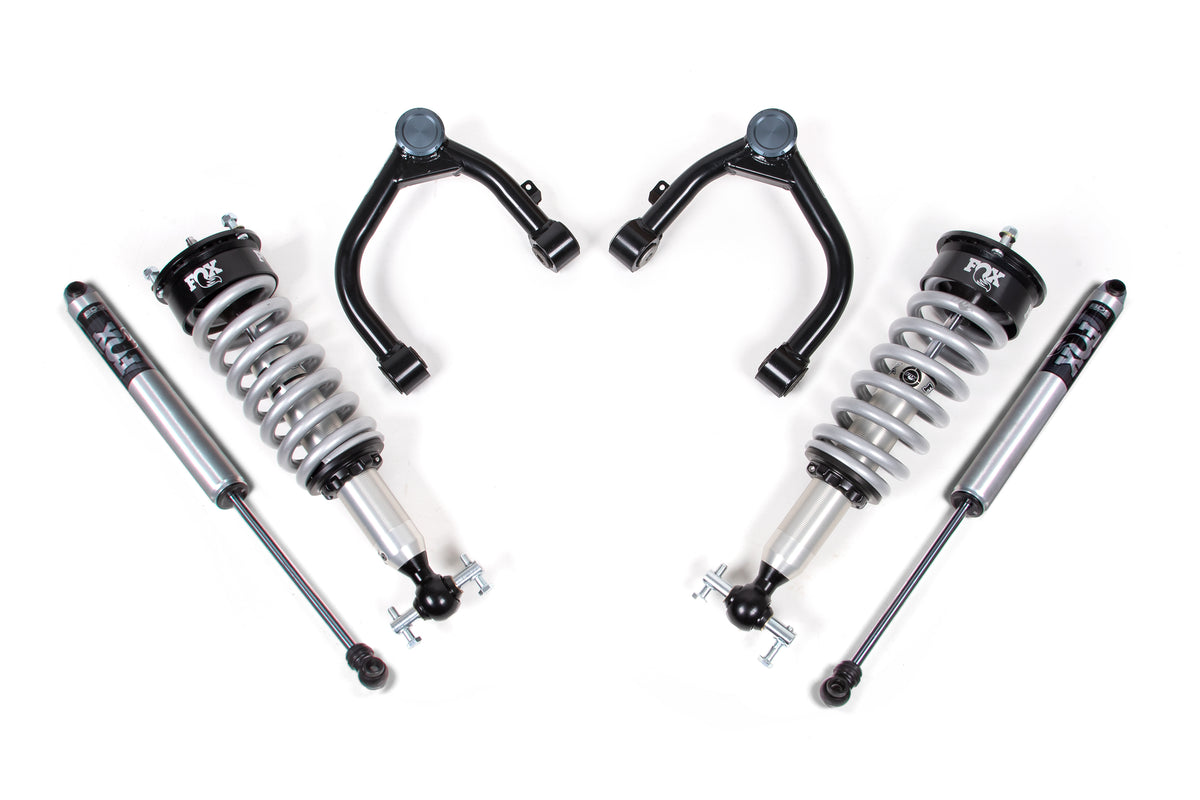

BDS Suspension 2 Inch Lift Kit FOX 2.0 Coil-Over Silverado/Sierra 1500 19-24 4WD (BDS770FSL)
Pickup currently unavailable at DEO In House Inventory
Level out your Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
FOX 2.0 Coil-Over Shocks
These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut.
They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 0 inch
- Requires a maximum of 5.5 inch BS Wheel for Tire clearance to the upper ball joint when used on 2-3.5 inch kits
- Can be used on Trail Boss / AT4 models, but will net 0 inch lift
- Will not fit models equipped with ARC
- FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Tire Size: 295 / 65 Tire Size 2: 295 / 60 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/5.53-4 hrs
Kit Components:
- Includes one BDS121253, X - 2019-2024 GM 1500 Upper Control Arm Kit - 2 inch and 6 inch Lift Applications Only, UPC Code 658848618941
- Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
- Includes two FOX98502134, 2019-2024 GM 1500 Front Coilover, PS, 2.0, Internal Floating Piston, NON-TB/NOT-AT4 0-2 inch Lift, TB/AT4 NO inch Lift, UPC Code 658848620593
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS770FSL |
| UPC | 840416421385 |
| Lift Height | 2.0 Inch |
| Front Lift Height | 2.0 Inch |
| Rear Lift Height | 0.0 Inch |
| Drive | 4WD |
| Tire Size | 33 Inch |
| Shock Style | Fox Performance |
| Shocks Included | Yes |
| Finish | Anodized |
| Color | Clear |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 3 |
| Package Size (L x W x H) | 16.5 x 12.5 x 9.5 in 29 x 3 x 3 in 30 x 6 x 6 in |
| Package Weight | 79.2 lb |
Watch the BDS Suspension Video
Fitment
- 2014-2025 GMC Sierra 1500 SLE
- 2014-2021 GMC Sierra 1500
- 2014-2024 GMC Sierra 1500 Denali
- 2014-2025 Chevrolet Silverado 1500 WT
- 2014-2024 Chevrolet Silverado 1500 High Country
- 2014-2025 Chevrolet Silverado 1500 LT
- 2014-2025 Chevrolet Silverado 1500 LTZ
- 2014-2025 GMC Sierra 1500 SLT
- 2015-2018 Chevrolet Silverado 1500 LS
- 2015-2021 Chevrolet Silverado 1500 SSV
- 2016-2025 Chevrolet Silverado 1500 Custom
- 2019-2025 GMC Sierra 1500 AT4
- 2019-2020 Chevrolet Silverado 1500 WT Doble Cabina
- 2019-2020 Chevrolet Silverado 1500 WT Cab Regular
- 2019-2025 Chevrolet Silverado 1500 LT Trail Boss
- 2019-2025 Chevrolet Silverado 1500 RST
- 2019-2025 GMC Sierra 1500 Elevation
- 2019-2025 Chevrolet Silverado 1500 Custom Trail Boss
- 2022-2025 GMC Sierra 1500 Pro
- 2022-2024 GMC Sierra 1500 AT4X
- 2022-2024 GMC Sierra 1500 Denali Ultimate
- 2022-2024 Chevrolet Silverado 1500 ZR2
- 2023-2025 Chevrolet Silverado 1500 PPV
