BDS Suspension 2 Inch Lift Kit FOX 2.0 Coil-Over Ram 1500 13-18 4WD (BDS1665FSL)
Pickup currently unavailable at DEO In House Inventory
Level out your 2013-2018 RAM 1500 4WD truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
FOX 2.0 Coil-Over Shocks
These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 0 inch
- The stock wheel/Tire can be reinstalled. Stock wheel with wider 12.50 Tires cannot due to clearance issue to UCA at full steering lock.
- Vehicles equipped with Offroad or Rebel Package will not achieve the full 2 inch of lift, net ride height change will be around 1 inchabove stock.
- Will not fit adjustable air suspension equipped models.
- FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 53-4 hrs
- The stock wheel/Tire can be reinstalled. Stock wheel with wider 12.50 Tires cannot due to clearance issue to UCA at full steering lock.
- Vehicles equipped with Offroad or Rebel Package will not achieve the full 2 inch of lift, net ride height change will be around 1 inchabove stock.
- Will not fit adjustable air suspension equipped models.

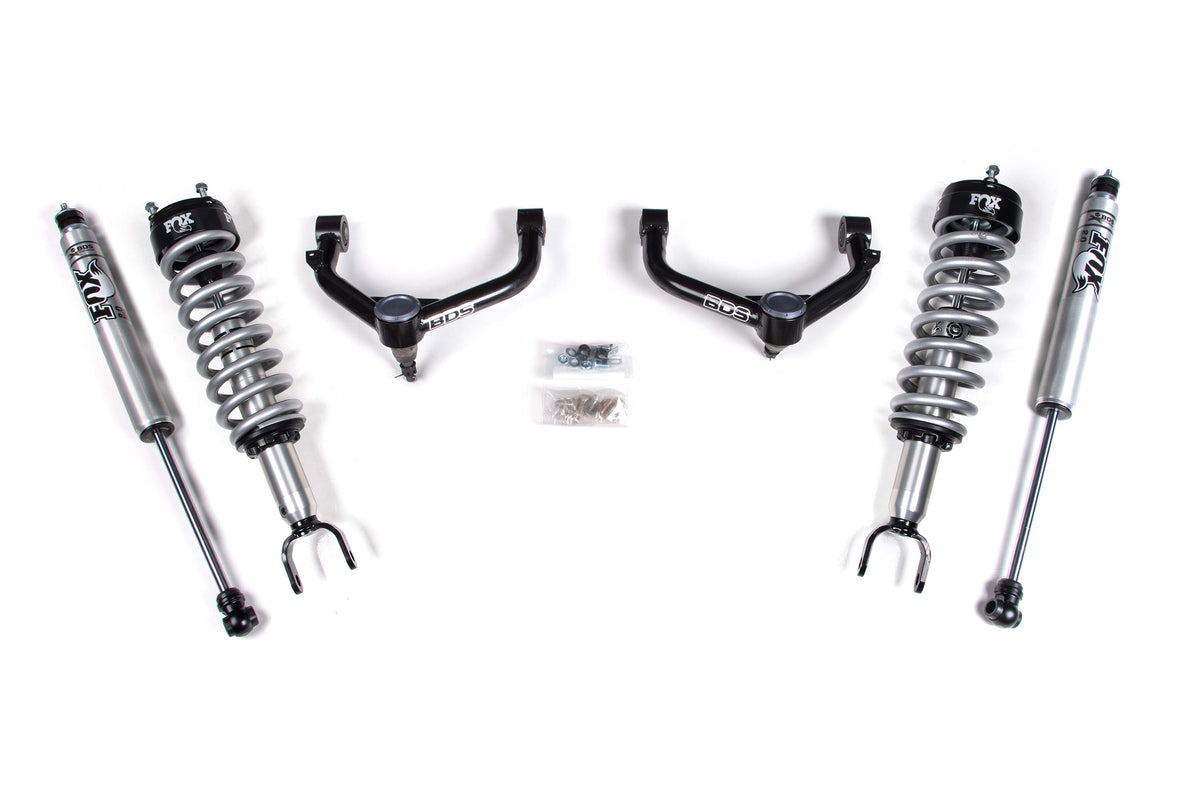

Kit Components:
- Includes one BDS122253, 2006-2023 Ram 1500 UCA Kit - 2-3 inch Lift Height, UPC Code 658848619368
- Includes two FOX98224712, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
- Includes two FOX98302050, 06-ON Dodge 1500 4WD Front Coilover, PS, 2.0, Internal Floating Piston, 5.4 inch 0-2 inch Lift, UPC Code 714686857659
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1665FSL |
| UPC | 840416403701 |
| Lift Height | 2.0 Inch |
| Front Lift Height | 2.0 Inch |
| Rear Lift Height | 0.0 Inch |
| Drive | 4WD |
| Fuel Type | Gas |
| Tire Size | 33 Inch |
| Shock Style | Fox Performance |
| Shocks Included | Yes |
| Finish | Anodized |
| Color | Clear |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 3 |
| Package Size (L x W x H) | 17 x 13 x 9 in 29 x 3 x 3 in 28.75 x 5.75 x 5.75 in |
| Package Weight | 75.3 lb |
Watch the BDS Suspension Video
Fitment
- 2013-2018 Ram 1500 Tradesman
- 2013-2018 Ram 1500 Big Horn
- 2013-2018 Ram 1500 SXT
- 2013-2018 Ram 1500 ST
- 2013-2018 Ram 1500 Sport
- 2013-2018 Ram 1500 SLT
- 2013 Ram 1500 R/T
- 2013-2018 Ram 1500 Outdoorsman
- 2013-2018 Ram 1500 Laramie
- 2013-2018 Ram 1500 Laramie Longhorn
- 2013-2018 Ram 1500 HFE
- 2013-2018 Ram 1500 Express
- 2014-2018 Ram 1500 Lone Star
- 2014-2018 Ram 1500 Laramie Limited
- 2014-2018 Ram 1500 Special Service
- 2015-2018 Ram 1500 Limited
- 2015-2018 Ram 1500 Rebel
- 2019-2021 Ram 1500 Classic
