BDS Suspension 2 Inch Lift Kit Coil Spring Jeep Wrangler JK 12-18 4-Door NX2 Nitro Shocks (BDS1430H)
SKU: BDS1430H

BDS Suspension 2 Inch Lift Kit Coil Spring Jeep Wrangler JK 12-18 4-Door NX2 Nitro Shocks (BDS1430H)

$673.60
By BDS Suspension

Improve the ride and style of your 2012-2018 Jeep Wrangler JK 4 Door with this 2-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires at an affordable price.

The lift kit includes front and rear BDS Pro-Ride Coil Springs, bump stop extensions, front lower control arm cam bolts and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 2 inch
  • Rear Lift Height: 2 inch
  1. 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
  2. This kit is FMVSS No.126 Compliant
  • ProRide coil springs offer improved ride quality and more articulation
  • Extended sway bar links for improved offroad flex
  • Lower cam locks to correct caster for alignment
  • Bump stop spacers to prevent harsh bottom outs
  • Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
  • Allows clearance for 33 inch Tires

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

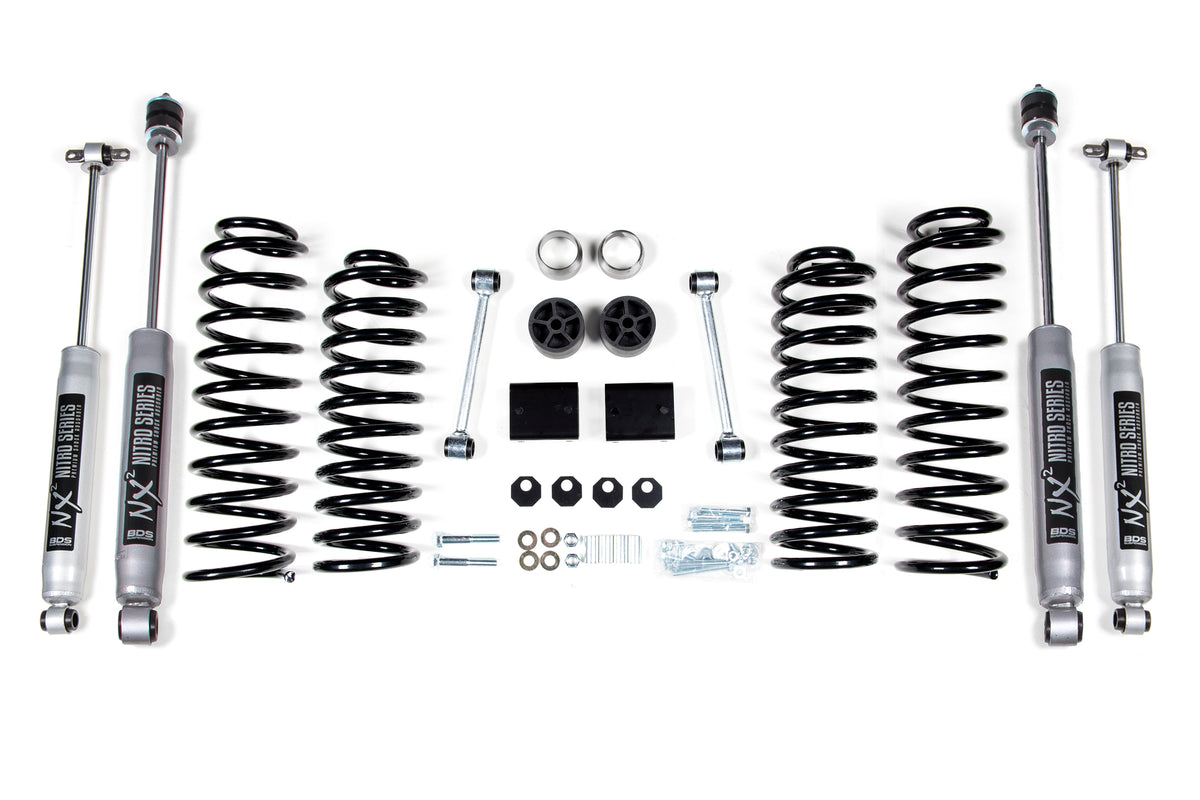

Kit Components:

  • Includes one BDS034202, 2007-2018 Jeep Wrangler (JK) 4 Door 2 Inch Front Coil Kit, UPC Code 658848616633
  • Includes one BDS034209, 2007-2018 Jeep Wrangler (JK) 2 Door /3in 4 Door/2in Rear Coil Springs, UPC Code 658848616701
  • Includes one BDS124314, 2012-18 Jeep Wrangler JK Exhaust Extension Kit, UPC Code 711745605015
  • Includes one BDS124320, 2007-2018 Jeep Wrangler (JK) 2-4.5in Front Sway Bar Links Solid, UPC Code 711745605039
  • Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
  • Includes two BDS85951, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610040

Specifications

Brand BDS Suspension
Part Number BDS1430H
UPC 840416410822
Lift Height 2.0 Inch
Front Lift Height 2.0 Inch
Rear Lift Height 2.0 Inch
Doors 4 Door
Tire Size 33 Inch
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 6
Package Size (L x W x H) 19 x 12 x 6 in
19 x 12 x 6 in
9 x 3 x 2 in
20.5 x 3 x 2.5 in
23.5 x 3 x 3 in
23.5 x 3 x 3 in
Package Weight 85.75 lb

Watch the BDS Suspension Video

Fitment

  • 2012 Jeep Wrangler Unlimited
  • 2012 Jeep Wrangler Unlimited Mountain
  • 2012-2017 Jeep Wrangler Unlimited Sport
  • 2012-2017 Jeep Wrangler Unlimited Rubicon
  • 2012-2017 Jeep Wrangler Unlimited Sahara
  • 2012 Jeep Wrangler Unlimited Altitude
  • 2014 Jeep Wrangler Unlimited Willys Wheeler
  • 2015 Jeep Wrangler Unlimited Hard Rock
  • 2015 Jeep Wrangler Unlimited Altitude
  • 2016 Jeep Wrangler Unlimited Black Bear
  • 2016 Jeep Wrangler Unlimited 75th Anniversary
  • 2016 Jeep Wrangler Unlimited Sport S
  • 2017 Jeep Wrangler Unlimited Smoky Mountain
  • 2017 Jeep Wrangler Unlimited Winter Edition
  • 2018 Jeep Wrangler JK Unlimited Rubicon
  • 2018 Jeep Wrangler JK Unlimited Sahara
  • 2018 Jeep Wrangler JK Unlimited Sport
  • 2018 Jeep Wrangler JK Unlimited Sport S
  • 2018 Jeep Wrangler JK Unlimited Willys Wheeler
