BDS Suspension 2 Inch Lift Kit Coil-Over Ram 1500 19-24 4WD2.5 Fox Performance Elite Series Coilover w/Dual Speed Compression Adjust 2.5 Fox Performance Elite Shocks (BDS1740FPE)
Pickup currently unavailable at DEO In House Inventory
Up the ante in your 2019-2024 RAM 1500 4WD truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 0 inch
- Fits 4WD models only
- Vehicles equipped with inchOffroad or Rebel Package inch will not achieve full 2 inch of lift, net ride height change will be around 1 inchabove stock.
- Will not fit vehicle equipped with factory Air Ride.
- Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
- FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
- Dual Speed Compression Adjust Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Rear Shock Option
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Tire Size: 295 / 65 Wheel Diameter: 20 x 9 Back Spacing: 5

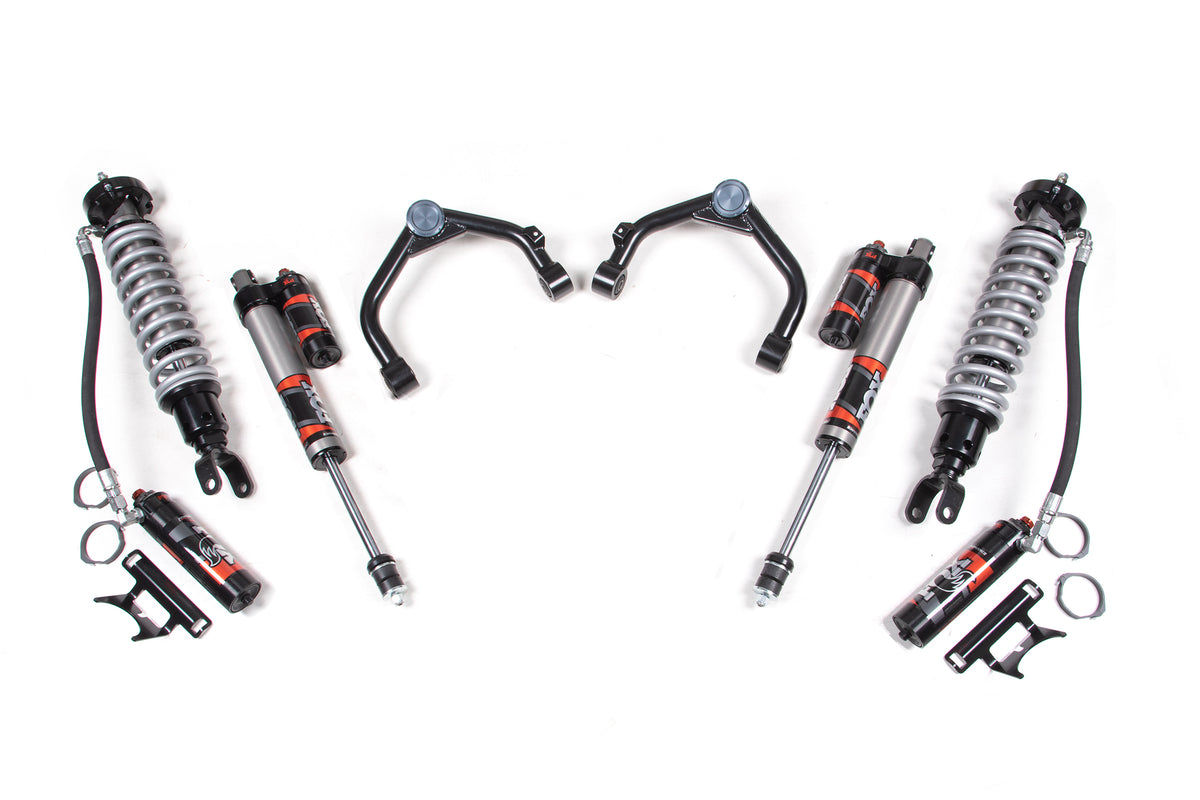

Kit Components:
- Includes one BDS122253, 2006-2023 Ram 1500 UCA Kit - 2-3 inch Lift Height, UPC Code 658848619368
- Includes one FOX88306165, Kit: 19-ON Ram 1500, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 2 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326079, Kit: 19-ON Ram 1500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 0-2 inch Lift, Dual Speed Compression Adjust
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1740FPE |
| UPC | 840416413076 |
| Lift Height | 2.0 Inch |
| Front Lift Height | 2.0 Inch |
| Rear Lift Height | 0.0 Inch |
| Drive | 4WD |
| Tire Size | 33 Inch |
| Shock Style | Fox 2.5 Performance Elite Shocks |
| Shocks Included | Yes |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 3 |
| Package Size (L x W x H) | 17 x 13 x 9 in 31.5 x 17.5 x 8.5 in 32 x 19 x 10 in |
| Package Weight | 112.5 lb |
Watch the BDS Suspension Video
Fitment
- 2019-2025 Ram 1500 Big Horn
- 2019-2025 Ram 1500 Lone Star
- 2019-2025 Ram 1500 Tradesman
- 2019 Ram 1500 SXT
- 2019-2021 Ram 1500 ST
- 2019-2023 Ram 1500 Sport
- 2019-2023 Ram 1500 SLT
- 2019-2023 Ram 1500 Longhorn
- 2019-2024 Ram 1500 Rebel
- 2019-2025 Ram 1500 Limited
- 2019-2023 Ram 1500 Laramie Sport
- 2019-2021 Ram 1500 Laramie Longhorn
- 2019-2025 Ram 1500 Laramie
- 2019-2023 Ram 1500 HFE
- 2020-2021 Ram 1500 Special Service
- 2020-2023 Ram 1500 Hemi Sport
- 2021-2025 Ram 1500 Limited Longhorn
- 2021-2023 Ram 1500 TRX
- 2021 Ram 1500 TRX Launch Edition
- 2023 Ram 1500 Big Horn OffRoad
- 2025 Ram 1500 Tungsten
- 2025 Ram 1500 Warlock
