BDS Suspension 2 Inch Lift Kit Chevy Trailblazer or GMC Envoy 02-09 Fox 2.0 Performance Shocks (BDS168FS)
Pickup currently unavailable at DEO In House Inventory
Level out your 2002-2009 Chevy Trailblazer or GMC Envoy by installing this 2-inch lift kit from BDS. Specially designed for the GM SUV's, this 2 inch lift kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.
To prevent maxing out ball joints or CV damage, BDS gets around this issue with a one piece mount increases the pre-load of the strut as well as increases the over all length of the strut assembly.

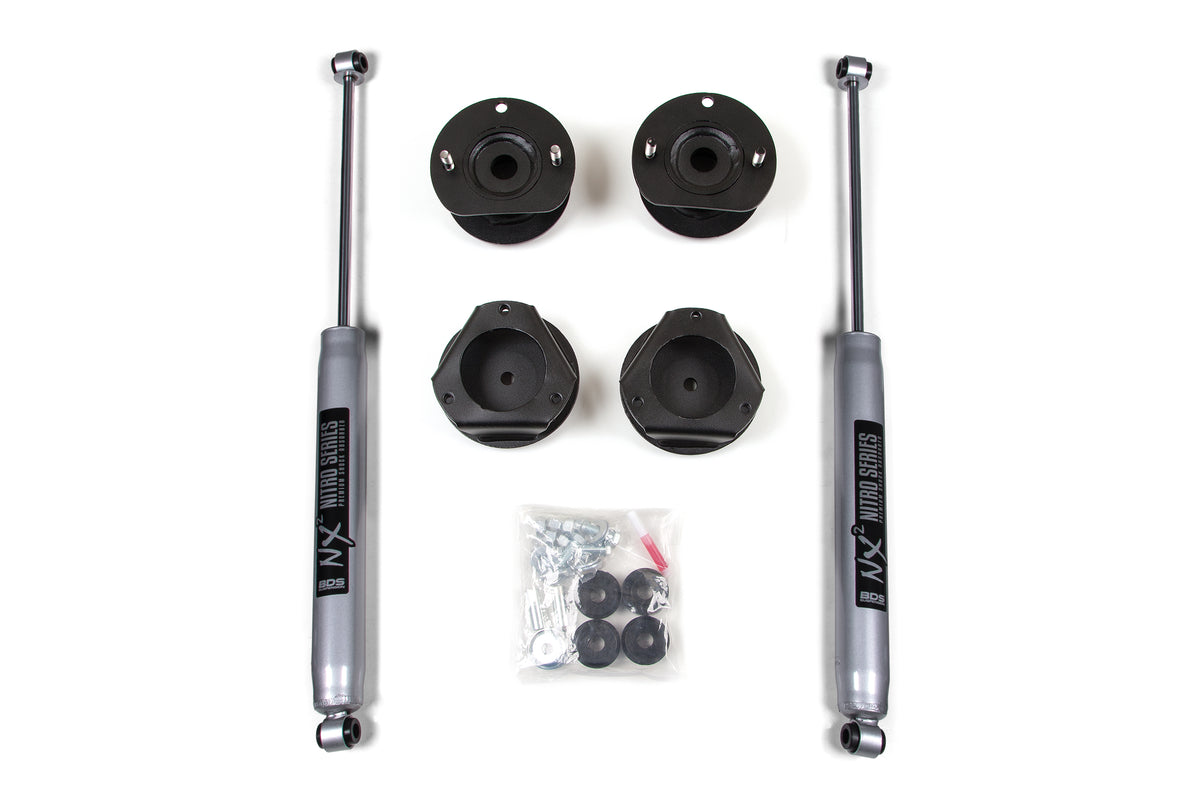

The lift kit Includes steel top mount strut spacers, rear coil spring mounts and custom-tuned NX2 Nitro or FOX Performance series shocks.
- Front Lift Method: Strut Spacer
- Rear Lift Method: Spacer
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 2 inch
- Strut compressor required for installation
- Will not fit vehicles equipped with a rear air-ride system
- Will fit Ext and XL models
- Front only kit available as part #121201
- Easy, 100 percent Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Kit Components:
- Includes one BDS011201, 02-09 GM Trail/Envoy 2 Inch Box Kit, UPC Code 658848611676
- Includes two FOX98224619, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS168FS |
| UPC | 840416413038 |
| Lift Height | 2.0 Inch |
| Front Lift Height | 2.0 Inch |
| Rear Lift Height | 2.0 Inch |
| Drive | 4WD |
| Shock Style | Fox 2.0 Performance Shocks |
| Shocks Included | Yes |
| Finish | Anodized |
| Color | Clear |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 2 |
| Package Size (L x W x H) | 14.5 x 6.5 x 6 in 29 x 3 x 3 in |
| Package Weight | 25.5 lb |
Watch the BDS Suspension Video
Fitment
- 2002 Chevrolet Trailblazer
- 2002-2009 GMC Envoy
- 2002-2007 Chevrolet Trailblazer LS
- 2002-2009 Chevrolet Trailblazer LT
- 2002-2003 Chevrolet Trailblazer LTZ
- 2002-2004 Chevrolet Trailblazer North Face
- 2002-2009 GMC Envoy SLE
- 2002-2009 GMC Envoy SLT
- 2005-2009 GMC Envoy Denali
- 2006-2009 Chevrolet Trailblazer SS
- 2008 Chevrolet Trailblazer
