BDS Suspension 2 Inch Leveling Kit Coil Spacer Ford F250/F350 Super Duty 17-22 4WD NX2 Nitro Shocks (BDS1519H)
SKU: BDS1519H

BDS Suspension 2 Inch Leveling Kit Coil Spacer Ford F250/F350 Super Duty 17-22 4WD NX2 Nitro Shocks (BDS1519H)

$518.75
By BDS Suspension

Level the stance of your 2017-2019 Ford F250 and F350 Super Duty truck by installing this 2-inch coil spacer leveling kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires at an affordable price.

Up front the lift kit includes billet aluminum coil spacers, track bar bracket for steering correction, alignment cams, and custom-tuned nitrogen charged shocks.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spacer
  • Rear Lift Method: None
  • Shocks Included: Yes
  • Front Lift Height: 2 Inch
  • Rear Lift Height: 0 Inch
  • Easy, 100 percent Bolt-on installation
  • Maintains factory like ride quality
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

  • Front Lift Method: Coil Spacer
  • Rear Lift Method: None
  • Shocks Included: Yes
  • Front Lift Height: 2 Inch
  • Rear Lift Height: 0 Inch

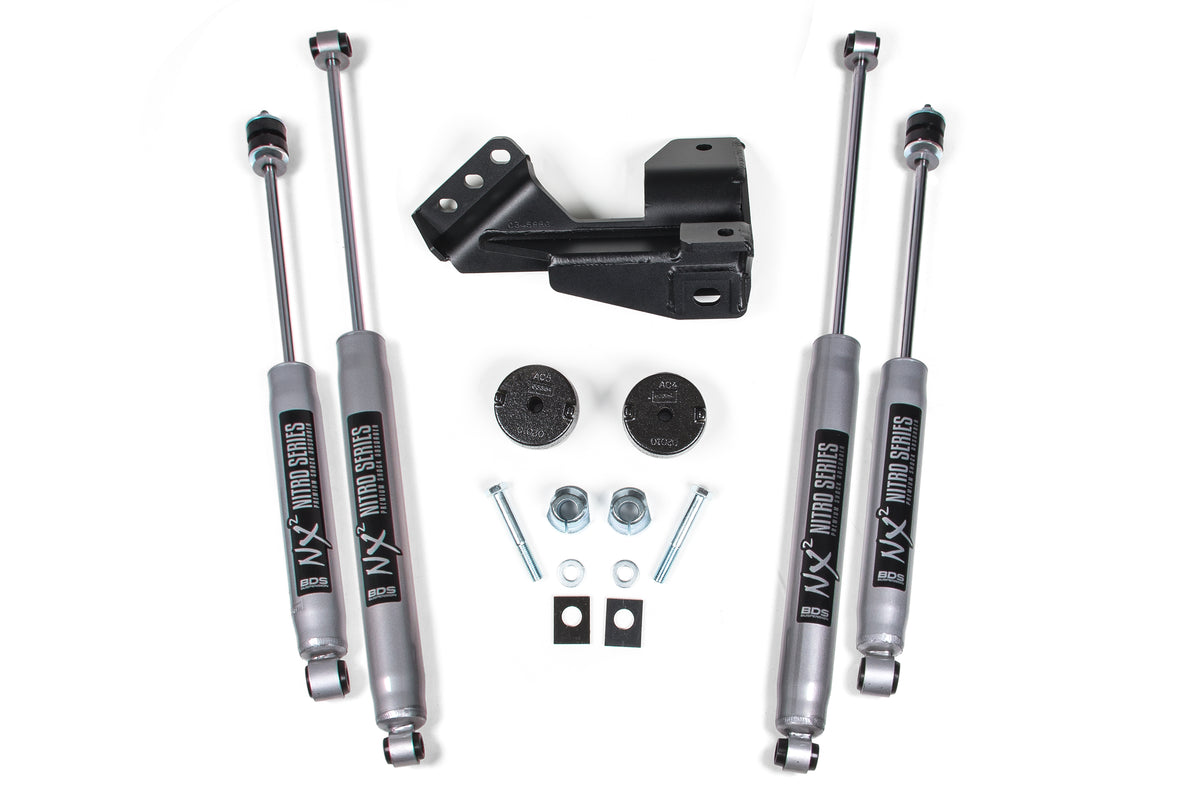

Kit Components:

  • Includes one BDS013202, 2017 Super Duty 2 Inch Front Spacer Box Kit, UPC Code 658848613090
  • Includes two BDS85710, Shock- 22.50 x 13.50 x 2-3/8 - S50/EB2, UPC Code 711745609518
  • Includes two BDS85717, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609556

Specifications

Brand BDS Suspension
Part Number BDS1519H
UPC 840416411379
Lift Height 2.0 Inch
Front Lift Height 2.0 Inch
Rear Lift Height 0.0 Inch
Drive 4WD
Tire Size 35 Inch
Shock Style NX2 Nitro Shocks
Shocks Included Yes
Finish Powdercoat
Color Silver
Sold As Kit
Country of Origin USA
Warranty Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes 3
Package Size (L x W x H) 19 x 12 x 6 in
23.5 x 3 x 3 in
23.5 x 3 x 3 in
Package Weight 44.35 lb

Watch the BDS Suspension Video

Fitment

  • 2017-2019 Ford F-250 Super Duty
  • 2017-2019 Ford F-250 Super Duty King Ranch
  • 2017-2019 Ford F-350 Super Duty King Ranch
  • 2017-2019 Ford F-250 Super Duty Lariat
  • 2017-2019 Ford F-350 Super Duty Lariat
  • 2017-2019 Ford F-250 Super Duty Platinum
  • 2017-2019 Ford F-350 Super Duty Platinum
  • 2017-2019 Ford F-250 Super Duty XL
  • 2017-2019 Ford F-350 Super Duty XL
  • 2017-2019 Ford F-250 Super Duty XLT
  • 2017-2019 Ford F-350 Super Duty XLT
  • 2018-2019 Ford F-250 Super Duty Limited
  • 2018-2019 Ford F-350 Super Duty Limited
