BDS Suspension 2.5 Inch Lift Kit Ford Ranger 19-23 4WD NX2 Nitro Shocks (BDS1546H)
Pickup currently unavailable at DEO In House Inventory
Properly level the front of your 2019-2023 Ford Ranger truck by installing this 2.5-inch leveling kit from BDS. Specially designed for the new Ranger, this 2.5 inch leveling kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.
To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets.
These brackets correct CV axle angle while allowing the use of the factory front skid plates.

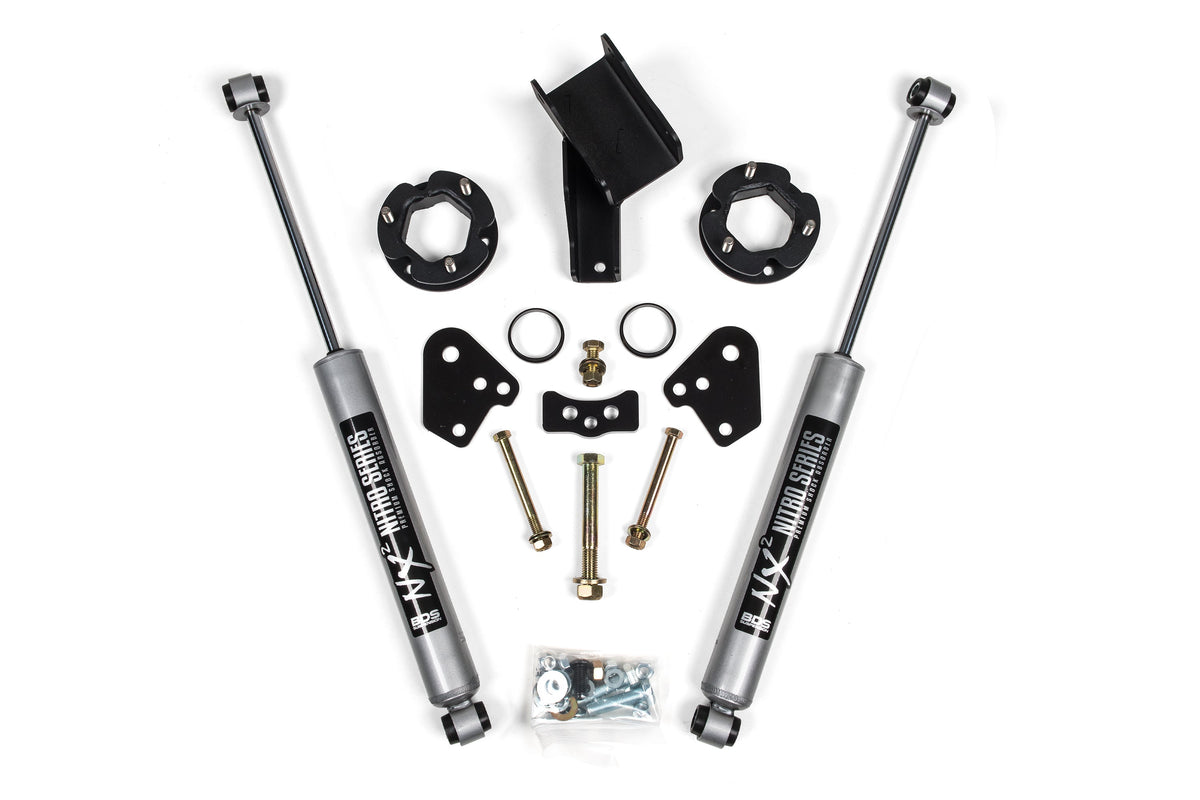

The lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation bracketsР’ and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2.5 inch leveling kit from BDS Suspension.
- Front Lift Method: Strut Spacer
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2.5 inch
- Rear Lift Height: 0 inch
- Aftermarket wheels must have a minimum of 93.1mm center hub bore.
- Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
- Strut disassembly required, high quality wall mounted strut compressor and skilled technichian recommended.
- Will NOT work on trucks equipped with cast steel steering knuckles.
- Wil NOT work with Tremor models.
- Easy, 100 percent Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Tire Size: 285 / 65 Wheel Diameter: 18 x 9
Kit Components:
- Includes one BDS013240, 2019 Ford Ranger 2.5 inch Box Kit, UPC Code 658848613175
- Includes two BDS85880, Shock- 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609952
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1546H |
| UPC | 840416411980 |
| Lift Height | 2.5 Inch |
| Front Lift Height | 2.5 Inch |
| Rear Lift Height | 0.0 Inch |
| Drive | 4WD |
| Shock Style | NX2 Nitro Shocks |
| Shocks Included | Yes |
| Finish | Powdercoat |
| Color | Silver |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 2 |
| Package Size (L x W x H) | 15 x 6 x 6 in 23.5 x 3 x 3 in |
| Package Weight | 24.2 lb |
Watch the BDS Suspension Video
Fitment
- 2019-2020 Ford Ranger
- 2019-2023 Ford Ranger Lariat
- 2019-2023 Ford Ranger XL
- 2019-2023 Ford Ranger XLT
