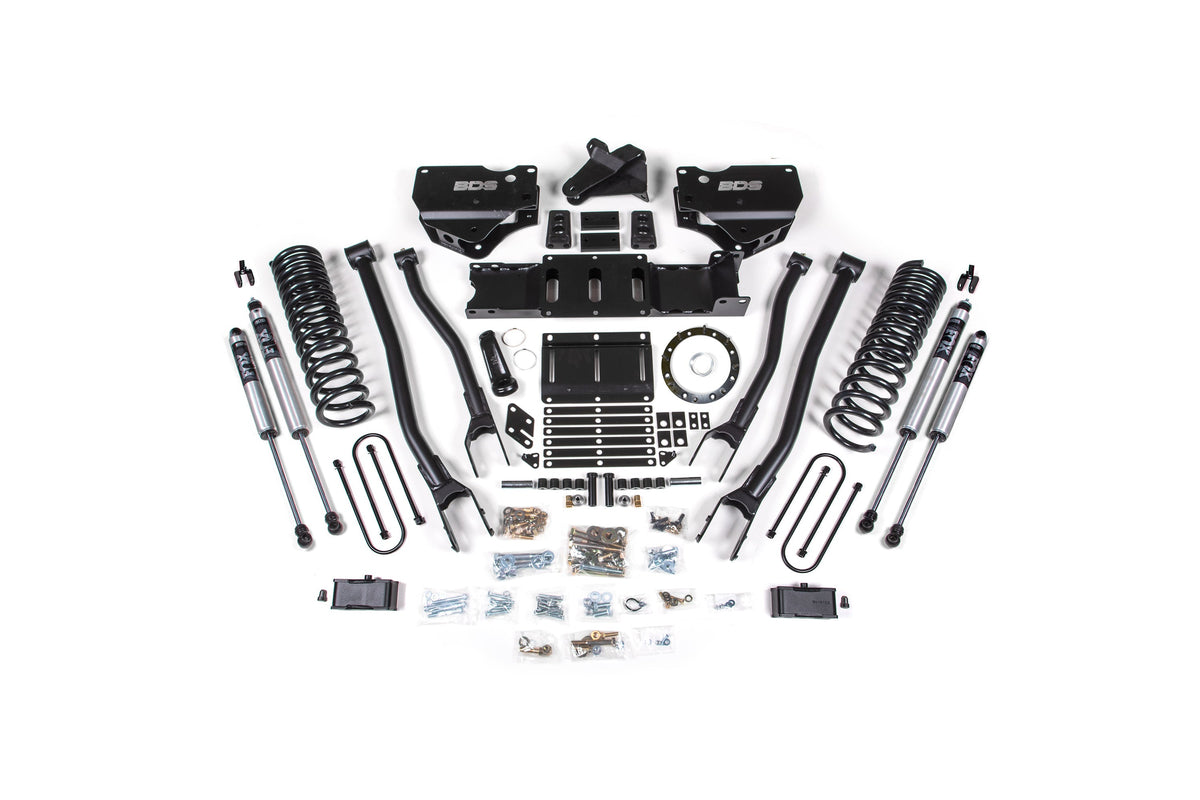

BDS Suspension 19-24 Ram 3500 4 Inch 4-Link Suspension Lift, 2 Inch Rear, Block, Diesel w/ overload, 8 bolt T-Case - Fox 2.5 Performance Elite Series R/r DSC Front, Fox 2.5 Performance Elite Series P/b DSC Rear BDS Suspension (BDS1673FPE)
Pickup currently unavailable at DEO In House Inventory
Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, dual rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 4.0 Inch
- Rear Lift Height: 2.0 Inch
- Fuel Type: Diesel
- Lift Height: 4.0 Inch
- Lift Type: 4-Link/Block
- Engine Years: 2019-2024
- Engine Manufacturer: Cummins
- Shocks Included: Yes
- Series: Performance Elite Series
- Shock Style: FOX 2.5 Performance Elite Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1673FPE |
| UPC | 840416406566 |
| Lift Height | 4.0 Inch |
| Front Lift Height | 4.0 Inch |
| Rear Lift Height | 2.0 Inch |
| Lift Type | 4-Link/Block |
| Drive | 4WD |
| Fuel Type | Diesel |
| Tire Size | 37 Inch |
| Shock Style | Fox 2.5 Performance Elite Shocks |
| Shocks Included | Yes |
| Engine | Cummins 2019-2024 |
| Finish | Powdercoat |
| Color | Black |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 326.55 lb |
Watch the BDS Suspension Video
Fitment
- 2019-2023 Ram 3500
- 2019-2024 Ram 3500 Big Horn
- 2019-2024 Ram 3500 Laramie
- 2019-2020 Ram 3500 Laramie Limited
- 2019-2020 Ram 3500 Laramie Longhorn
- 2019-2024 Ram 3500 Limited
- 2019-2022 Ram 3500 Lone Star
- 2019-2024 Ram 3500 SLT
- 2019-2024 Ram 3500 Tradesman
- 2021-2024 Ram 3500 Limited Longhorn
- 2024 Ram 3500 Special Service
