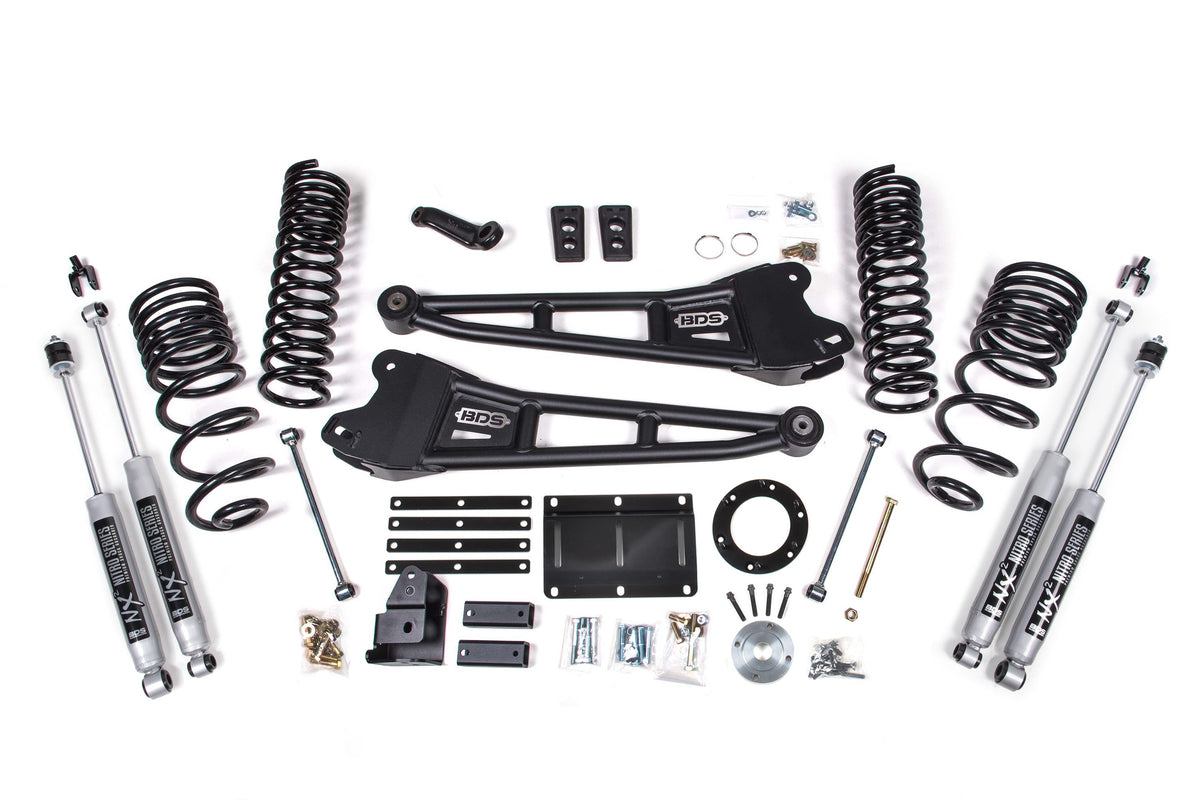

BDS Suspension 14-18 Ram 2500 5.5 Inch Radius Arm Suspension Lift, 4.5 Inch Rear, Spring, Gas w/ 6 bolt T-case - Fox 2.5 Performance Elite Series R/r Front, Fox 2.5 Performance Elite Series P/b Rear BDS Suspension (BDS2101FPE)
Pickup currently unavailable at DEO In House Inventory
Take your 2014-2018 RAM 2500 gas powered truck to the next level with a 5.5-inch lift kit with radius arm by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.
This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 5.5 Inch
- Rear Lift Height: 4.5 Inch
- Fuel Type: Gas
- Lift Height: 5.5 Inch
- Lift Type: Radius Arm
- Engine Years: 2014-2018
- Shocks Included: Yes
- Series: Performance Elite Series
- Shock Style: FOX 2.5 Performance Elite Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS2101FPE |
| UPC | 840416413144 |
| Lift Height | 5.5 Inch |
| Front Lift Height | 5.5 Inch |
| Rear Lift Height | 4.5 Inch |
| Lift Type | Radius Arm |
| Drive | 4WD |
| Fuel Type | Gas |
| Tire Size | 37 Inch |
| Shock Style | Fox 2.5 Performance Elite Shocks |
| Shocks Included | Yes |
| Engine | 2014-2018 |
| Finish | Powdercoat |
| Color | Black |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 339.15 lb |
Watch the BDS Suspension Video
Fitment
- 2014-2018 Ram 2500 Big Horn
- 2014-2018 Ram 2500 Outdoorsman
- 2014-2018 Ram 2500 ST
- 2014-2018 Ram 2500 SLT
- 2014-2018 Ram 2500 R/T
- 2014-2018 Ram 2500 Power Wagon
- 2014-2015 Ram 2500 Lone Star
- 2014-2018 Ram 2500 Laramie Longhorn
- 2014-2018 Ram 2500 Laramie Limited
- 2014-2018 Ram 2500 Laramie
- 2014-2018 Ram 2500 Tradesman
- 2015-2016 Ram 2500 Hemi Sport
- 2016-2018 Ram 2500 Limited
- 2017 Ram 2500 Laramie HD
- 2017-2018 Ram 2500 SLT HD
- 2017-2018 Ram 2500 Sport
- 2018 Ram 2500 Limited Tungsten
- 2018 Ram 2500 Limited Tungsten HD
