BDS Suspension 14-18 Chevrolet Silverado 1500 - GMC Sierra 1500 4WD 6.5 Inch Suspension Lift Kit (Cast Steel), 4 Inch Rear Lift, Block, NX2 Nitro Series Shocks BDS Suspension (BDS706H)
Pickup currently unavailable at DEO In House Inventory

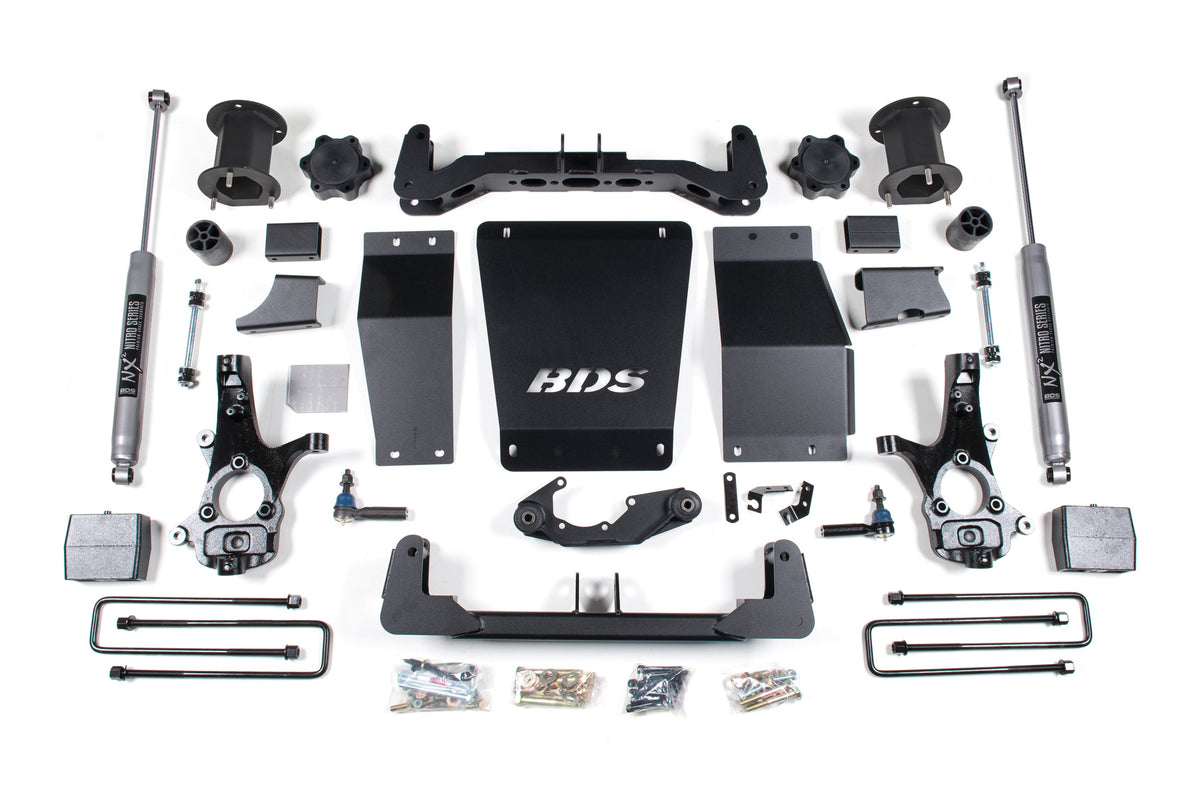

The BDS 6.5-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.
Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 6.5 Inch
- Rear Lift Height: 4.0 Inch
- Lift Height: 6.5 Inch
- Lift Type: Block
- Material: Cast Steel
- Engine Years: 2014-2018
- Shocks Included: Yes
- Series: NX2 Nitro Series
- Shock Style: NX2 Nitro Series Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS706H |
| UPC | 840416439915 |
| Lift Height | 6.5 Inch |
| Front Lift Height | 6.5 Inch |
| Rear Lift Height | 4.0 Inch |
| Lift Type | Block |
| Drive | 4WD |
| Tire Size | 35 Inch |
| Shock Style | NX2 Nitro Series Shocks |
| Shocks Included | Yes |
| Engine | 2014-2018 |
| Finish | Powdercoat |
| Color | Black |
| Material | Cast Steel |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 218.35 lb |
Watch the BDS Suspension Video
Fitment
- 2014-2018 GMC Sierra 1500
- 2014-2018 GMC Sierra 1500 Denali
- 2014-2018 Chevrolet Silverado 1500 High Country
- 2014-2018 Chevrolet Silverado 1500 LT
- 2014-2018 Chevrolet Silverado 1500 LTZ
- 2014-2018 GMC Sierra 1500 SLE
- 2014-2018 GMC Sierra 1500 SLT
- 2014-2018 Chevrolet Silverado 1500 WT
- 2015-2018 Chevrolet Silverado 1500 LS
- 2015-2018 Chevrolet Silverado 1500 SSV
- 2016-2018 Chevrolet Silverado 1500 Custom
