BDS Suspension 09-13 Dodge Power Wagon 4 Inch Lift Kit Block w/4 Inch Axle - NX2 Nitro Series Shocks BDS Suspension (BDS665H)
Pickup currently unavailable at DEO In House Inventory
Built to outperform, BDS Suspension engineered a 4-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 Power Wagon that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

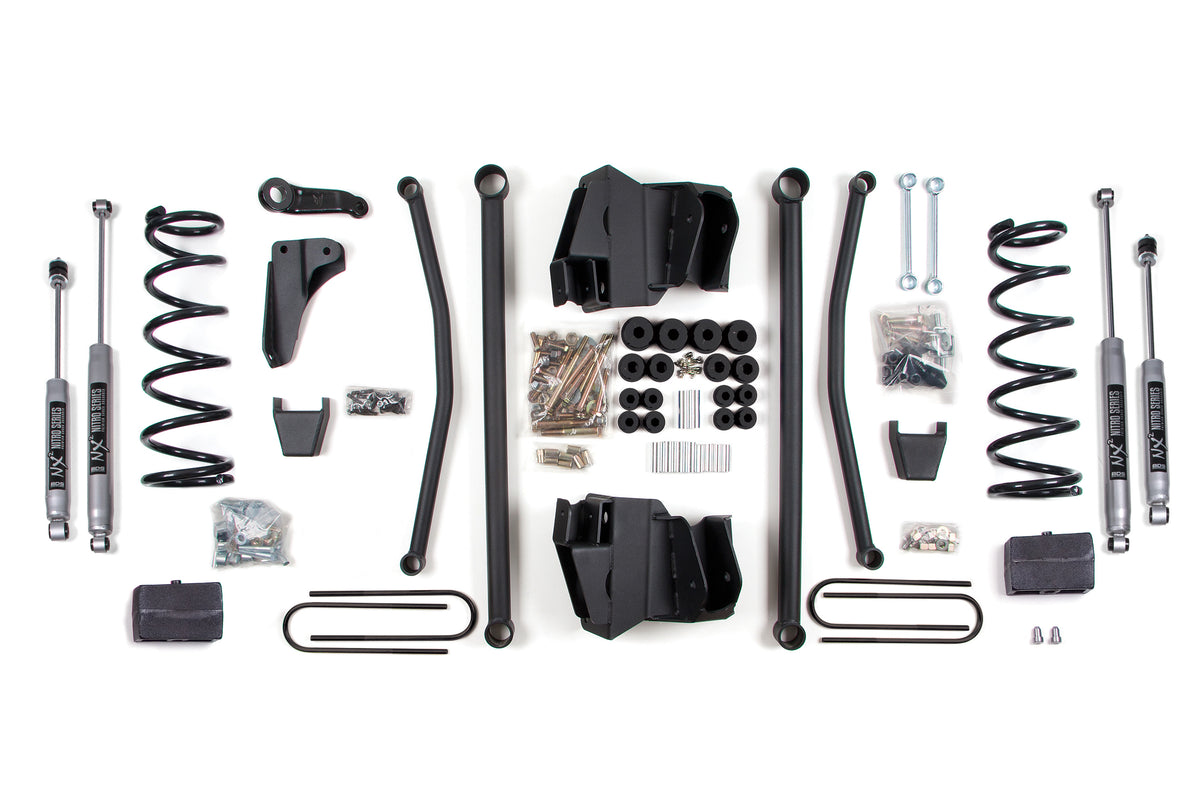

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.
This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 4.0 Inch
- Lift Height: 4.0 Inch
- Lift Type: Block
- Engine Years: 2009-2013
- Shocks Included: Yes
- Series: NX2 Nitro Series
- Shock Style: NX2 Nitro Series Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS665H |
| UPC | 840416419382 |
| Lift Height | 4.0 Inch |
| Front Lift Height | 4.0 Inch |
| Lift Type | Block |
| Drive | 4WD |
| Tire Size | 37 Inch |
| Shock Style | NX2 Nitro Series Shocks |
| Shocks Included | Yes |
| Engine | 2009-2013 |
| Finish | Powdercoat |
| Color | Black |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 285.5 lb |
Watch the BDS Suspension Video
Fitment
- 2009-2010 Dodge Ram 2500
- 2009 Dodge Ram 3500
- 2009-2010 Dodge Ram 2500 Power Wagon
- 2011 Ram 2500
- 2011-2012 Ram 3500 Laramie
- 2011-2013 Ram 2500 Power Wagon
- 2011-2012 Ram 3500 SLT
- 2011-2012 Ram 3500 ST
- 2011 Ram 3500 SXT
- 2012-2013 Ram 2500 Laramie
- 2012-2013 Ram 2500 Laramie Longhorn
- 2012-2013 Ram 2500 Outdoorsman
- 2012-2013 Ram 2500 R/T
- 2012-2013 Ram 2500 SLT
- 2012-2013 Ram 2500 ST
- 2013 Ram 2500 Big Horn
- 2013 Ram 2500 Lone Star
- 2013 Ram 2500 SXT
- 2013 Ram 2500 Tradesman
