BDS Suspension 08-10 Ford F-250/F-350 4WD 6 Inch Radius Arm Suspension Lift Kit, 3 Inch Rear Lift, Block, Diesel, With Overload - Fox 2.5 Performance Elite Series C/O Front, Fox 2.0 IFP Performance Series Aux Front, Fox 2.0 IFP Performance (BDS1954FPE)
Pickup currently unavailable at DEO In House Inventory

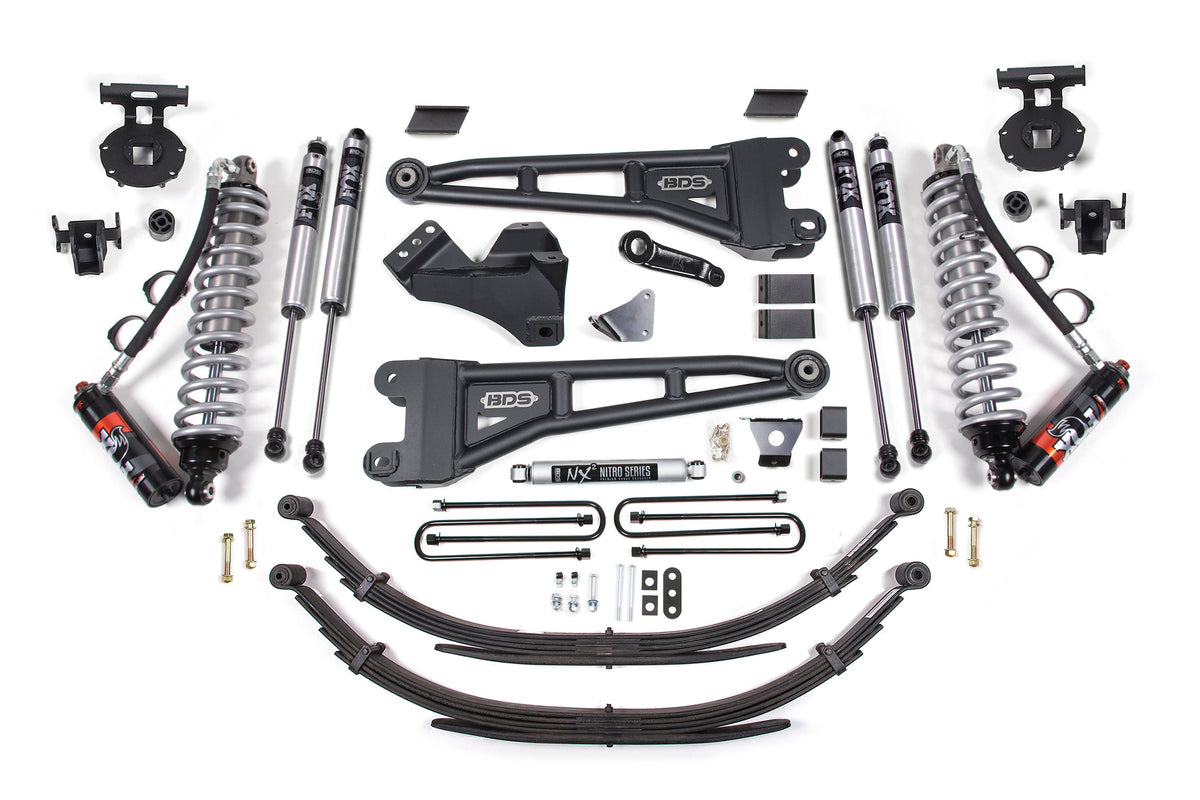

Go farther with your Ford truck, upgrade your 2008-2010 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit with FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks.
In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 6.0 Inch
- Rear Lift Height: 3.0 Inch
- Fuel Type: Diesel
- Lift Height: 6.0 Inch
- Lift Type: Radius Arm/Block
- Engine Years: 2008-2010
- Engine Manufacturer: Powerstroke
- Shocks Included: Yes
- Series: Performance Elite Series
- Shock Style: FOX 2.5 Performance Elite Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS1954FPE |
| UPC | 840416412000 |
| Lift Height | 6.0 Inch |
| Front Lift Height | 6.0 Inch |
| Rear Lift Height | 3.0 Inch |
| Lift Type | Radius Arm/Block |
| Drive | 4WD |
| Fuel Type | Diesel |
| Tire Size | 37 Inch |
| Shock Style | Fox 2.5 Performance Elite Shocks |
| Shocks Included | Yes |
| Engine | Powerstroke 2008-2010 |
| Finish | Powdercoat |
| Color | Black |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 266.15 lb |
Watch the BDS Suspension Video
Fitment
- 2008-2010 Ford F-250 Super Duty
- 2008-2010 Ford F-350 Super Duty
- 2008-2009 Ford F-250 Super Duty FX4
- 2008-2009 Ford F-350 Super Duty FX4
- 2008-2010 Ford F-250 Super Duty Harley-Davidson Edition
- 2008-2010 Ford F-350 Super Duty Harley-Davidson Edition
- 2008-2010 Ford F-250 Super Duty King Ranch
- 2008-2010 Ford F-350 Super Duty King Ranch
- 2008-2010 Ford F-250 Super Duty Lariat
- 2008-2010 Ford F-350 Super Duty Lariat
- 2008-2010 Ford F-250 Super Duty XL
- 2008-2010 Ford F-350 Super Duty XL
- 2008-2010 Ford F-250 Super Duty XLT
- 2008-2010 Ford F-350 Super Duty XLT
- 2009-2010 Ford F-250 Super Duty Cabela's
- 2009-2010 Ford F-350 Super Duty Cabela's
