BDS Suspension 07-14 Chevrolet SUV - GMC SUV 4WD 4.5 Inch Suspension Lift Kit, 3 Inch Rear Lift, Spacer, Fox 2.0 IFP Performance Series Shocks BDS Suspension (BDS906FS)
Pickup currently unavailable at DEO In House Inventory

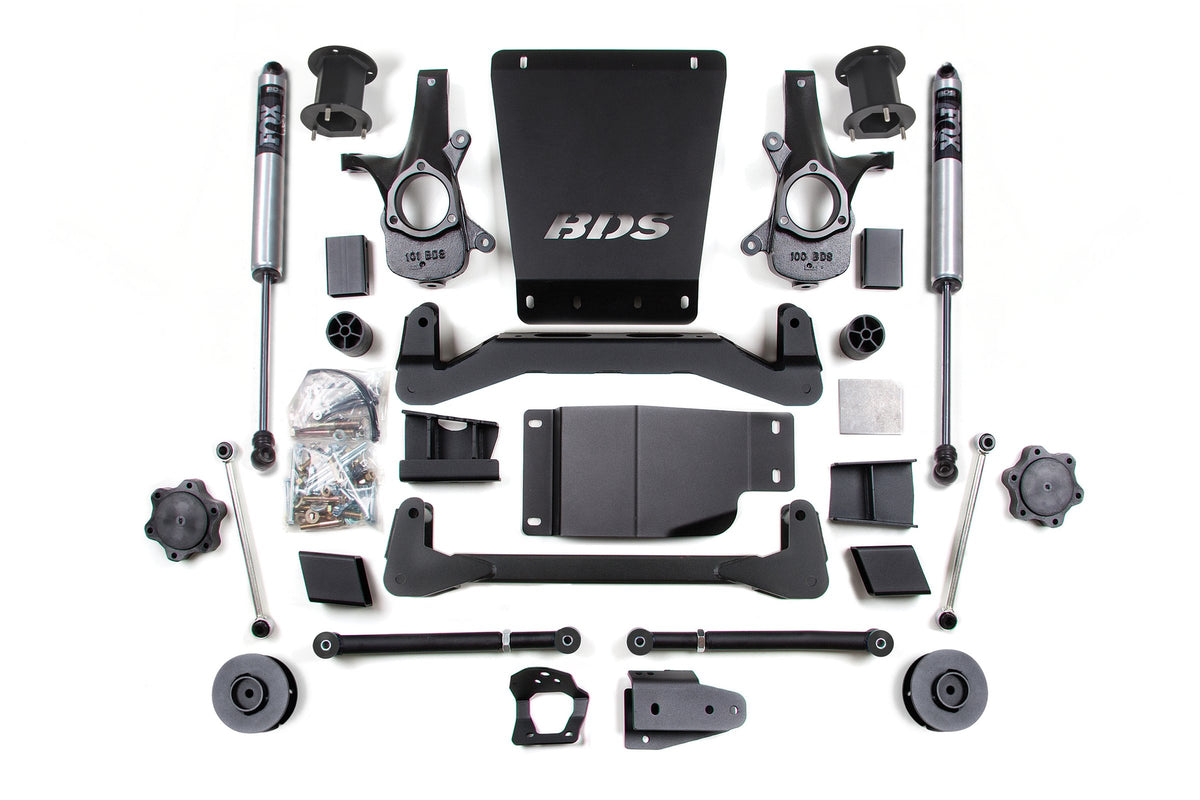

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4.5-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 4.5
- Rear Lift Height: 3.0 Inch
- Lift Height: 3.0 Inch
- Lift Type: Spacer
- Material: Steel
- Engine Years: 2007-2014
- Shocks Included: Yes
- Series: Performance Series
- Shock Style: FOX 2.0 Performance Series Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS906FS |
| UPC | 840416439885 |
| Lift Height | 3.0 Inch |
| Front Lift Height | 4.5 |
| Rear Lift Height | 3.0 Inch |
| Lift Type | Spacer |
| Drive | 4WD |
| Tire Size | 33X12.5 |
| Shock Style | FOX 2.0 Performance Series Shocks |
| Shocks Included | Yes |
| Engine | 2007-2014 |
| Finish | Powdercoat |
| Color | Black |
| Material | Steel |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 40 x 36 in |
| Package Weight | 185.45 lb |
Watch the BDS Suspension Video
Fitment
- 2007-2014 Chevrolet Suburban 1500 LT
- 2007-2014 Chevrolet Tahoe PPV
- 2007-2014 GMC Yukon XL 1500 SLT
- 2007-2014 GMC Yukon XL 1500 Denali
- 2007-2012 Chevrolet Avalanche LS
- 2007-2014 Chevrolet Suburban 1500 LS
- 2007-2014 Chevrolet Tahoe LS
- 2007-2012 Chevrolet Avalanche LT
- 2007-2014 GMC Yukon XL 1500 SLE
- 2007-2014 Chevrolet Tahoe LT
- 2007-2012 Chevrolet Avalanche LTZ
- 2007-2014 Chevrolet Suburban 1500 LTZ
- 2007-2014 Chevrolet Tahoe LTZ
- 2008-2013 Chevrolet Tahoe Hybrid
- 2012-2014 Chevrolet Tahoe SSV
- 2013 Chevrolet Avalanche Black Diamond LT
- 2013 Chevrolet Avalanche Black Diamond LTZ
- 2013 Chevrolet Avalanche Black Diamond LS
