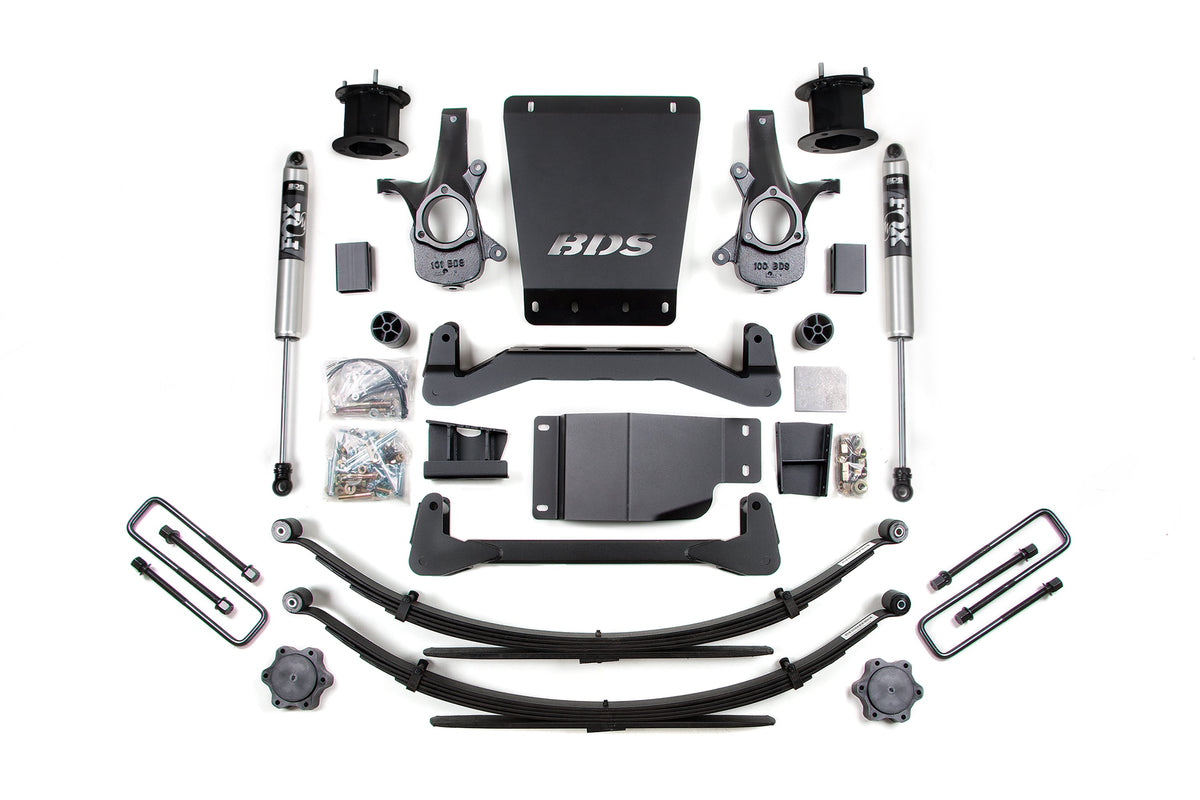

BDS Suspension 07-13 Chevrolet Silverado 1500 - GMC Sierra 1500 4WD 4.5 Inch Suspension Lift Kit, 4 Inch Rear Lift, Leaf Spring, NX2 Nitro Series Shocks BDS Suspension (BDS703H)
Pickup currently unavailable at DEO In House Inventory
Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 4.5-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles.
These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.
Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 4.5 Inch
- Rear Lift Height: 4.0 Inch
- Lift Height: 4.5 Inch
- Lift Type: Leaf Spring
- Engine Years: 2007-2013
- Shocks Included: Yes
- Series: NX2 Nitro Series
- Shock Style: NX2 Nitro Series Shocks
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS703H |
| UPC | 840416438437 |
| Lift Height | 4.5 Inch |
| Front Lift Height | 4.5 Inch |
| Rear Lift Height | 4.0 Inch |
| Lift Type | Leaf Spring |
| Drive | 4WD |
| Tire Size | 33 Inch |
| Shock Style | NX2 Nitro Series Shocks |
| Shocks Included | Yes |
| Engine | 2007-2013 |
| Finish | Powdercoat |
| Color | Black |
| Sold As | Kit |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Package Size (L x W x H) | 48 x 42 x 24 in |
| Package Weight | 320.9 lb |
Watch the BDS Suspension Video
Fitment
- 2007-2013 GMC Sierra 1500 Denali
- 2007-2013 Chevrolet Silverado 1500 LS
- 2007-2013 Chevrolet Silverado 1500 LT
- 2007-2013 Chevrolet Silverado 1500 LTZ
- 2007-2013 GMC Sierra 1500 SL
- 2007-2013 GMC Sierra 1500 SLE
- 2007-2013 GMC Sierra 1500 SLT
- 2007-2013 Chevrolet Silverado 1500 WT
- 2007-2013 GMC Sierra 1500 WT
- 2009-2013 Chevrolet Silverado 1500 Hybrid
- 2009-2013 GMC Sierra 1500 Hybrid
- 2010-2013 Chevrolet Silverado 1500 XFE
- 2010-2013 GMC Sierra 1500 XFE
