BDS Suspension 0.75 Inch Lift Kit Jeep Commanche MJ 86-91 With NX2 Shocks BDS Suspension (BDS484H)
Pickup currently unavailable at DEO In House Inventory
Raise up your 1986-1991 Jeep Commanche MJ by installing this 3/4-inch lift kit from BDS Suspension. Specially designed for the Commanche, this 3/4 inch lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

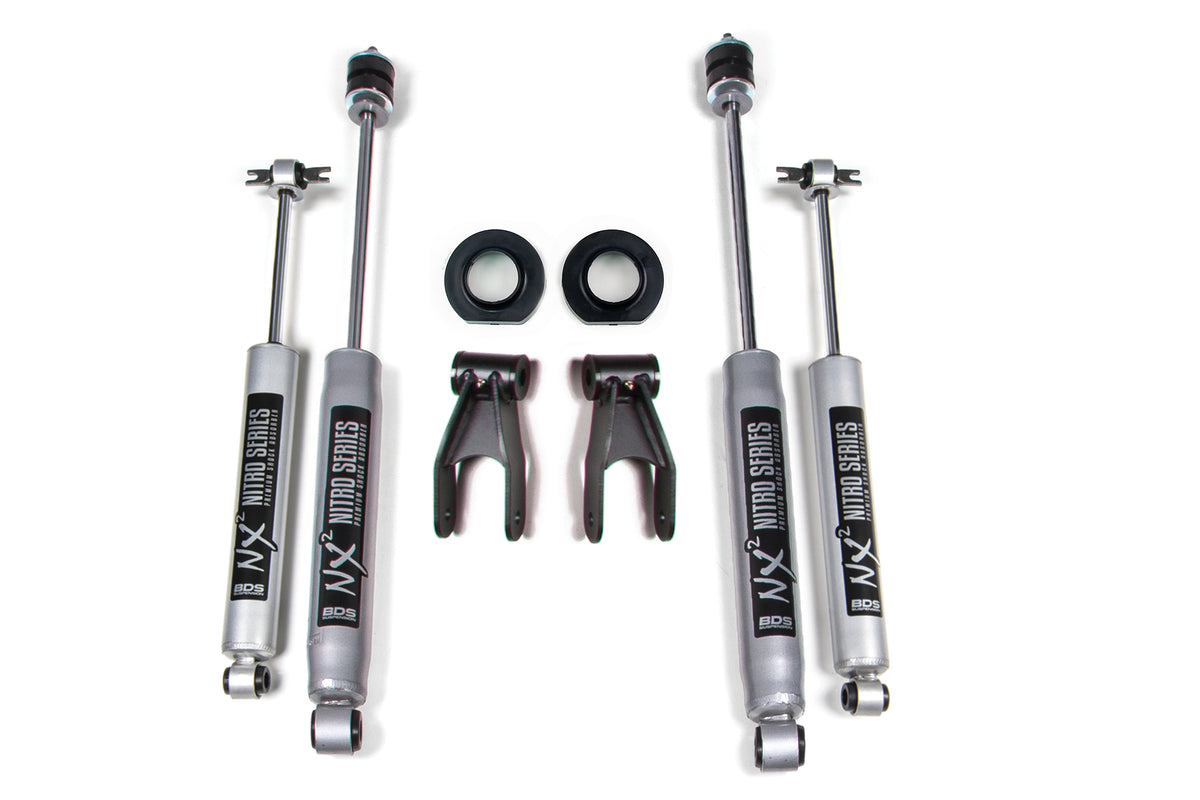

The lift kit includes two front 3/4 inch urethane coil spring spacers, rear heavy duty boomerang shackle with greaseable urethane bushings and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your Cherokee XJ the extra boost with this 3/4-inch lift kit from BDS Suspension.
- Front Lift Method: Coil Spacer
- Rear Lift Method: Shackle
- Shocks Included: Yes
- Front Lift Height: 0.75 inch
- Rear Lift Height: 1 inch
- Front urethane coil spacer maintains factory ride
- Easy, 100 percent Bolt-on installation
- NX2 gas shocks for improved damping
- Allows clearance for 30 inch tires
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Kit Components
Includes one BDS124107, Jeep XJ 1in Rear Shackle Kit, UPC Code 711745604889
Includes one BDS174101, Jeep 3/4 Inch Coil Sprng Spacer (pair)-bulk, UPC Code 711745608160
Includes two BDS85960, Shock- 20.40 x 12.65 x 2-3/8 - S1/BP7, UPC Code 711745610118
Includes two BDS85972, Shock- 21.70 x 13.40 x 2 - BP18/EB1, UPC Code 711745610217
Kit Components:
Includes one BDS124107, Jeep XJ 1in Rear Shackle Kit, UPC Code 711745604889
Includes one BDS174101, Jeep 3/4 Inch Coil Sprng Spacer (pair)-bulk, UPC Code 711745608160
Includes two BDS85960, Shock- 20.40 x 12.65 x 2-3/8 - S1/BP7, UPC Code 711745610118
Includes two BDS85972, Shock- 21.70 x 13.40 x 2 - BP18/EB1, UPC Code 711745610217
Specifications
| Brand | BDS Suspension |
|---|---|
| Part Number | BDS484H |
| UPC | 840416417906 |
| Lift Height | .75 Inch |
| Front Lift Height | .75 Inch |
| Rear Lift Height | 1.0 Inch |
| Tire Size | 30 Inch |
| Shock Style | NX2 Nitro Shocks |
| Shocks Included | Yes |
| Finish | Powdercoat |
| Color | Silver |
| Sold As | Kit |
| Installation Time | 4 Hours |
| Country of Origin | USA |
| Warranty | Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts |
| Number of Boxes | 4 |
| Package Size (L x W x H) | 11 x 7 x 2 in 6 x 5 x 5 in 23.5 x 3 x 3 in 23.5 x 3 x 3 in |
| Package Weight | 28.7 lb |
Installation Instructions (PDF)
Watch the BDS Suspension Video
Fitment
- 1986-1992 Jeep Comanche
- 1986 Jeep Comanche Custom
- 1986 Jeep Comanche X
- 1986 Jeep Comanche XLS
- 1987-1991 Jeep Comanche
- 1987-1988 Jeep Comanche Chief
- 1987-1988 Jeep Comanche Laredo
- 1987-1991 Jeep Comanche Pioneer
- 1988-1991 Jeep Comanche Eliminator
