SKU: BDS484FS

BDS Suspension 0.75 Inch Lift Kit Jeep Commanche MJ 86-91 With Fox Shocks BDS Suspension (BDS484FS)

Name: BDS Suspension 0.75 Inch Lift Kit Jeep Commanche MJ 86-91 With Fox Shocks BDS Suspension (BDS484FS)
Brand: BDS Suspension
SKU: BDS484FS
Price: 987.70 USD
Availability: OutOfStock

$987.70

By BDS Suspension

Raise up your 1986-1991 Jeep Commanche MJ by installing this 3/4-inch lift kit from BDS Suspension. Specially designed for the Commanche, this 3/4 inch lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

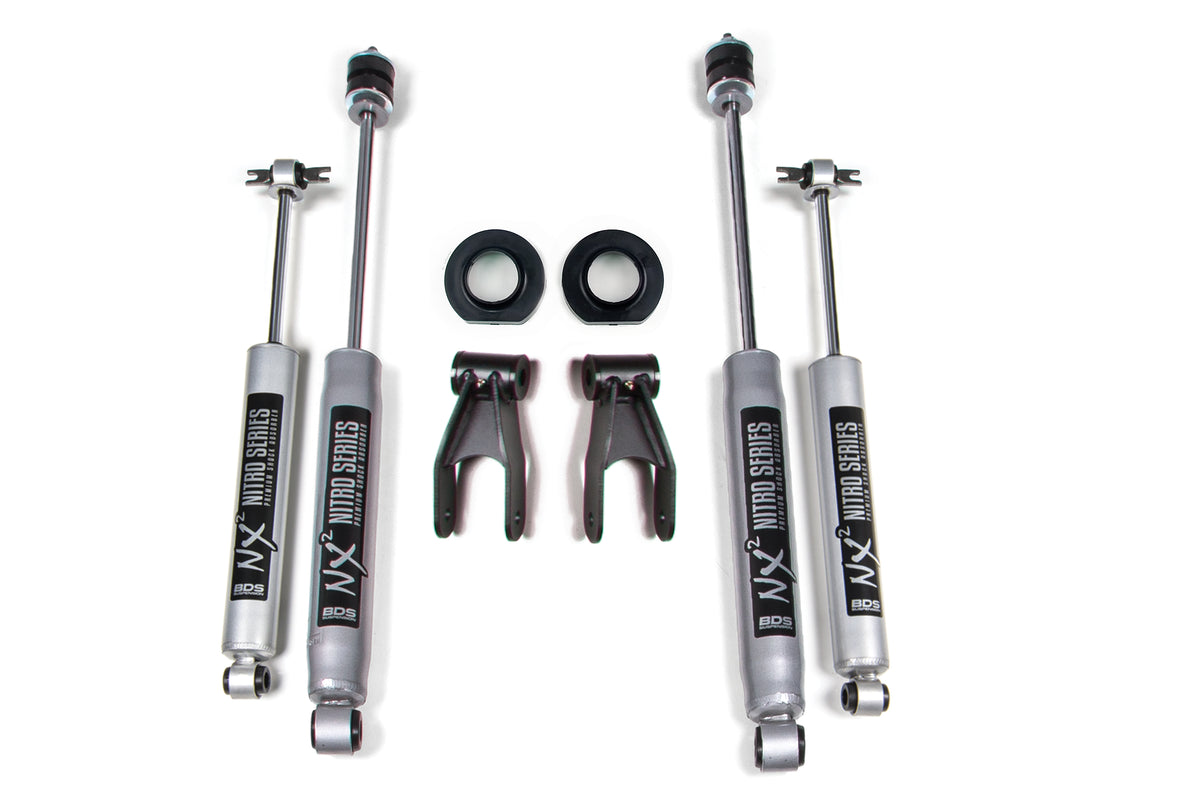

The lift kit includes two front 3/4 inch urethane coil spring spacers, rear heavy duty boomerang shackle with greaseable urethane bushings and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your Cherokee XJ the extra boost with this 3/4-inch lift kit from BDS Suspension.

Front Lift Method: Coil Spacer
Rear Lift Method: Shackle
Shocks Included: Yes
Front Lift Height: 0.75 inch
Rear Lift Height: 1 inch

Front urethane coil spacer maintains factory ride
Easy, 100 percent Bolt-on installation
NX2 gas shocks for improved damping
Allows clearance for 30 inch tires

Shock Option
NX2 Nitro Series

Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

Kit Components:

Includes one BDS124107, Jeep XJ 1in Rear Shackle Kit, UPC Code 711745604889
Includes one BDS174101, Jeep 3/4 Inch Coil Sprng Spacer (pair)-bulk, UPC Code 711745608160
Includes two FOX98224972, Fox 2.0 Shock 22.15 x 14.55 x 2-BP18/EB1
Includes two FOX98224979, Fox 2.0 Shock 22.95 x 14.35 x 2- S50/EB1

Specifications

Brand	BDS Suspension
Part Number	BDS484FS
UPC	840416417890
Lift Height	.75 Inch
Front Lift Height	.75 Inch
Rear Lift Height	1.0 Inch
Tire Size	30 Inch
Shock Style	Fox 2.0 Performance Shocks
Shocks Included	Yes
Finish	Anodized
Color	Clear
Sold As	Kit
Installation Time	4 Hours
Country of Origin	USA
Warranty	Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Number of Boxes	4
Package Size (L x W x H)	11 x 7 x 2 in 6 x 5 x 5 in 29 x 3 x 3 in 29 x 3 x 3 in
Package Weight	29.5 lb
